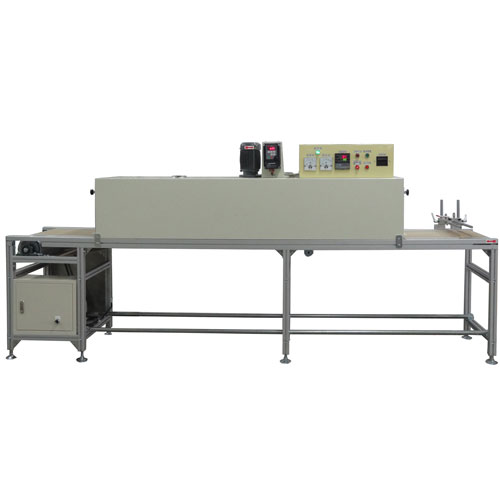

Conveyor Oven

WE-9118

Conveyor Oven

tunnel oven, ir dryer , heater dryer

WE-9118

Applicable for

Suitable for silk-screen printing, sticker labors, metal, glasses, arcly, PC board, papers, PV, PVC, ABS or PS products to drying.

Add to inquiry list
Inquiry Form

Product Features

1. Feeding section 0.6m → Drying section 4m → Receiving section 1.2m, total 5.8m
2. Belt conveyor 600W*5800L*750H 1 set
3. Transmission motor is TECO 1/2HP 220V+ turbine reducer, with TECO inverter 1/2HP speed regulation
4. Conveyor belt is imported PVC 2PLY green belt; belt width 600mm
5. Body material is SS41*2.0mm painted; tripod is adjusted to 5 points to adjust the foot hoof and movable wheel
6. Transmission wheel is 165Ø*600L*1 set
7. Drying furnace: 600W*4000L*500H One set
8. The outer material of the furnace is SS41*1.6mm painted; the inner material is 1.6mm galvanized plate
9. The inner material is filled with insulation cotton, and the insulation thickness is 50mm
10. Heating method: infrared silicon heat pipe heating, each electric heater is 0.8KW*12 sets, a total of 9.6KW (26 amps)
11. The furnace temperature is room temperature~MAX.70°C
12. The circulation fan is 1/4HP motor*71/2" fan*2 sets
13. The temperature control is a Taiwan-made temperature control table, ON/OFF automatic temperature control
14. Main power protection switch, ammeter, heating switch and circulation fan switch
15. Drying furnace door, adjustable height 30-350mm, add a 4" exhaust hole on the furnace
16. Total power: 40 amps*220V*3 phases

Fully customized production: conveyor belt length, width, baking furnace length can all be customized according to actual needs.
