Screen Printing Machine

For Cylinderal / Curved Objects Screen Printing Machine

silk screen print, printing squeegee, screen stencil, curved print, Automatic alignment

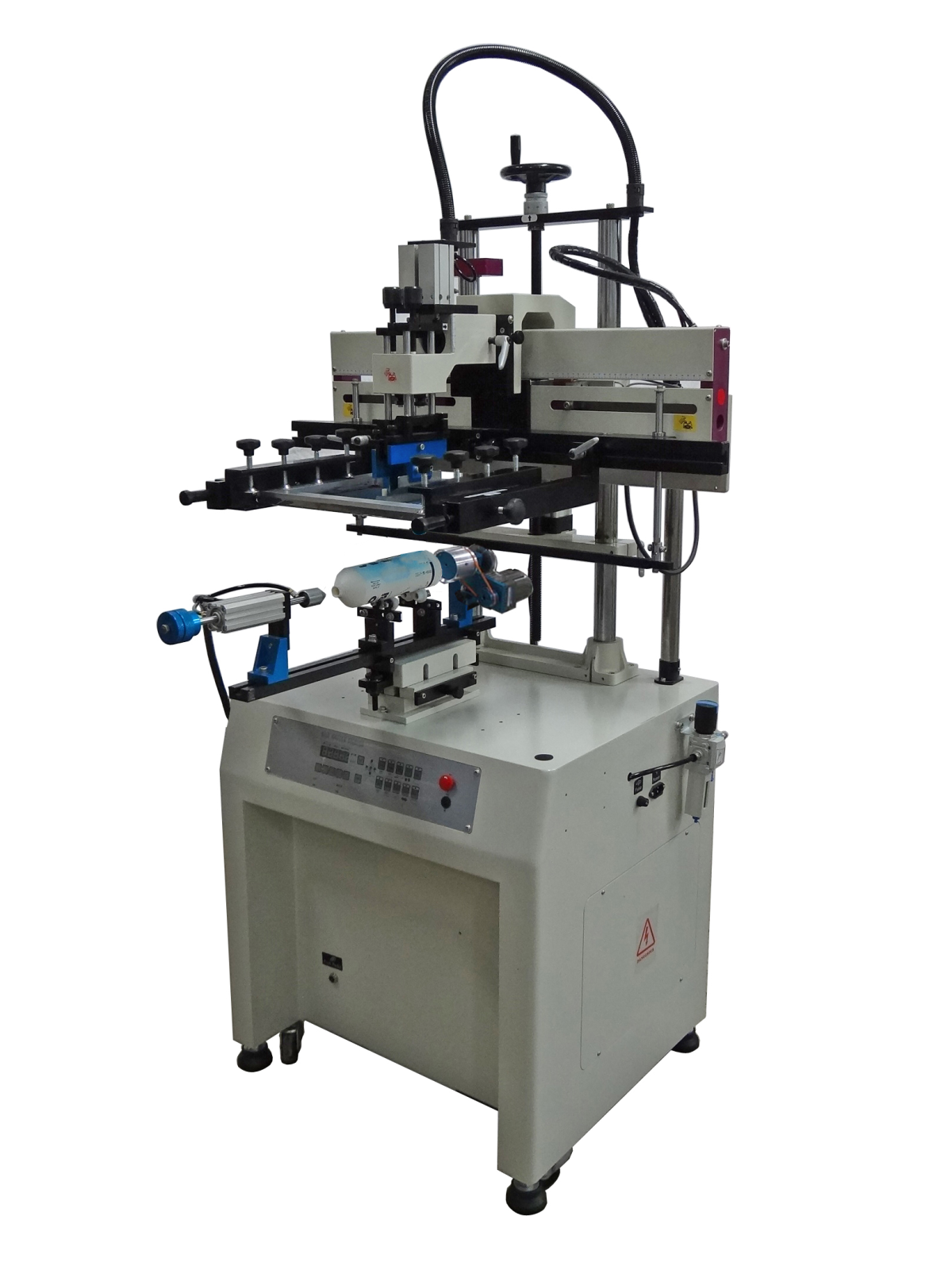

WE-500C1

Screen Printing Machine

For Cylinderal / Curved Objects Screen Printing Machine

silk screen print, printing squeegee, screen stencil, curved print, Automatic alignment

WE-500C1

Applicable for

Suitable for any cylinderal, oval, round and cone surface objects such as, shampoo bottles, milk bottles, cosmetic bottles, drums, cups, pens, cans and other containers, etc.

Add to inquiry list
Inquiry Form

Product Features

The control system adopts a digital microcomputer control system, which is easy to operate and contains a fault display system, making maintenance easier.
Pneumatic parts are made of Taiwan standard parts, high function and low failure rate make the machine performance more superior.
The transmission system adopts Taiwan-made bearings and shafts, which are wear-resistant and have a long service life.
The printing method adopts a tooth-row linkage system, which ensures accurate color registration, smooth printing and reduces the printing defect rate.


Mode WE-500C1
Pringing color 1
Operation interface membrane switch or HMI
Max, frame size 680*450
Max printing area 200 x 400 φ120
Screen vertical adjustable range 110
Table vertical stroke 150
Max. printing stroke 500
Capacity pre hour 600 ~ 1,800
Machine Dimensions 950 x 950 x 1,650 (mm)
Net weight (kg) 215 kg
Print Head width 90
Print head vertical stroke x
squeegee vertical stroke 50
effictive length of rack 600
Print head center distance 175
Steel table dimensions L600*W680*H630mm
Screen vertical shaft diameter ∮40mm
Input power Single phase AC110V or 220V 5A 50~60Hz
Air source 6kg/cm2
Control panel height from floor 650
Jig center height from floor (lowered position) fixed 920mm


  • Model: WE-500C1
    Maximum printing area: 200 x 400 φ120
    Output / hour: 600 ~ 1,800
    Machine dimensions (L x W x H): 950 x 950 x 1,650 (mm)
    Net weight: 215 kg
    WE-250C1, 400C1, 500C1 are equipped with a motor-rotating automatic positioning system, which can easily complete accurate color registration printing operations.
    The positioning device includes front-to-back, left-to-right, and up-and-down fine-tuning devices, which can easily achieve accurate color registration and improve production quality.
