The control system adopts a digital microcomputer control system, which is easy to operate and contains a fault display system, making maintenance easier.
Pneumatic parts are made of Taiwan standard parts, high function and low failure rate make the machine performance more superior.
The transmission system adopts Taiwan-made bearings and shafts, which are wear-resistant and have a long service life.
The printing method adopts a tooth-row linkage system, which ensures accurate color registration, smooth printing and reduces the printing defect rate.

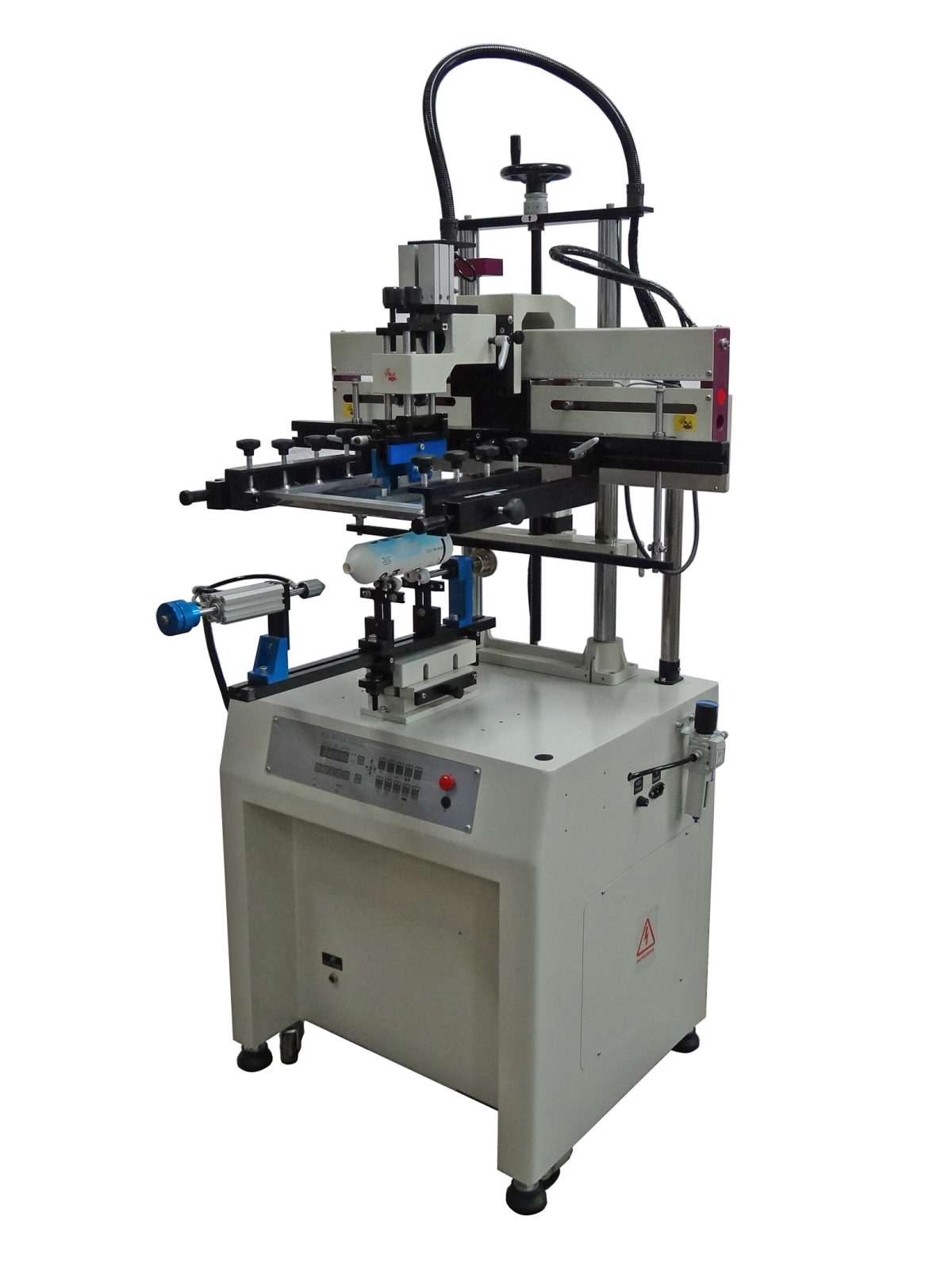

| Mode | WE-500C |
| Pringing color | 1 |
| Operation interface | membrane switch or HMI |
| Max, frame size | 680*450 |
| Max printing area | 200 x 400 φ120 |
| Screen vertical adjustable range | 110 |
| Table vertical stroke | 150 |
| Max. printing stroke | 500 |
| Capacity pre hour | 600 ~ 1,800 |
| Machine Dimensions | 950 x 950 x 1,650 (mm) |
| Net weight (kg) | 215 kg |
| Print Head width | 90 |
| Print head vertical stroke | x |
| squeegee vertical stroke | 50 |
| effictive length of rack | 600 |
| Print head center distance | 175 |
| Steel table dimensions | L600*W680*H630mm |
| Screen vertical shaft diameter | ∮40mm |
| Input power | Single phase AC110V or 220V 5A 50~60Hz |
| Air source | 6kg/cm2 |
| Control panel height from floor | 650 |
| Jig center height from floor (lowered position) | fixed 920mm |
 |
|
