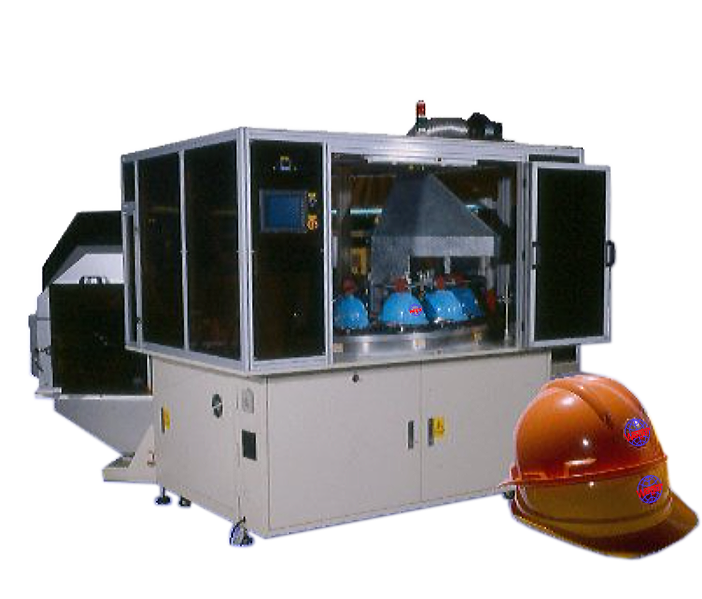

It is assembled using 4 horizontal ink cup pad printing machines.

Imported ink cup 90Ø, tinplate can also be used, and 90Ø ceramic ink cup can be purchased separately for replacement.
Manual filling → Manual material removal (safety helmet printing).
The machine combination can be used for whole printing, 1-4 color color matching, all in one go.
Simple hot air can be used to dry the color during the color setting, making it convenient to do the color setting once without sticking.
Infrared hot air drying oven device helps to dry the workpiece.
The CNC fixture is movable and can be installed in the front, back, left, and right directions to match the color and change the angle without using any tools.
The flame treatment uses PE material, the ink is easy to adhere, and the hot air is discharged by the exhaust fan.
The machine is dust-proof packaged to prevent dust from falling and improve printing quality.
The human-machine interface electronic control can independently control one machine or multiple machines in a line. It also has a machine fault display and is easy to operate.
The printing speed depends on the size of the pattern and the loading and unloading of materials, and can produce 300-600 helmets per hour.
Special sensing device: when the operator takes or changes the workpiece, the machine will not start until the operator takes his hands off the machine, thus protecting the operator's safety.
