Manual filling → divider moves to the printing area for printing → printing → manual removal.
Adopt Taiwan-made pneumatic components and imported ink cups, stable quality, save ink, save solvent, easy to clean, no odor, uniform printing color, environmental protection, and increased production capacity.
PLC programmable and HMI human-machine interface, printing can control four-stage dwell time, maintenance is more convenient.
The lighted device gives a clear view of the printing quality.
Patented scraping mechanism, stable, smooth and clean.
It can be printed in two colors or in single color.

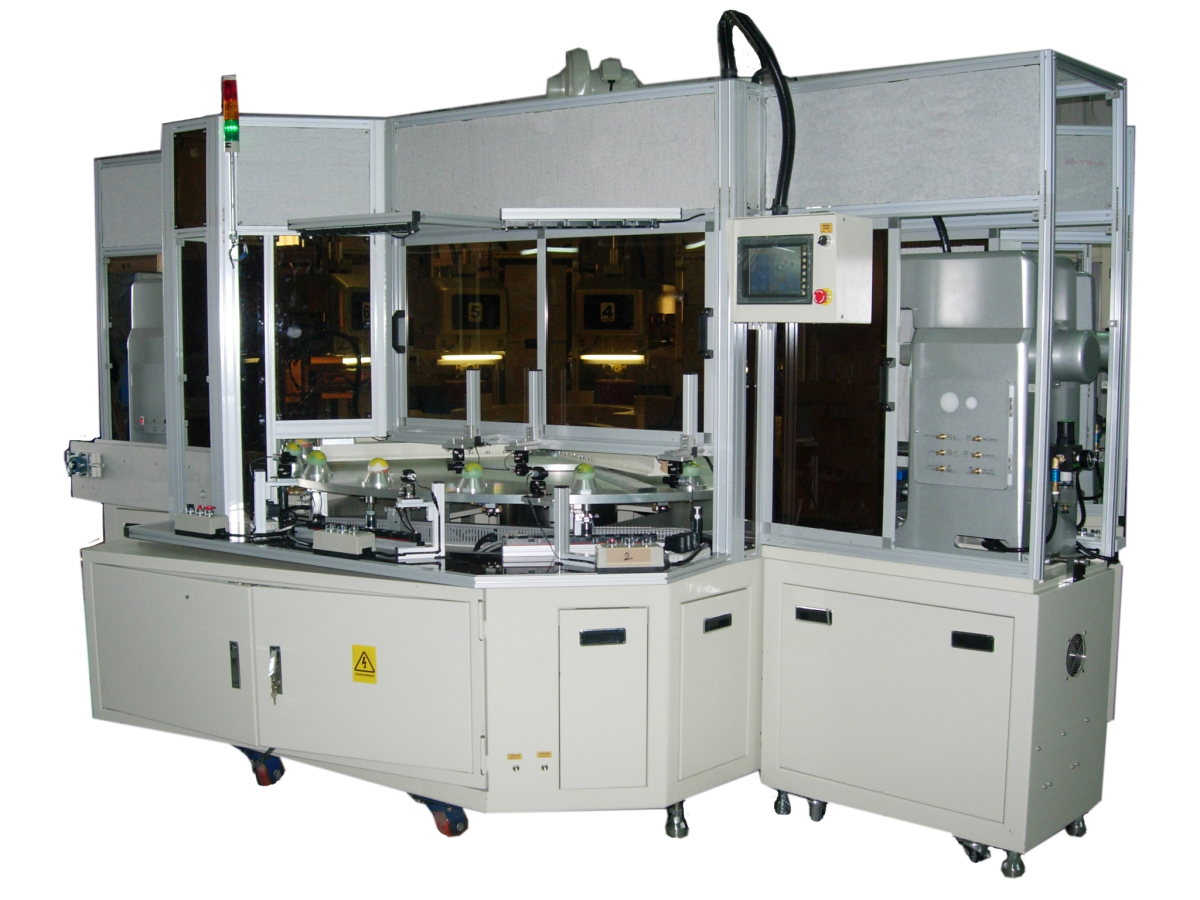

| Model | WE-9167 |
| Color | 4 |
| Ink supply | Ink-cup ∮90mm or ∮120mm(sealed) |
| Control panel | HMI touch panel |
| Steel plate size(mm) | 120×250x10 / 165 x 325x12 (mm) |
| Max print area | ∮70mm/∮100mm |
| Pad front-rear stroke (mm) | 200mm/300mm |
| Pad up-down stroke (mm) | 80mm /125mm |
| Slide table stroke | − |
| Positioning accuracy | ±0.01 |
| Working table size (mm) | − |
| Working table up-down | − |
| Rotary table | ∮1200，18 stations |
| Hot air dryer | ✔ |
| Ink removal device | (Option) |
| Output/Hr | 600~1200 |
| Power input | 3Phase 220V 15A 50~61Hz |
| input Air pressure (kg/cm2) | 6 |
| Pad pressurize kgf | 301 |
| Air consumption (L/Min) | 200 |
| Dimension L*W*H (mm) | 2,950 x 2,270 x 1,885mm |
| Net WT(kg) | 2500kg |
| CE certification option | Optional |
