- Digital microcomputer touch screen automatic error detection control system.
- The printing process is divided into four stages of stay time control.
- The transmission system uses pneumatic parts and bearings made in Taiwan.
- The separate ink tray and movable scraper assembly can be adjusted independently.
- The Oval conveyor adopts an independent cylinder positioning system, which ensures accurate positioning.
- Adding hot air drying equipment can make the printing more exquisite.

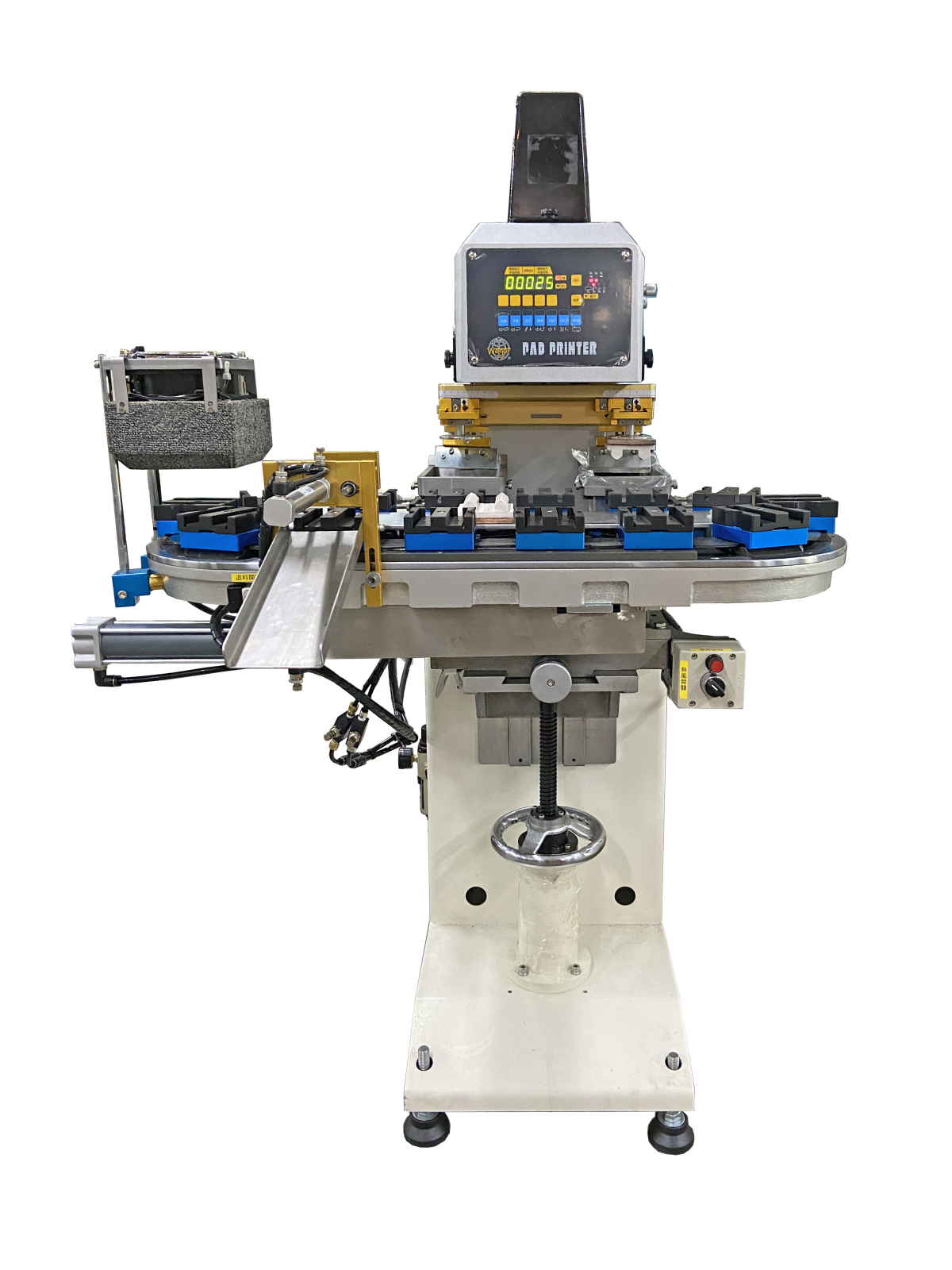

| Model | WE-152BY |
| Color | 2 |
| Ink supply | 4" Ink-tray |
| Control panel | Membrane switch OR HMI panel (optional) |
| Steel plate size(mm) | 100*100*10 |
| Max print area | ∮60 |
| Pad front-rear stroke (mm) | 125 |
| Pad up-down stroke (mm) | 50 |
| Slide table stroke | ✖ |
| Positioning accuracy | ±0.01 |
| Working table size (mm) | 14(1000*380)，16(1200*430) |
| Working table up-down | 100 |
| Rotary table | Oval, 14or16 stations |
| Hot air dryer | ✔ |
| Ink removal device | ✖ |
| Lighting device | ✖ |
| Robotic arm unloading mechanism | ✔ |
| Output/Hr | 800 ~ 1,600 |
| power d(choose one) (5A for hot air device) |
1Phase 110V或 220V 5A 50~60Hz |
| input Air pressure (kg/cm2) | 6 |
| Pad pressurize kgf | 75 |
| Air consumption (L/Min) | 11 |
| Dimension L*W*H (mm) | 850 x 920 x 1,400mm |
| Net WT(kg) | 170 |
| CE certification option | Optional |
