Pad Printing Machine

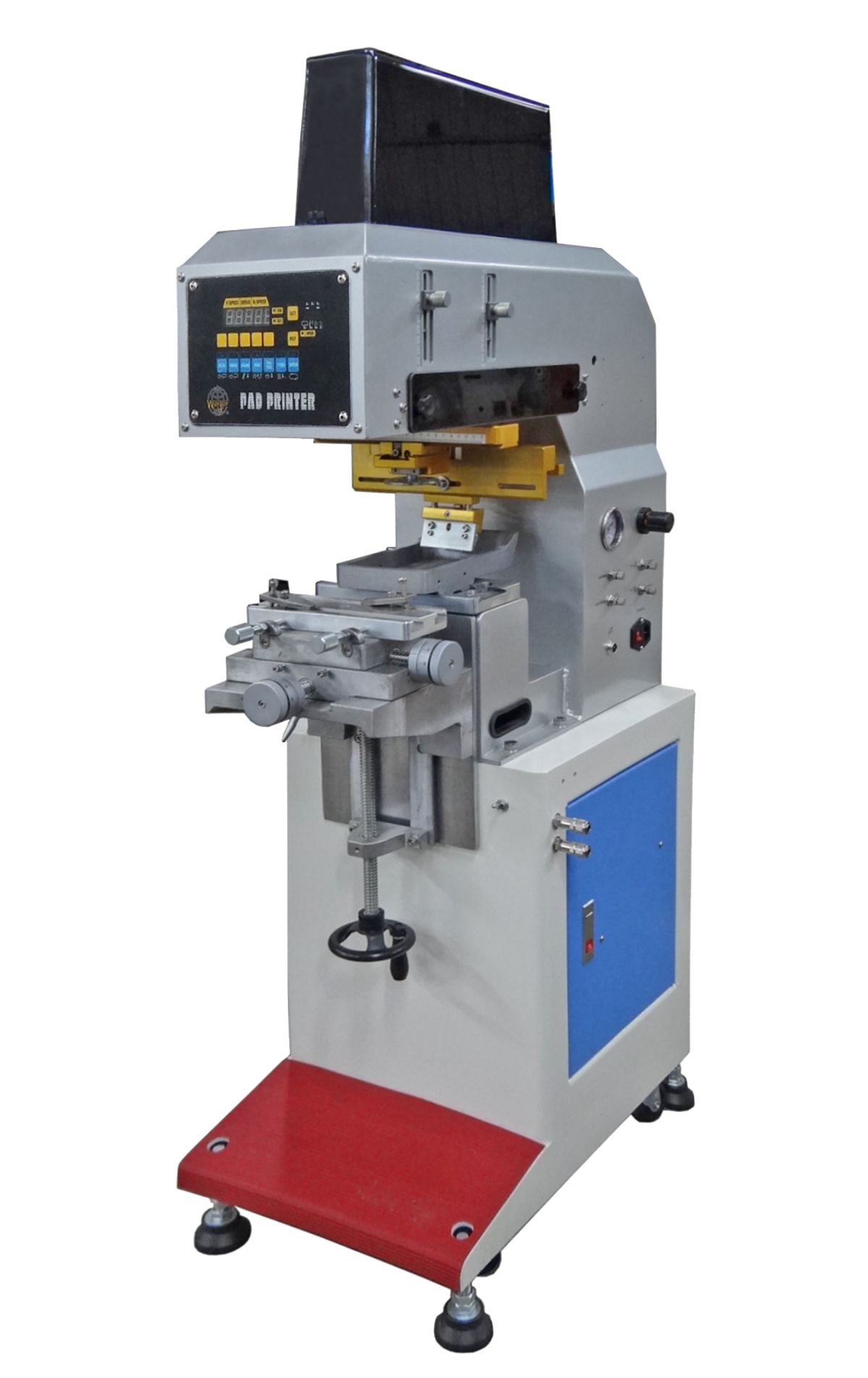

Single color standard pad printing machine with Ink tray

WE-151/161/300/171

Pad Printing Machine

Single color standard pad printing machine with Ink tray

ink tary, Dr.blade, ink brush

WE-151/161/300/171

Applicable for

  • Telephone and mobile phone's key pad, household electric appliance and sporting goods.

Add to inquiry list
Inquiry Form

Product Features

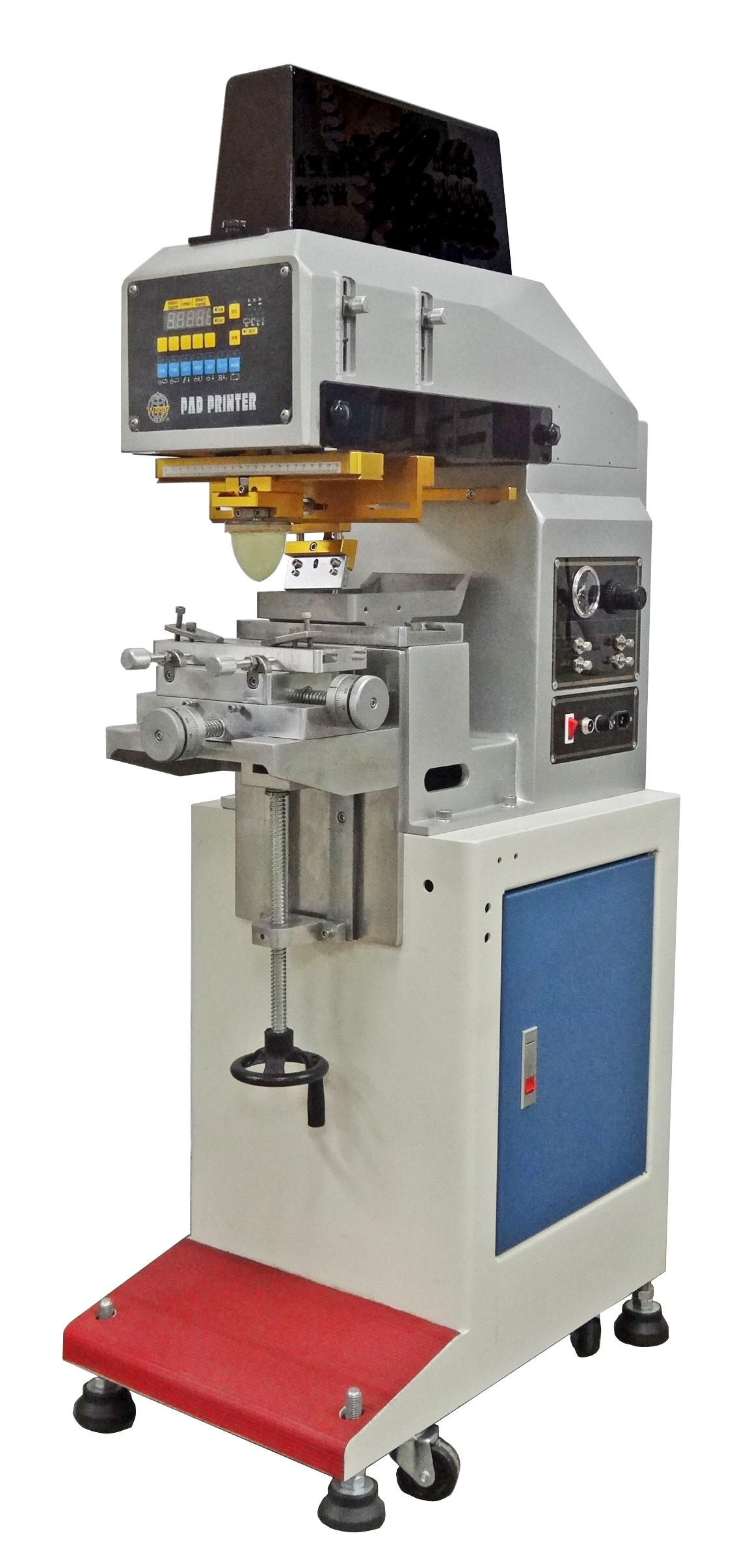

WE-151 descriptions
    • Suitable for toys, stationeries, decorations, electronics, plastics, lighters, metal, semi-products, ceramic, porcelains, glass and others.
  • Color : 1
  • Max Printing Plate : 100 x 200 (mm)
  • Output / Hour : 1,200 ~ 2,100
  • Dimension (L x W x H) : 750 x 420 x 1,400 (mm)
  • Net WT : 111 kg

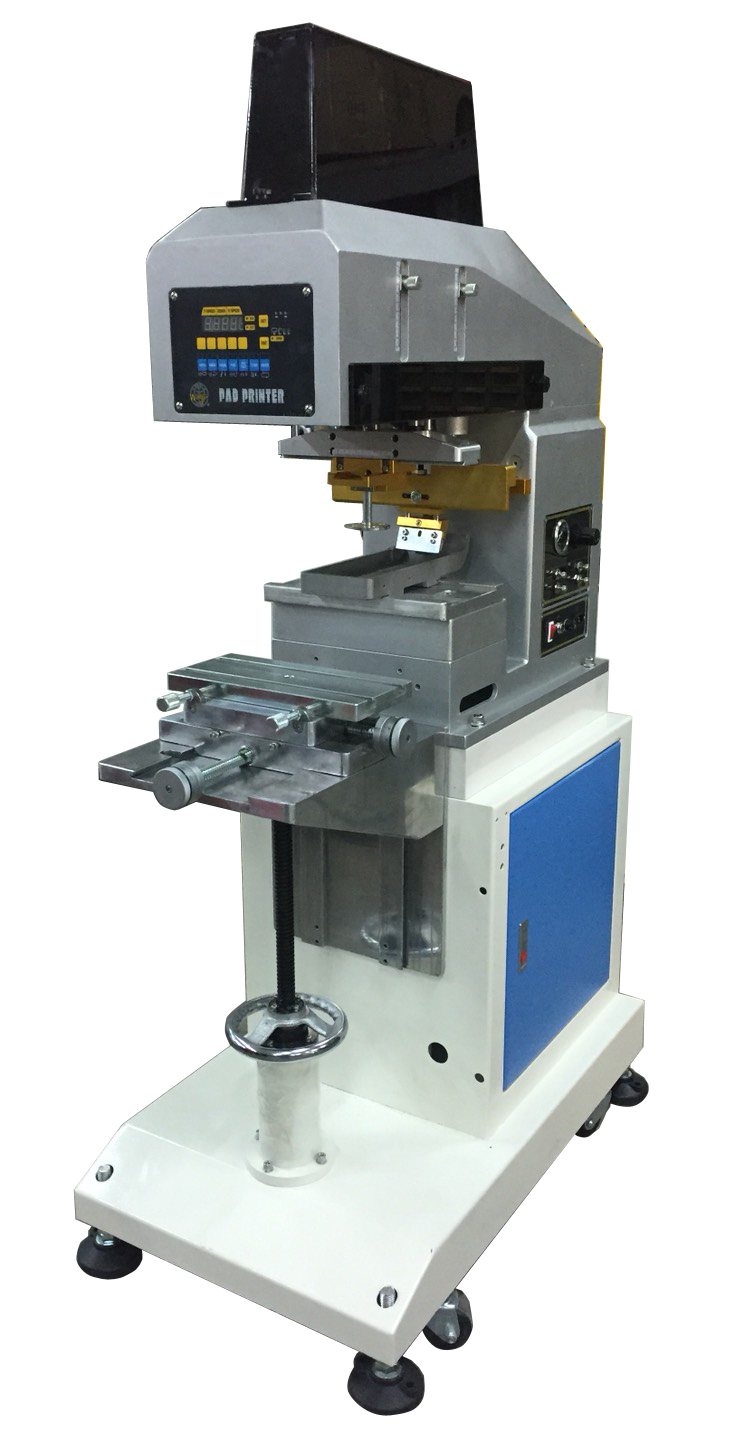

WE-161
  • Applications:
    • Telephone and mobile phone's key pad, household electric appliance and sporting goods.
  • Color : 1
  • Max Printing Plate : 140 x 250 (mm)
  • Output / Hour : 600 ~ 1,200
  • Dimension (L x W x H) : 1,000 x 600 x 1,550 (mm)
  • Net WT : 165 kg

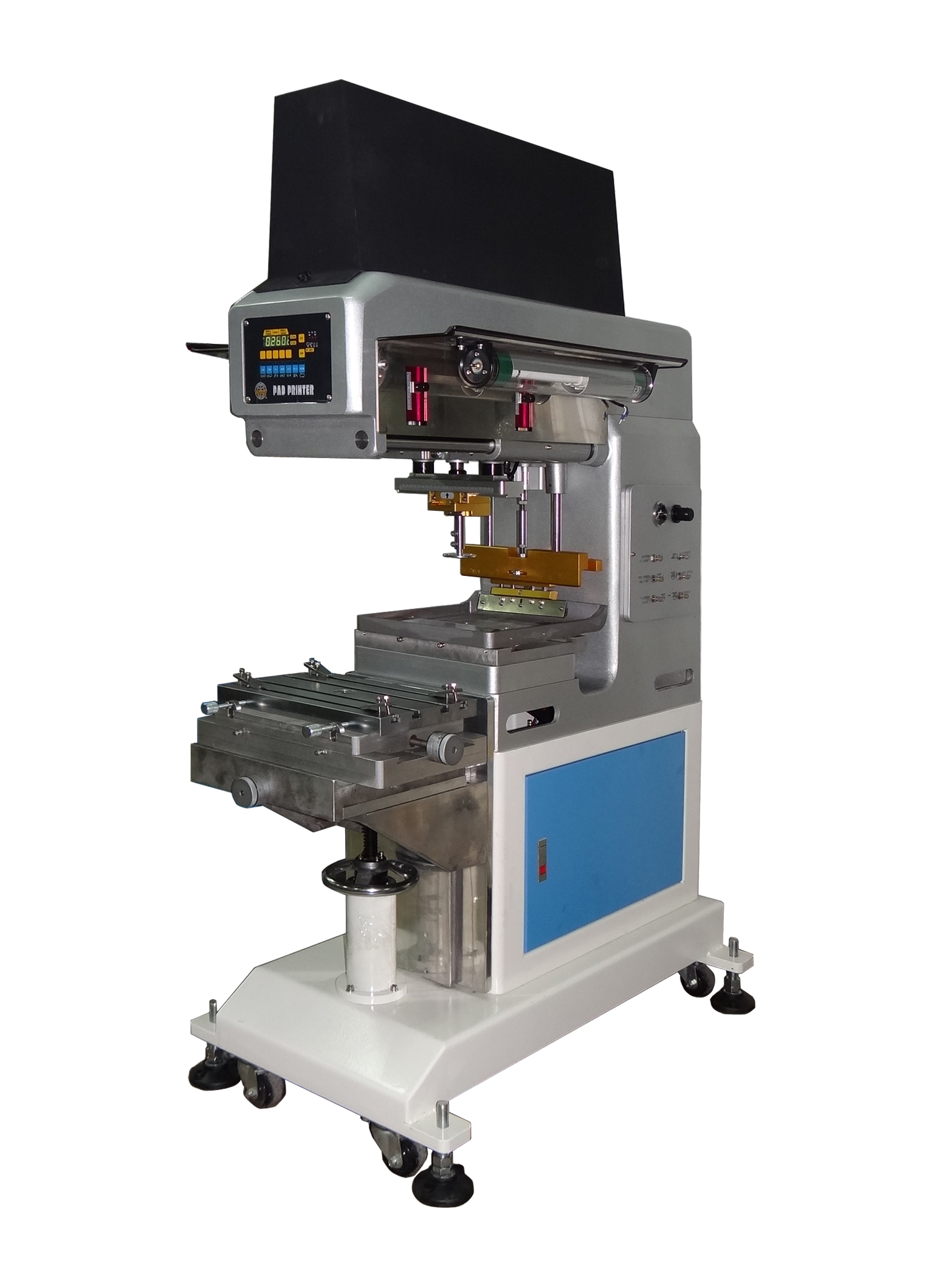

WE-300
  • Applications:
    • Telephone and mobile phone's key pad, household electric appliance and sporting goods.
  • Color : 1
  • Max Printing Plate : 200 x 300 (mm)
  • Output / Hour : 600 ~ 1,000
  • Dimension (L x W x H) : 1,600 x 700 x 1,520 (mm)
  • Net WT : 400 kg

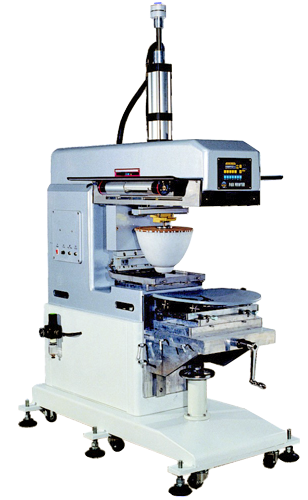

WE-171
  • Max. printing plate：300×400(mm)
  • Output/hour：600~100
  • Dimension(L*W*H)：1700×750×1520(mm)
  • Net weight：500kg

        Option Items

Hair dryer rack

It can be fixed on both sides of the machine. Use a common household hair dryer placed on the hair dryer rack. The hair dryer can be adjusted to aim at the Pad or the printing position of the printed matter to speed up the drying of the printing ink.

Hot air device:

One blower, two sets of electric heating rods, one set of electronic temperature controller, and two sets of hot air pipes. The hot air temperature can be controlled and aimed at the pad and the printed material to speed up the ink drying.

Dust removal device:

Before printing on the object, this device can be used to blow off the dust on the object. When the object approaches the dust removal device, the air jet starts automatically and stops when it moves away.

Crosshair Laser Marker:

To assist in alignment, the object's reference point is manually aligned with the cross laser line and fixed before printing.



Model WE-151 WE-161 WE-300 WE-171
Color 1
Ink supply  Ink-tray (open)
Control panel membrane switch(HMI panel optional)
Steel plate size 100*100mm 100*100~100*200mm 200*300mm 300*400mm
Max print area ∮60mm ∮100mm ∮150mm ∮200mm
Pad front-rear stroke 125mm 200mm 300mm 400mm
Pad up-down stroke 50mm 80mm 125mm 150mm
Slide table stroke − − − −
Positioning accuracy (+/-0.02) 　
Working table up-down 150mm 200mm 150mm 150mm
Rotary stations − − − −
Hot air dryer  − − − −
Ink removal device − − − −
Output/Hr 900-1200 600-900 600-900 600-900
power d(choose one)
(5A for hot air device)		 1∮ 110V或 220V 3A 50~60Hz
Air pressure (kg/cm2) 6
Pad pressurize  kgf 75 186 301 600
Air consumption (L/Min) 9 15 36 50
Dimension L*W*H (mm) 750 x 420 x 1,400  1,000 x 600 x 1,550  1,600 x 700 x 1,700 1700×750×2000(mm)
Net WT(kg) 150 250 400 500
