Using Taiwan made pneumatic components and imported ink-cup, stable quality, save the cost of ink & solvent, no scent, no smell, beauty printing color, low pollution and increase the production capacity more than 20%
Using servo motor control for slide shuttle, fast high precision positioning gives perfect printing.
Using PLC with HMI (human-machine interface) operating control. Fault display for troubleshooting and easy maintenance.
The extra light mounted on the machine gives clear printing.
The warm air device is quickly to dry inks on the pad increase production speed and to get better photo prints. Each warm air nozzle has their own flow control valve to easy control the flowing volume.

WE-263ES

Printing colors 3
Ink supply method Ink cup ∮60 or ∮90mm (sealed)
Operation interface HMI touch panel
Maximum steel plate size 90x200x10 or 120*250*10 (mm)
Maximum printing area ∮45/∮70mm
Paste head front and rear stroke 200 (mm)
Paste head up and down stroke 80mm
Output/hour 600~900
Machine size (length x width x height) 1,100×900×1,600 (mm)
Net weight 420kg

WE-264ES

Printing colors 4
Ink supply method Ink cup ∮90mm (sealed)
Operation interface HMI touch panel
Maximum steel plate size 90x200x10(mm)
Maximum printing area ∮70mm
Paste head front and rear stroke 200(mm)
Paste head up and down stroke 80mm
Output/hour 600~900
Machine size (length x width x height) 1,100×1000×1,600(mm)
Net weight 440kg

Products

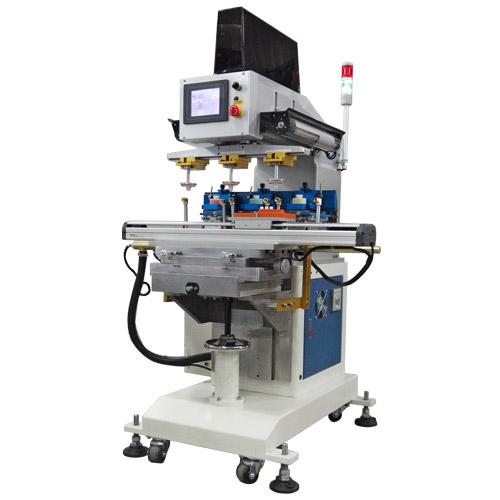

Multi-color servo slide pad printing machine

WE-263ES/264ES

Multi-color servo slide pad printing machine

WE-263ES/264ES

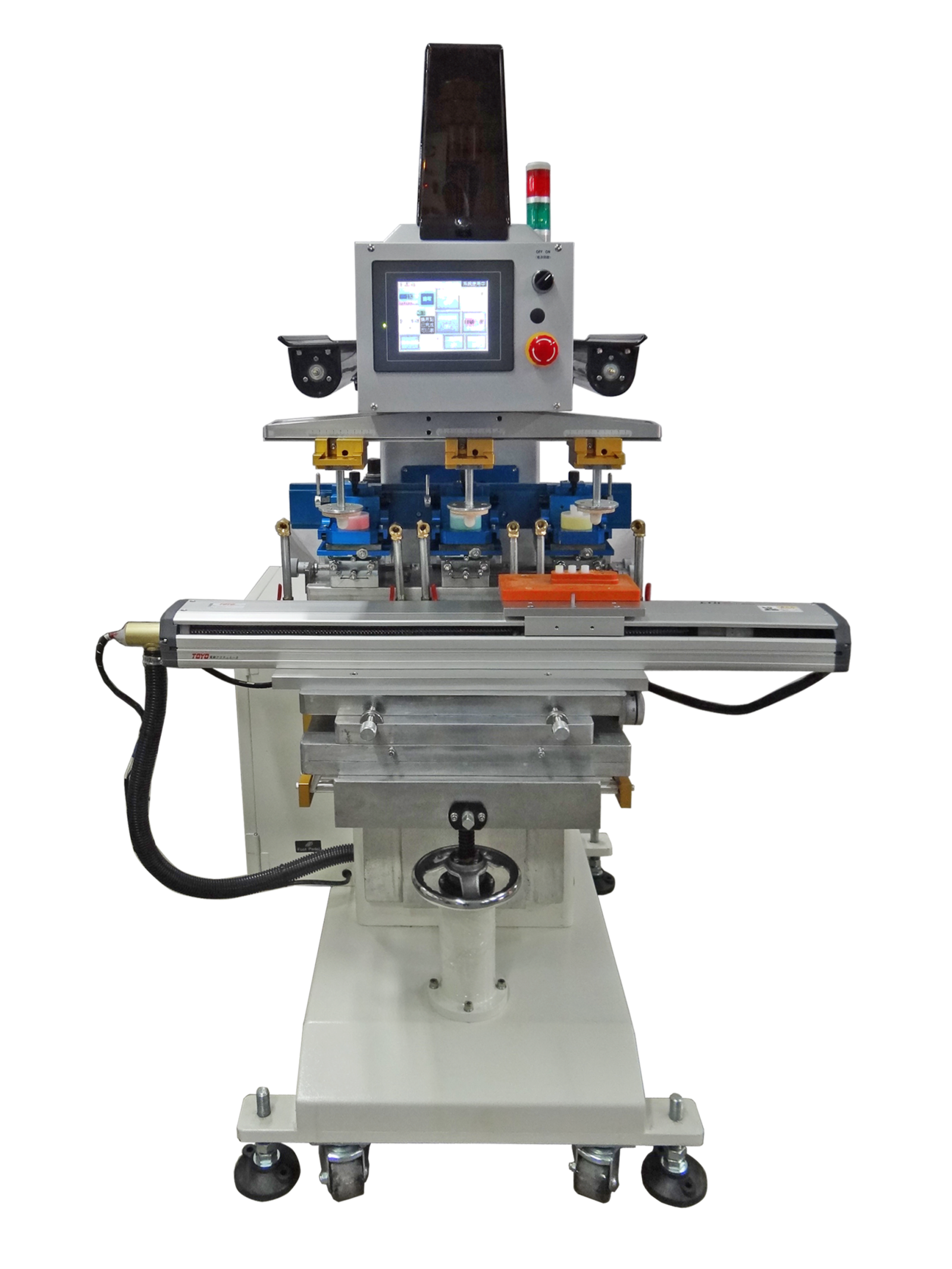

WE-263ES

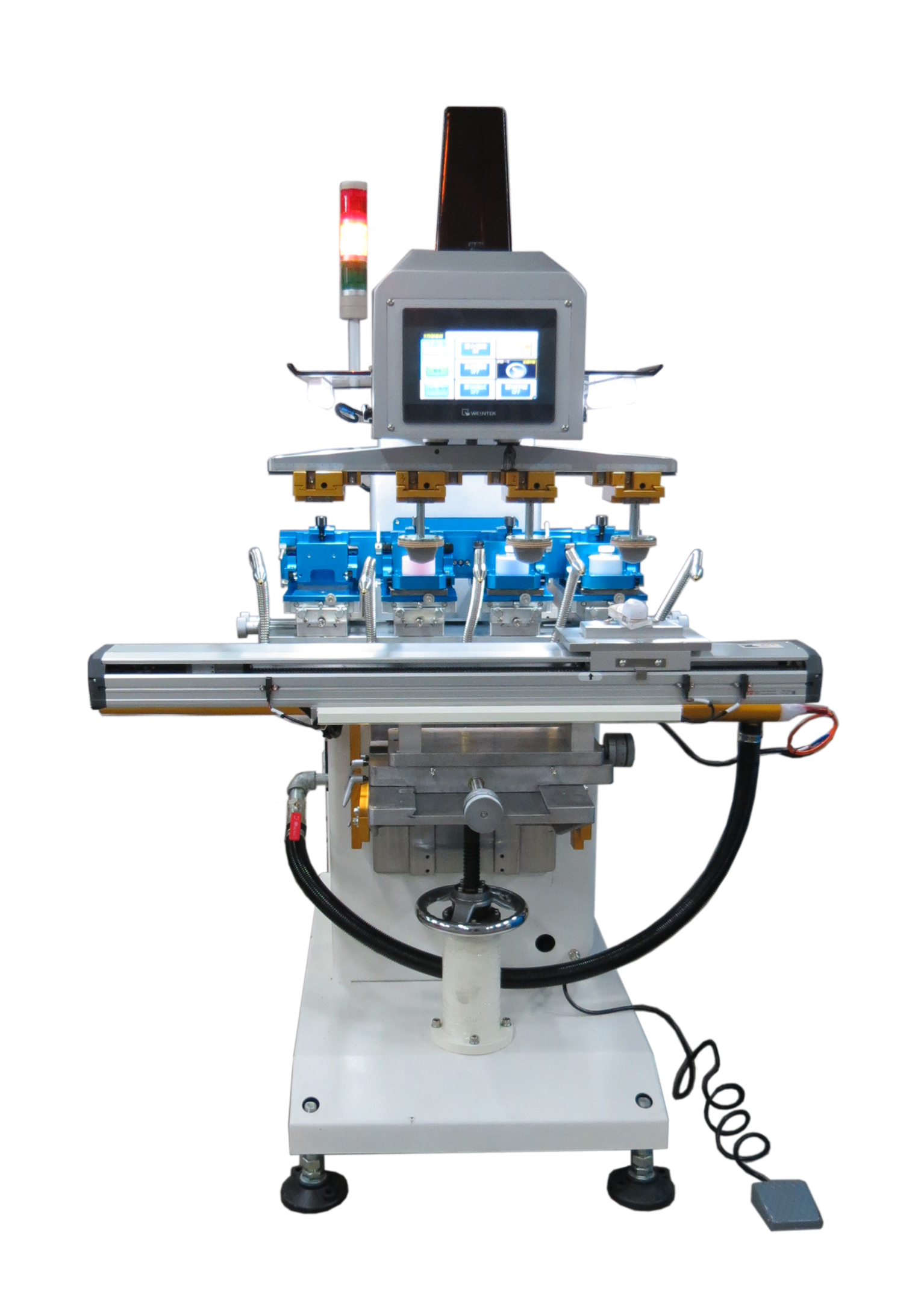

WE-264ES
