Heating dryer

Oven

Ink drying equipment, box type, single door tray type or double door oven with movable cart

WE-9114

Heating dryer

Oven

Ink drying equipment, box type, single door tray type or double door oven with movable cart

WE-9114

Applicable for

High and low temperature drying of any plastic, glass, metal and other products. Electronics, motors, electroplating, plastics, hardware, chemical and other industries: used for drying, preheating of processed parts and other applications.

Add to inquiry list
Inquiry Form

Product Features

Baking:
Applicable to baking of various products, such as baking of electronic components in the electronics industry.
Drying:
Used to remove moisture from products, such as drying of chemical raw materials, drying of textiles, and drying of electronic products.
Curing:
Used to make products reach a specific hardness and strength, such as curing of glue, paint, and curing of plastic products.

Industrial ovens are indispensable equipment for many industries due to their versatility and wide range of applications.

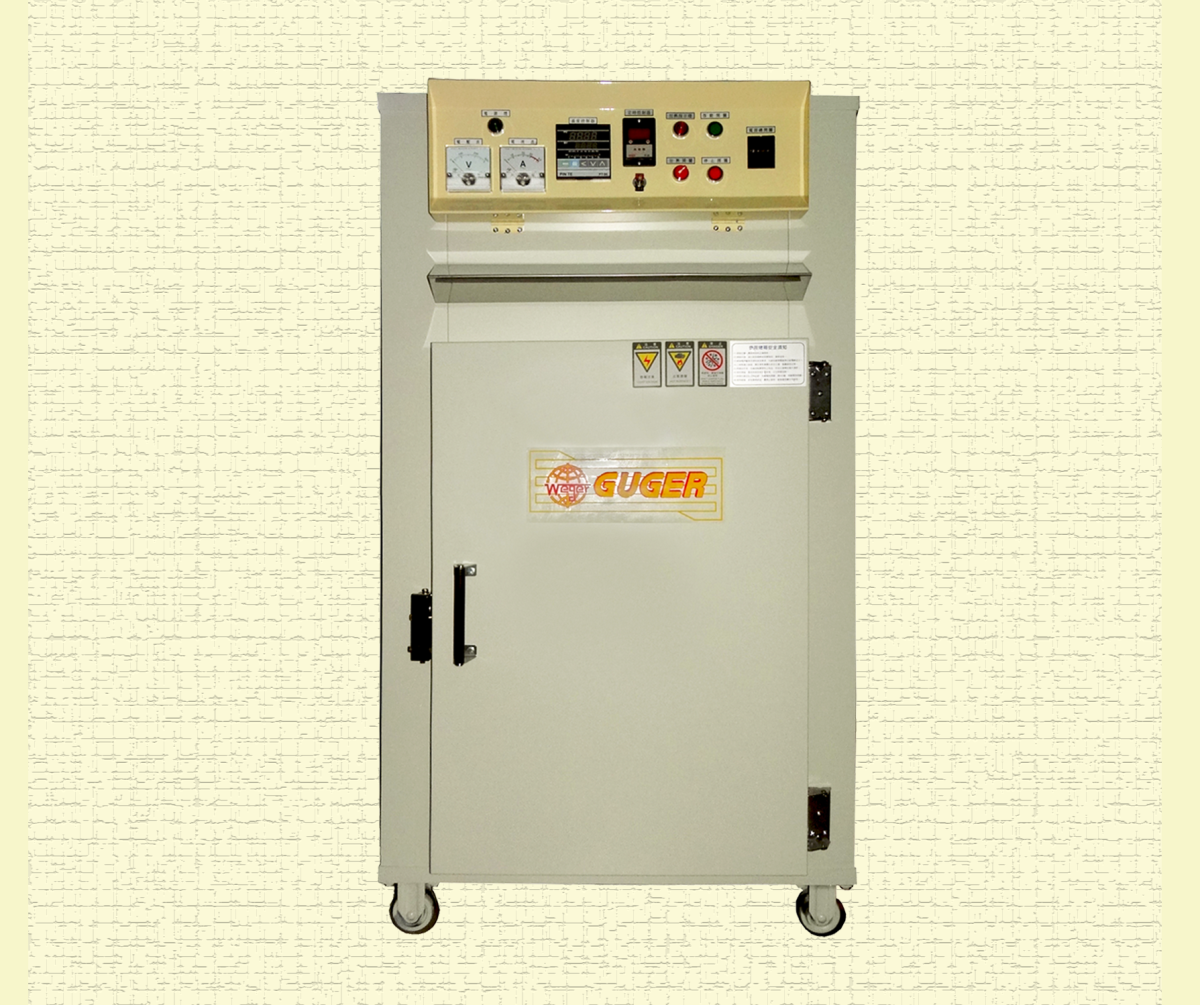

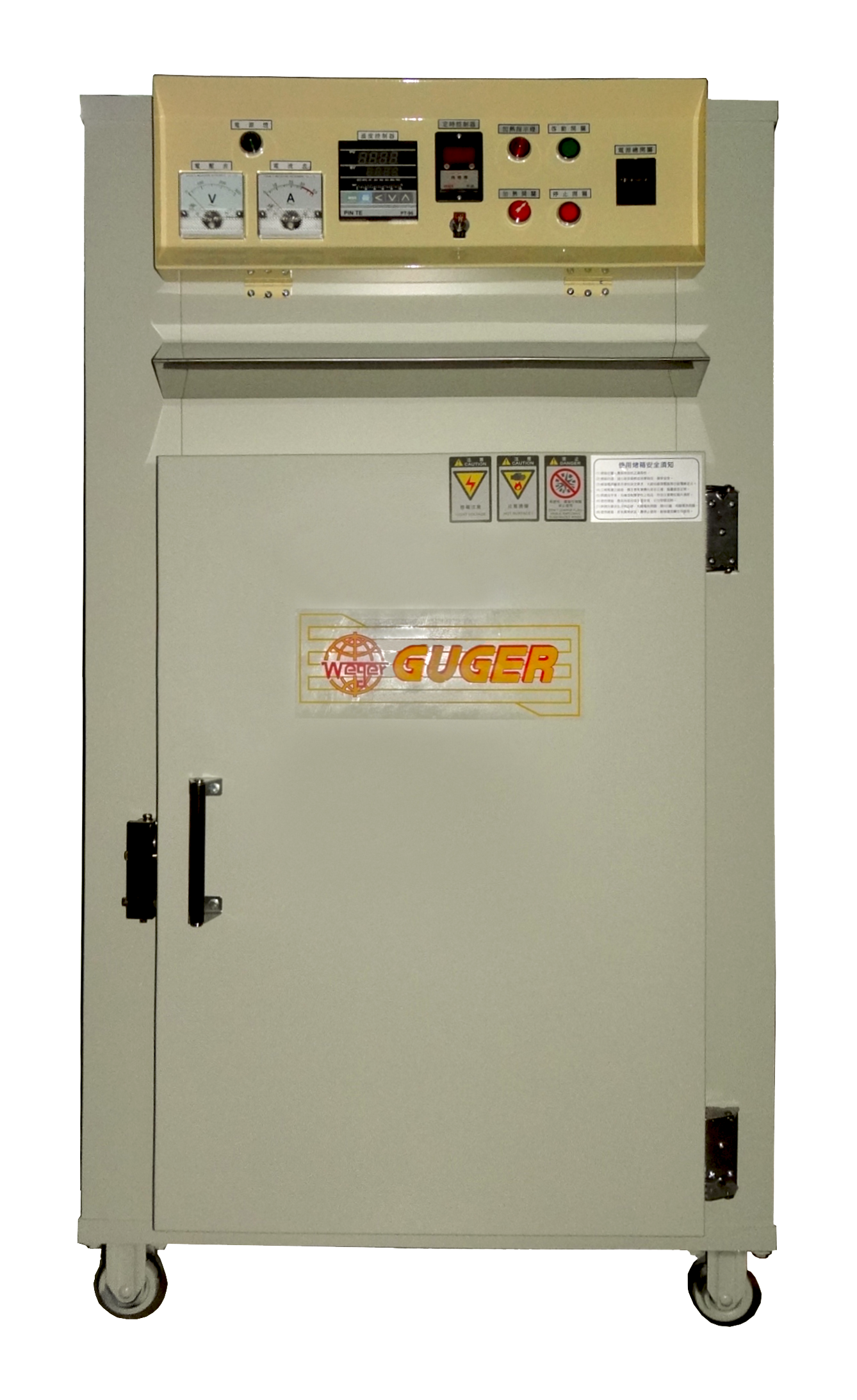

WE-9114

Single door, tray type

The control system uses high-quality electrical parts with low failure rate.
Two-stage heating control can save electricity.
Full indication of voltage, current, and temperature operation status at a glance.
Baking time can be set.
Internal circulation fan makes the temperature in the oven more uniform.
Dimensions (length x width x height): 870 x 700 x 1,500 (mm)

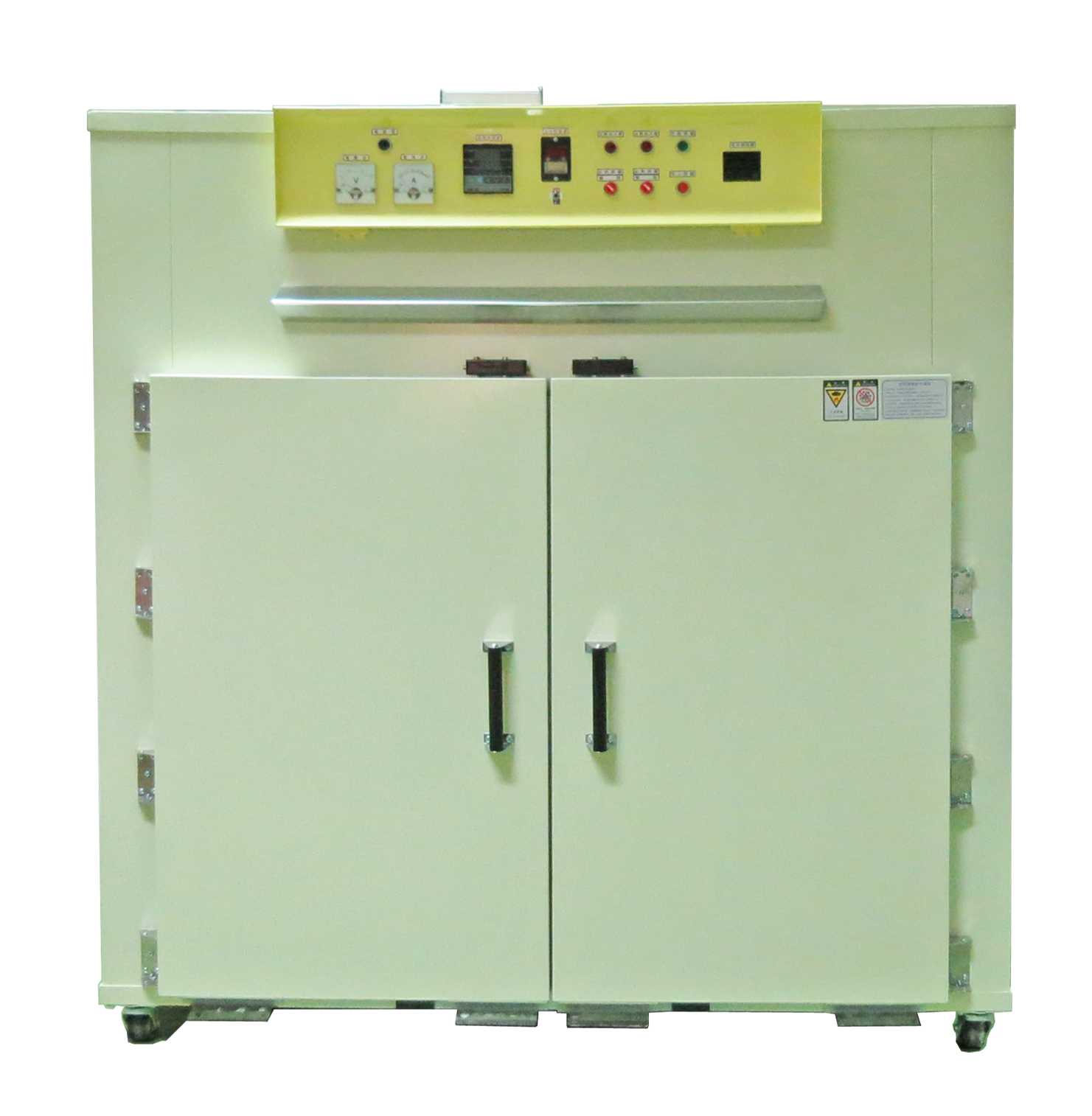

 WE-9114-2

1.style:Horizontal blow type, cart Two door for open and the control box in the right side.

2.Material :steel plate with "L" steel.
3.Keeping temperature:6side keeping temperature with rock cotton.
4.Control way: ON/OFF control.Setting the desired temperature and time. when it reaches the temperature, the timer will count down and keep the temperature and the system will auto turn off when the time is up.
5.control part: Digital thermometer, electric timer(999M), magnetic contactor, heater switch, motor protect switch, power switch, voltmeter, ammeter, EGO overheat protector.
6. Coating: inside->heatproof silver coating; outside-> double top coating.

  • Internal specifications: height 150 cm x width 120 cm x depth 85 cm.
    External specifications: height 215 cm x width 175 cm x depth 100 cm.
    Blower: Use AC 1HP blower motor with multi-wing fan.
    Heater: Use ceramic insulated heater, total power 8KW.
    Voltage: Voltage 220V, single phase: Temperature: Normal temperature ~ MAX 180 degrees.

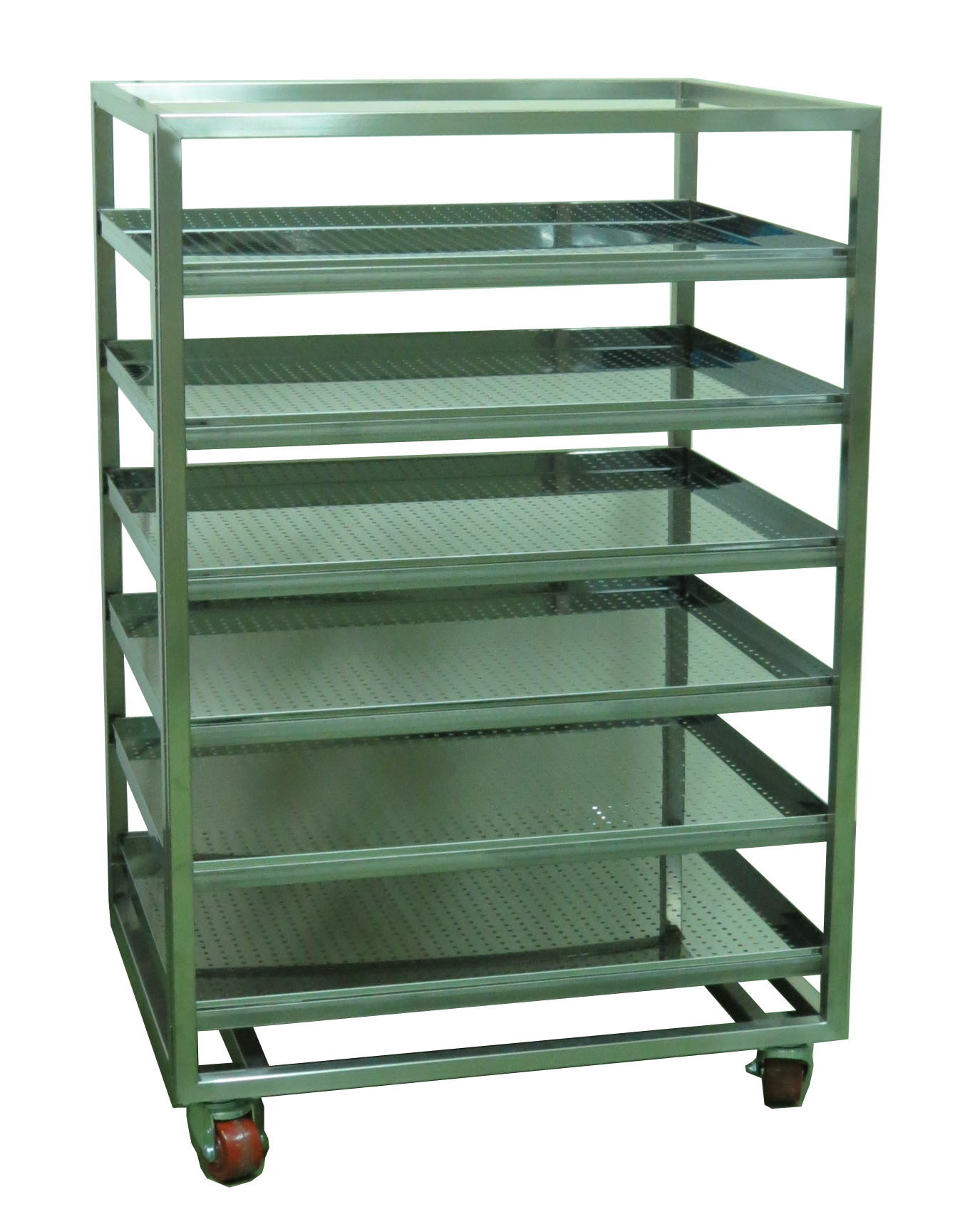

  • WE-9114-A
    • 1. Type: can be pushed into the oven for use.
      2. Cart specifications: height 150 cm x width 107 cm x depth 75 cm.
      3. Cart frame material: all angle steel painted and welded together.
      4. Cart layers: 10 layers in total, each layer is about 12 cm.
      5. Cart wheels: 4 4-inch movable iron wheels.
      6. Spray paint: heat-resistant silver paint on the surface.
      7. Baking tray specifications: width 100 cm x depth 75 cm. Punching hole diameter 12MM, hole center distance 40MM.
      8. Baking tray material: all 430 stainless steel plates are used.
