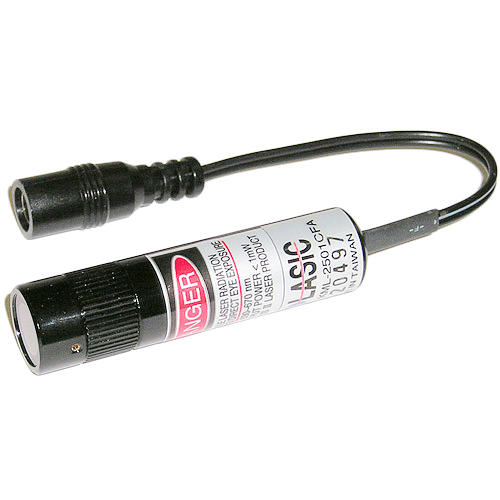

Cross laser marker

WE-Laser 2000

Cross laser marker

Printing alignment, cross laser alignment, laser cross line

WE-Laser 2000

Applicable for

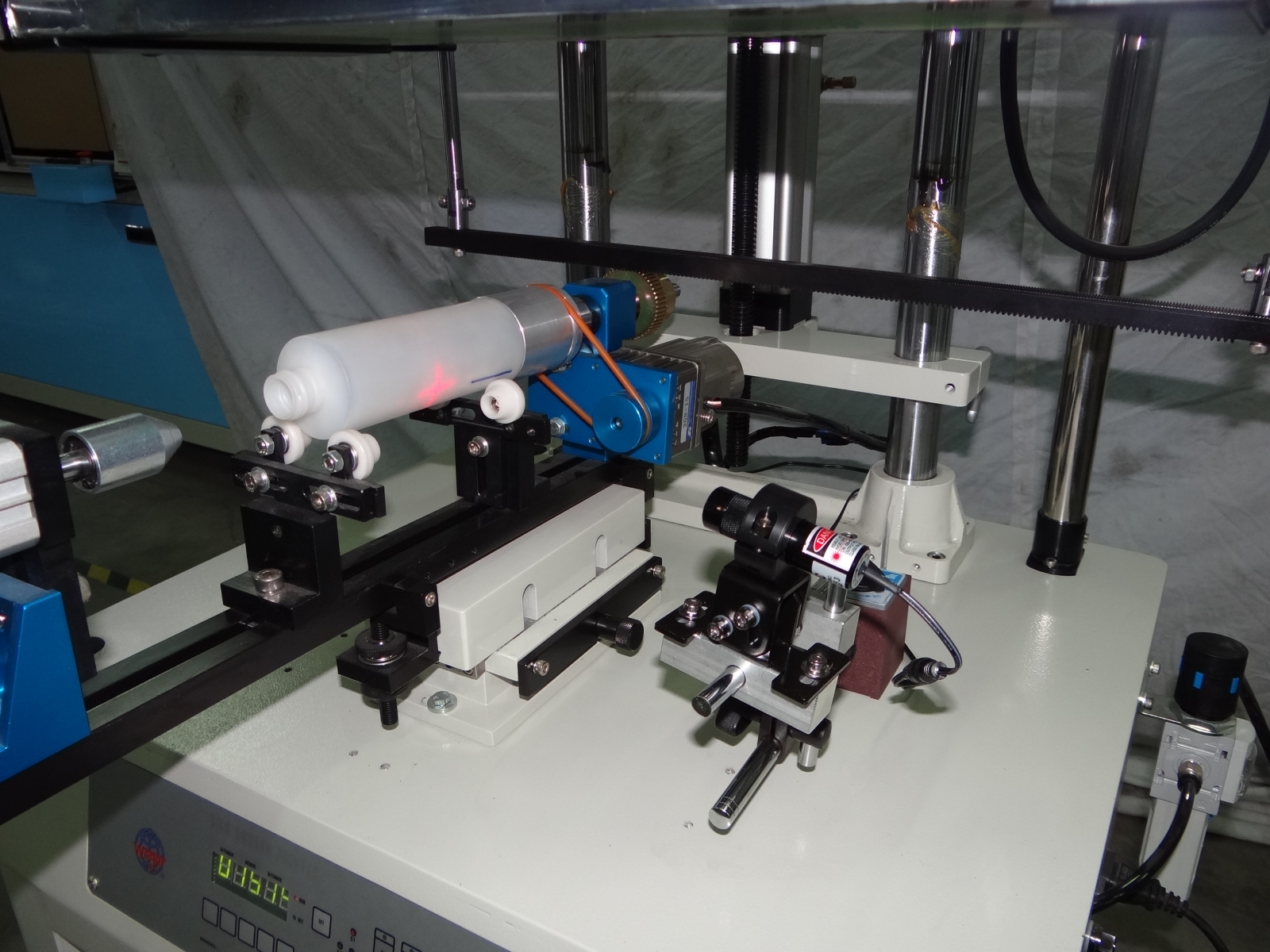

Color registration and positioning

Add to inquiry list
Inquiry Form

Product Features

● Japanese industrial-grade laser diode
● Industrial design, high stability
● Long service life

Wavelength: 630 ~ 650 nm visible red light
Output power: < 1 mW

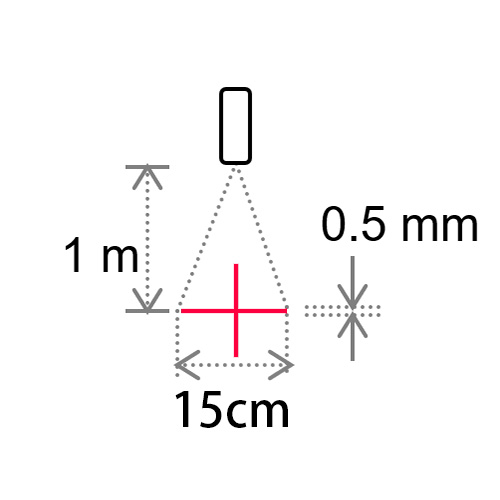

Projection distance: 1 m
Marking line length: 15 cm per line
Lin​e thickness: 0.5 mm adjustable focus

Input voltage: 5 ~ 8 VDC
Operating current: < 70 mA
Operating temperature: – 10 ~ +50 °C
Safety level: Class Ⅱ
Protection level: IP 64
Service life: > 20,000 hours
Dimensions: D 15 X L 60 (mm)
Weight: 23 ± 2 grams
