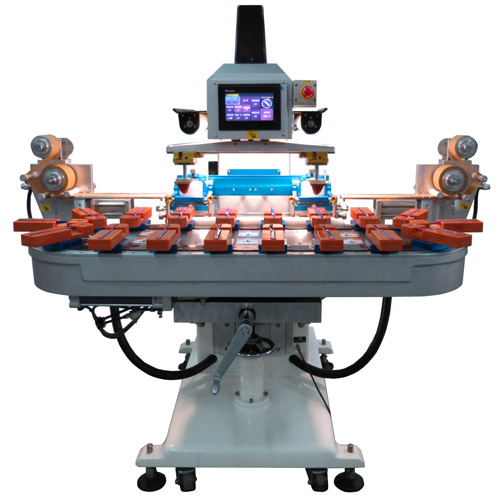

- Application: 2 color printing of plastic object.
- Using Taiwan pneumatic components and ink cup for stale quality, save the cost of ink & solvent, no scent, no smell, beauty printing color, low pollution and increase the production capacity.
- The extra light mounted on the machine gives clear printing.
- Patent ink squeegee device provides stable/smooth/clear ink squeezing.
- Using imported pneumatic components with stable quantity.
- HMI and PLC controlled. An advanced and unique four times "PAUSE" function for better printing quality have been designed to enable users who may stop or continue the operation in process of printing, easy to maintain.
- 18 station rotary table is for multi-color printing, dry and easy unloading
- Hot air device help to speed the dry
- Using two air source. Every source needs 5-6Kg
- Electric consumption: 20A 4KW
- The transmission of rotary table is programmable control.
- About the blow device, every air outlet has a throttle valve for adjustment of air volume.
| Model | WE-262BY-TW |
| Color | 2 |
| Ink supply | Ink-cup ∮90mm (sealed) |
| Control panel | HMI touch panel |
| Steel plate size(mm) | 120*250*10 |
| Max print area | ∮75 |
| Pad front-rear stroke (mm) | 200 |
| Pad up-down stroke (mm) | 80 |
| Slide table stroke | − |
| Positioning accuracy | ±0.02 |
| Working table size (mm) | 18stations 1350*440 |
| Working table up-down | 100 |
| Rotary table | Oval,18 stations |
| Hot air dryer | ✔ |
| Ink removal device | ✔ |
| Lighting device | ✔ |
| Robotic arm unloading mechanism | Optional |
| Output/Hr | 900-1200 |
| power d(choose one) (5A for hot air device) |
1Phase 110V或 220V 5A 50~60Hz |
| input Air pressure (kg/cm2) | 6 |
| Pad pressurize kgf | 186 |
| Air consumption (L/Min) | 17 |
| Dimension L*W*H (mm) | 1500×1300×1600(㎜) |
| Net WT(kg) | 440kg |
| CE certification option | Optional |
