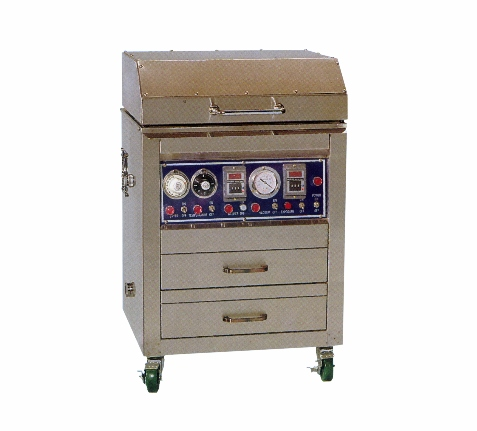

RESIN PLATE / LETTERPRESS MAKER

WE-FA2 / WE-FB3 /

RESIN PLATE / LETTERPRESS MAKER

WE-FA2 / WE-FB3 /

Applicable for

  • Suitable for making resin plate and letterpress, Applicable to any cleaning materials of solvent, water and alcohole made by any brand.



Add to inquiry list
Inquiry Form

Product Features

All functions are compactly packaged into one unit of machine with a minimum of space requirement. All controls are located in the fornt of the machine. A drawer type exposure device is easy to load and unload negatives and block plates. For uniform light exposure through out a sufficient number of lamps are furnished. Wash out of the exposed plate is performed in the liquid tank where in brushes and moving plate holder areblowing type drying oven is also equipped. Operation of Guger is simple and requires no trained engineer nor skilled workers.

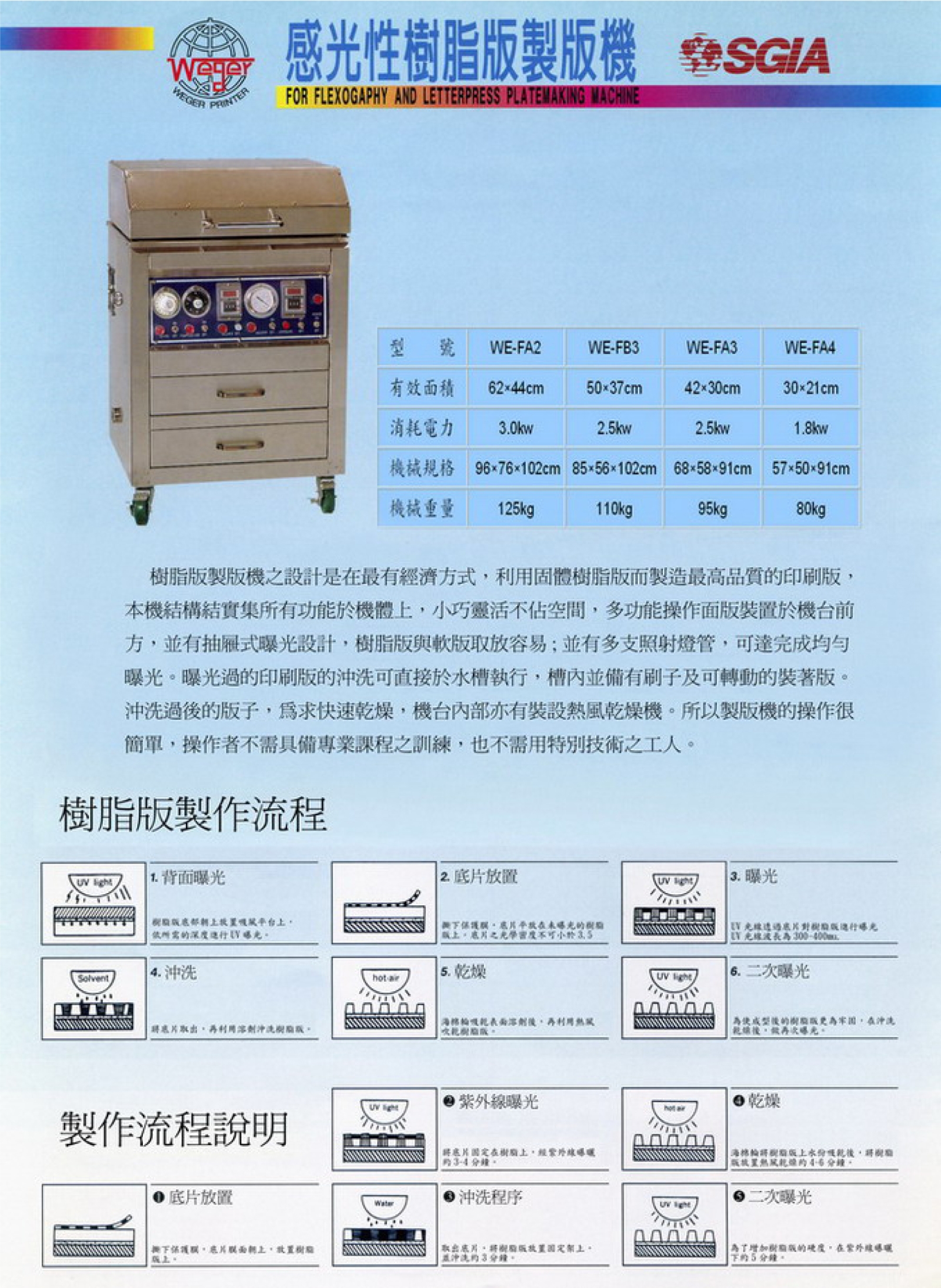

型號 WE-FA2 WE-FB3 WE-FA3 WE-FA4
有效面積 62X44cm 50X37cm 42X30cm 30X21cm
消耗電力 3.0Kw 2.5Kw 2.5Kw 1.8Kw
機械規格 96X76X102cm 85X56X102cm 68X58X91cm 57X50X91cm
機械重量 125Kg 110kg 95Kg

80Kg
