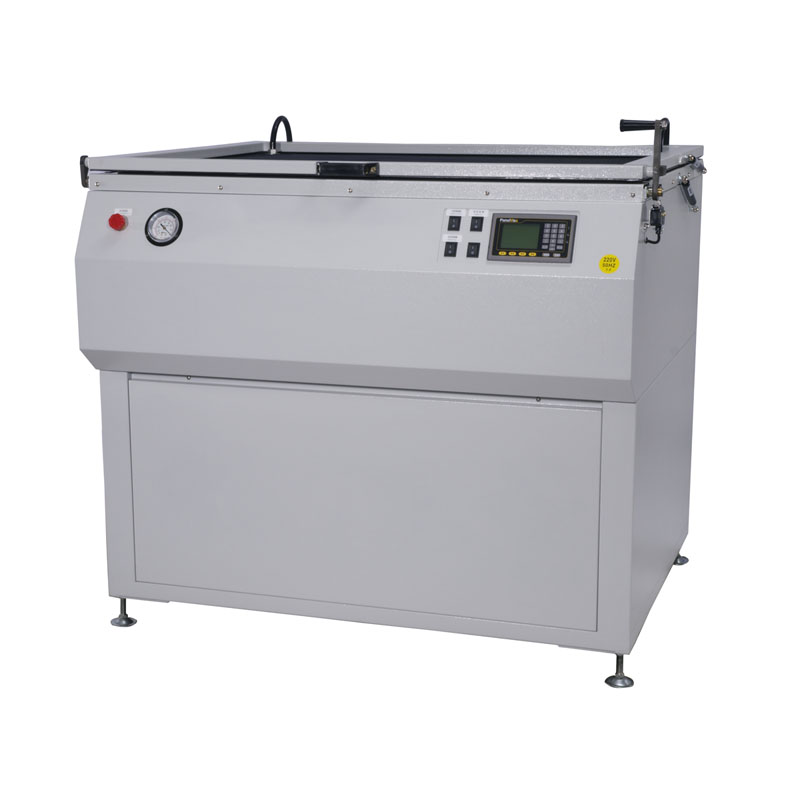

Product specifications:
Standard light source: 3000W instantaneous ultraviolet light source, wavelength range 360/410㎜
Vacuum system: 1/4HP oil-free silent vacuum pump
Power requirement: single-phase 220V 50/60HZ 25A
Product features:
Precision exposure controller
LCD liquid crystal display exposure panel, PLC programmable exposure computer, excellent stability, far better than some IC board control. Accurately control the exposure, the stability error is less than ±2%. It can automatically detect the intensity of the light source and adjust the countdown speed by itself, so as to overcome the errors caused by lamp aging, voltage instability, and the startup speed of hot and cold lamps, and reduce human negligence.
Uniform illumination distribution
Equipped with imported reflective cover, the material is resistant to ultraviolet radiation and oxidation corrosion, and the light source is evenly distributed, suitable for direct/indirect screen exposure of high-precision lines and high-density mesh lines.
High-power UV light source
Optionally equipped with high-efficiency 3000W, 4000W, 6000W light sources, wavelength range 360~410㎜
High-speed vacuum suction system
Equipped with dust-free, oil-free, silent vacuum suction motor and high-tension anti-UV suction rubber, the suction speed is uniform and fast, close and flat, suitable for direct/indirect screen exposure and clean room operation of high-precision lines and high-density screen lines.
Four sets of large film or plate cabinets.
