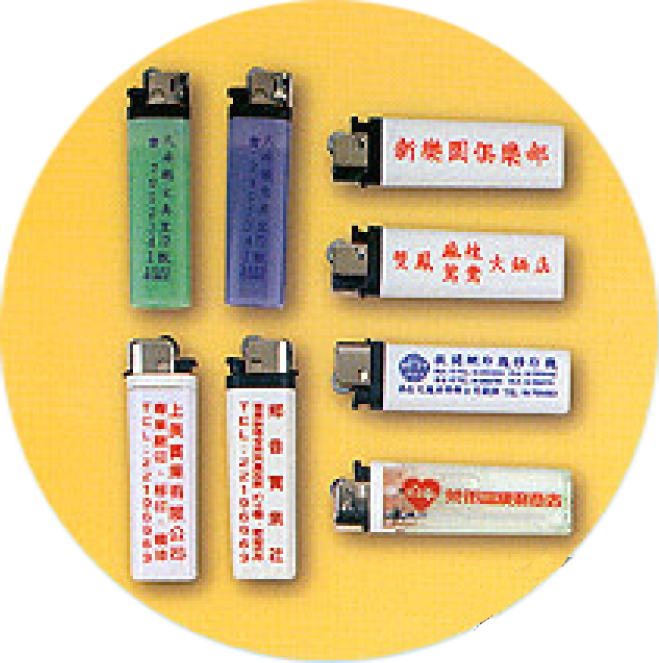

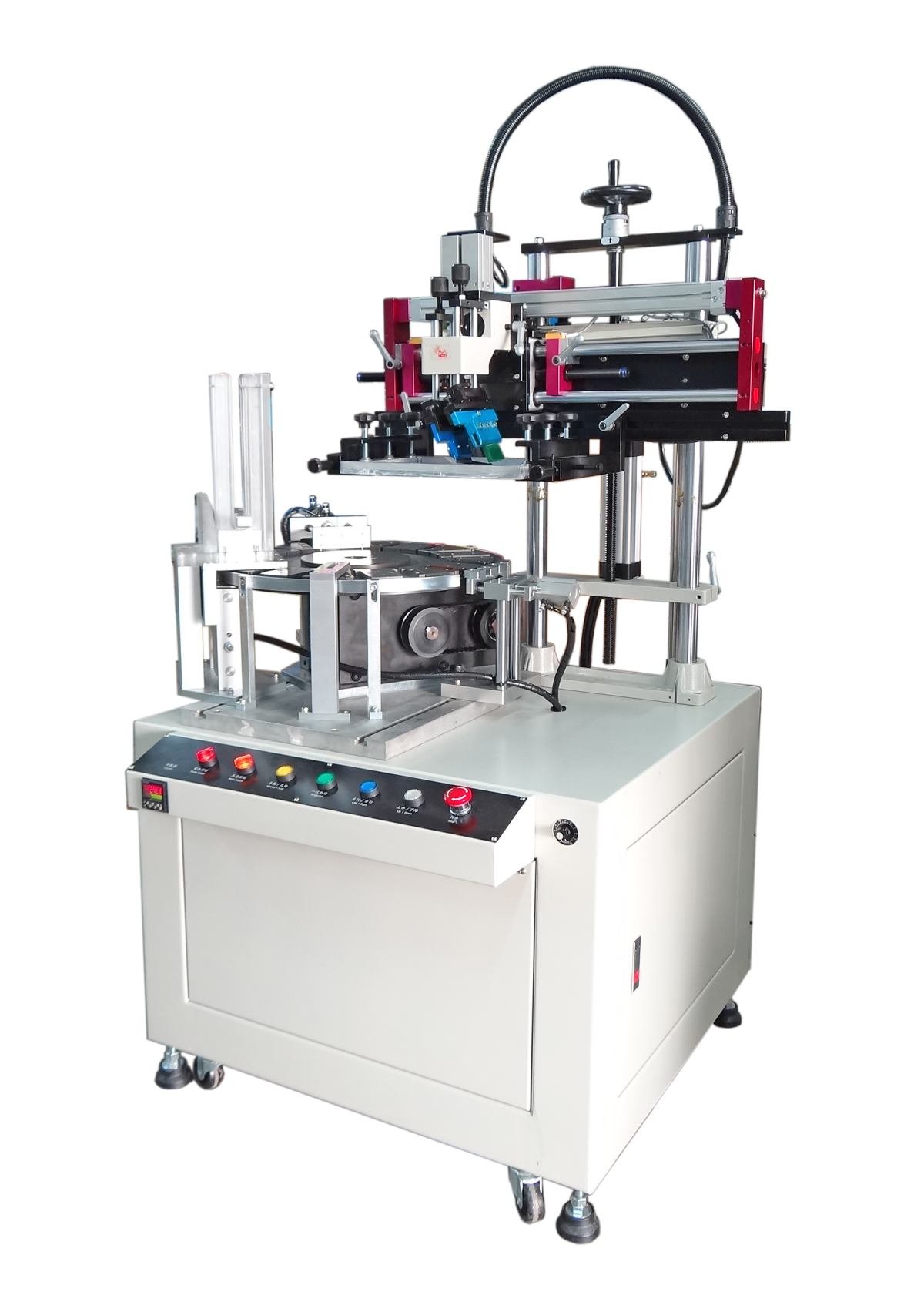

Model: WE-9102-A (1-feed lighter printer)
Maximum printing area: 30 x 80
Output / hour: 3,000 ~ 3,600
Machine size (length x width x height): 800 x 850 x 1,650 (mm)
Net weight: 240 kg
Model: WE-9102-B (3-feed lighter printer)
Maximum printing area: 90 x 80
Output / hour: 6,000 ~ 9,000
Machine size (length x width x height): 1,000 x 1,200 x 1,650 (mm)
Net weight: 320 kg
The control system adopts a digital microcomputer control system, which is easy to operate and contains a fault display system, making maintenance easier.
Pneumatic parts use standard parts made in Taiwan, and high functionality and low failure make the machine performance more superior.
The transmission system uses imported bearings and shafts from Japan, which are wear-resistant and have a long service life.
The electric indexing plate can be installed to make the printing quality better and the operation easier. The peripherals can be installed according to the printing products to make the printing faster.
The printing starting point can be selected on the left, and the ink-filling printing method can be used to make the printing ink film thickness thinner.
Manual feeding ==> automatic printing ==> automatic material return.

The machine size can be customized according to customer needs.
