Screen Printing Machine

Auto bottle printer

Bottle printing, UV drying, color printing, screen printing, high-speed multi-color printing, fully automatic, semi-automatic, round bottles and flat bottles can be printed

WE-400TR

Screen Printing Machine

Auto bottle printer

Bottle printing, UV drying, color printing, screen printing, high-speed multi-color printing, fully automatic, semi-automatic, round bottles and flat bottles can be printed

WE-400TR

Applicable for

Plastic containers of various shapes (including round bottles, flat bottles and flat bottles) can be printed.

Add to inquiry list
Inquiry Form

Product Features

The 400TR is a fully automatic high-speed screen printer that can print various shapes of plastic containers (including round bottles, flat bottles and flat bottles). The design of this prototype model is the basic structure of a multi-color machine, which can fully ensure high-quality, high-efficiency and high-output multi-color printing.
The multi-color machine can be manufactured and connected according to different needs.

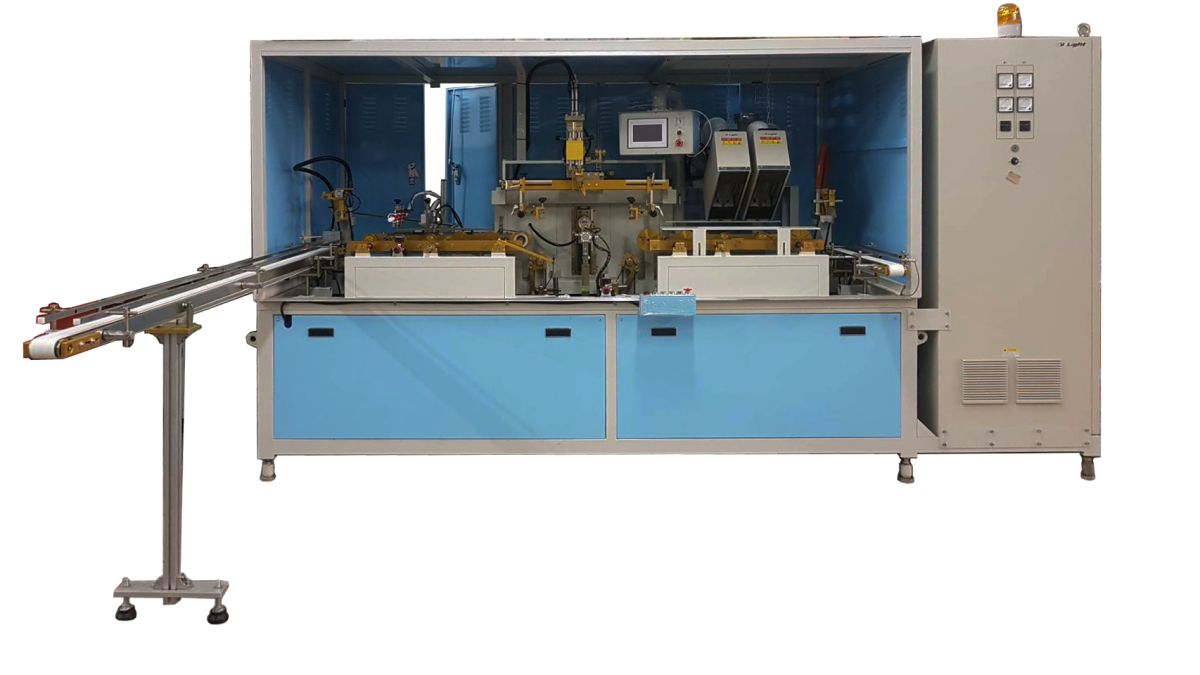

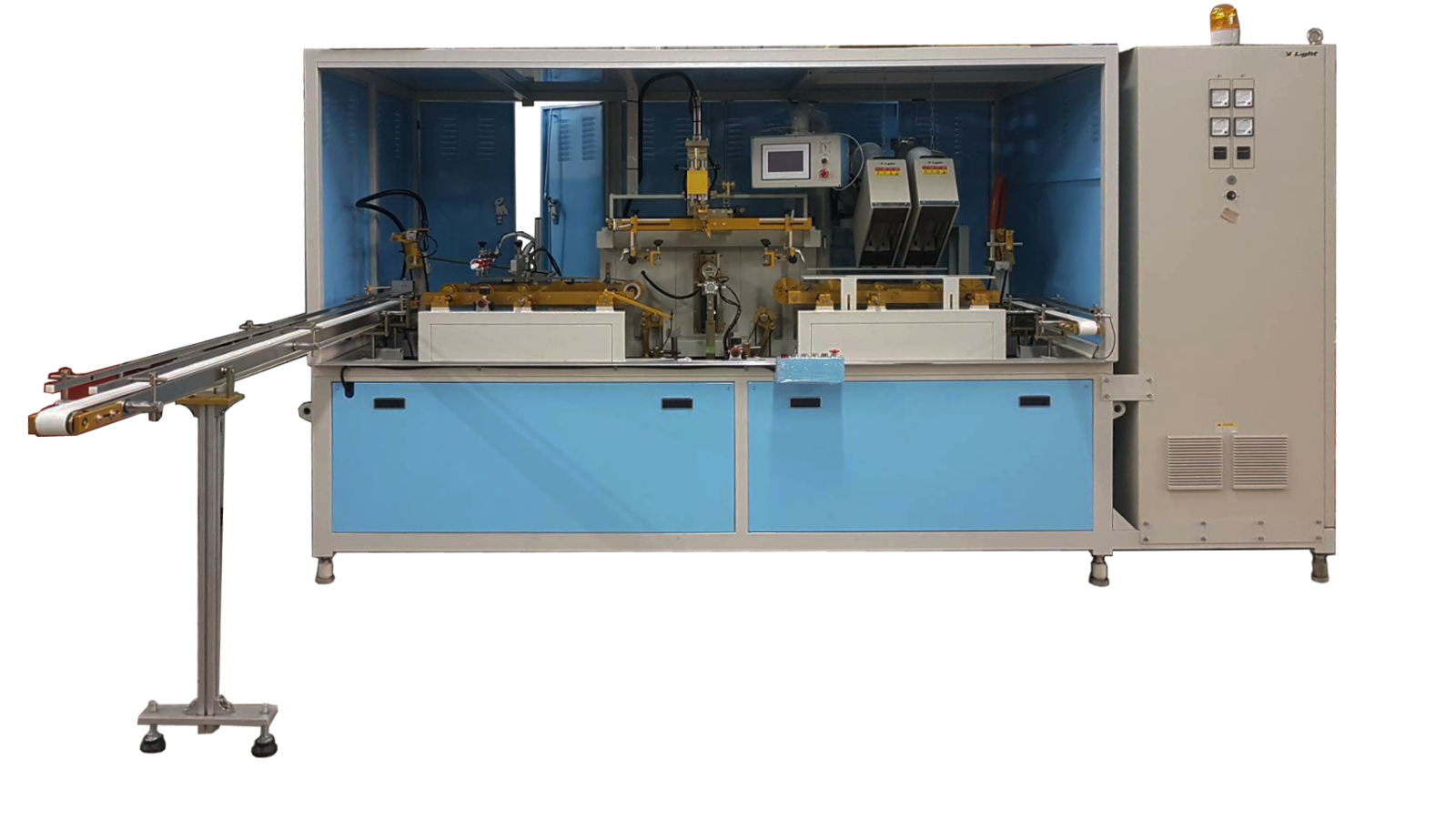

  • Monochrome model: WE1-400TR
    Power consumption: Approx. 3KW 220V, 60HZ, 3PHASES
    (Without UV Dryer)
  • Air consumption: Approx. 300 1/min
    Gas consumption: Approx. 2.2 1/min
    Speed: 3,000 - 5,400 cycles/hr
    Printing length: 30 ~ 300 (mm)
    Round bottle printing (diameter / draft length): Max.100 / Max.320 (mm)
    Flat bottle printing (width / height / curvature radius): 20 ~ 180 / 20 ~ 120 / 30 ~ 220 (mm)
    Flat bottle printing (width / height): MAX.160 / MAX.120 (mm)
    Machine size (length x width x height): 3,050 x 1,550 x 2,000 (mm)
    Machine weight: Approx. 1,950 kgs

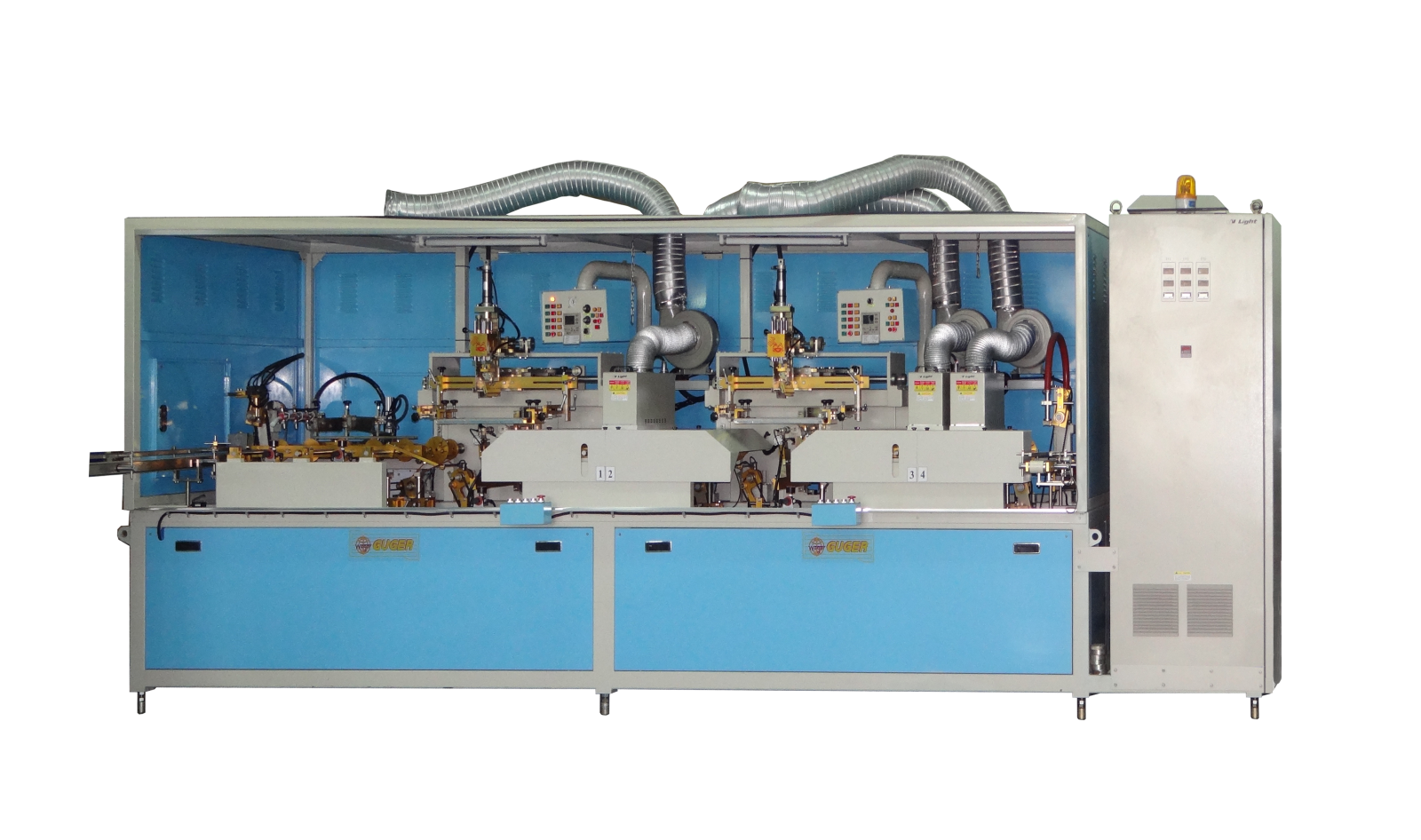

  • 2 color model: WE2-400TR
    Power consumption: Approx. 5KW 220V, 60HZ, 3PHASES (Without UV Dryer)
    Air consumption: Approx. 500 1/min
    Gas consumption: Approx. 3.5 1/min
    Speed: 3,000 - 5,400 cycles/hr
    Printing length: 30 ~ 300 (mm)
    Round bottle printing (diameter / draft length): Max.100 / Max.320 (mm)
    Flat bottle printing (width / height / curvature radius): 20 ~ 180 / 20 ~ 120 / 30 ~ 220 (mm)
    Flat bottle printing (width / height): MAX.160 / MAX.120 (mm)
    Machine size (length x width x height): 5,100 x 1,550 x 2,000 (mm)
    Machine weight: Approx. 3,950 kgs

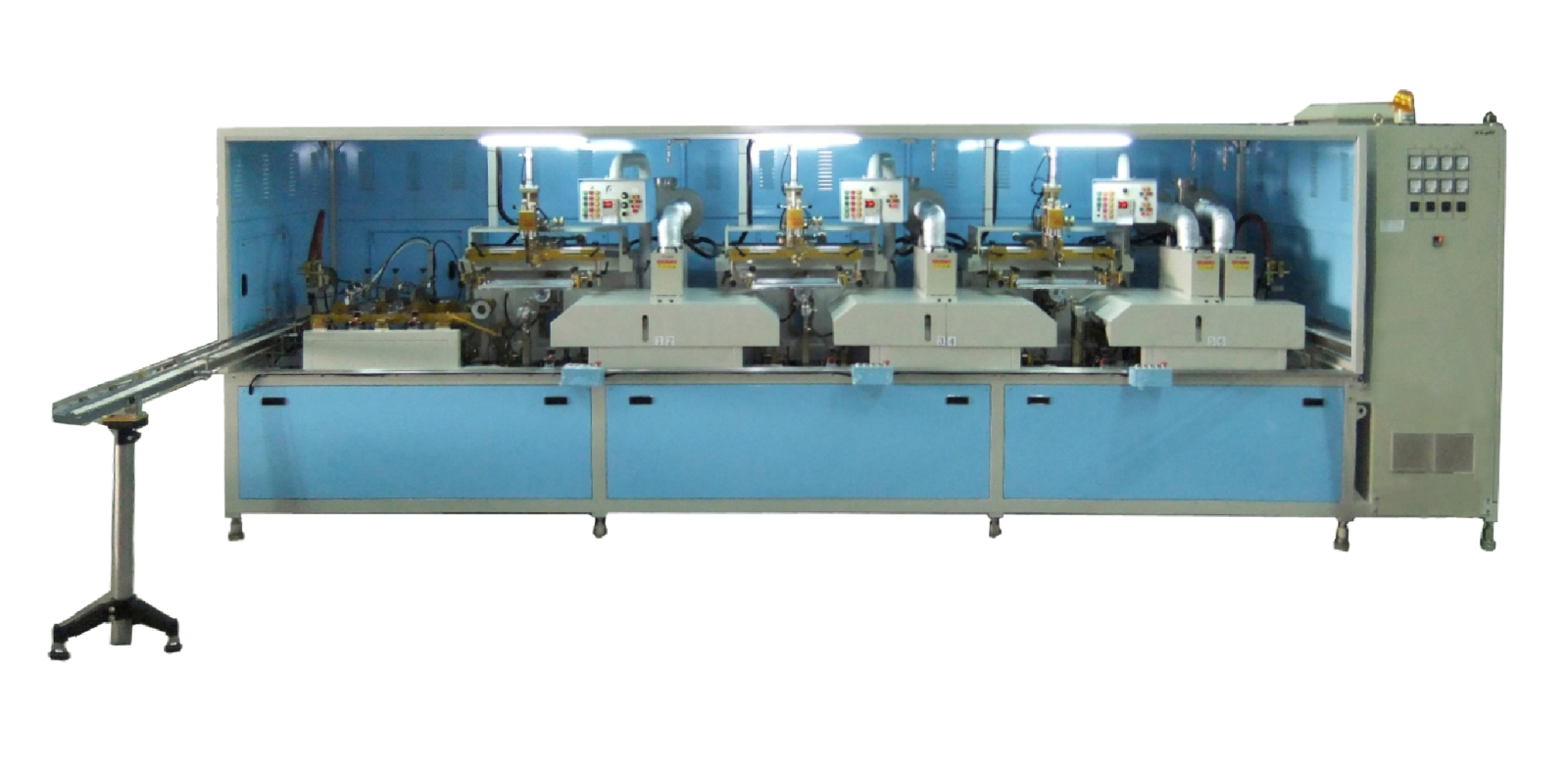

3 color model: WE3-400TR

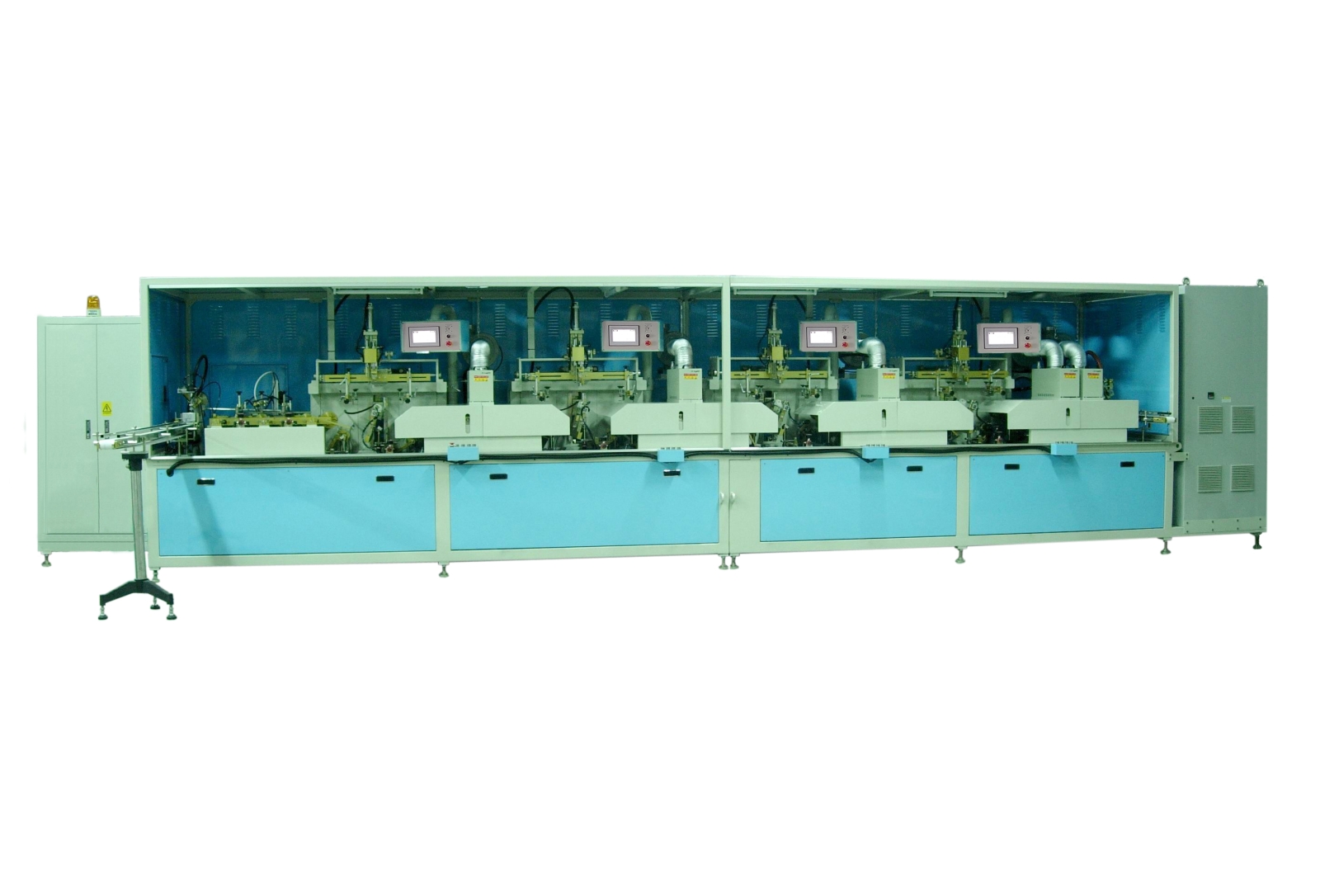

Four-color model: WE4-400TR
Power consumption
11KW 220V 60Hz 3Phases
Air consumption:1000L/min
Speed: 2500-4500 Cycles/hr

Printing size:
Round bottle printing diameter 100mm
Flat bottle printing radius 30-200mm
Printing length 60-300mm
Machine size/weight
8180*1580*1980 (length*width*height)mm
4500kg
