The control system adopts a digital microcomputer control system, which is easy to operate and contains a fault display system for easier maintenance.
The pneumatic parts are made of standard parts made in Taiwan, and the high function and low fault make the machine performance more superior.
The transmission system adopts Taiwanese bearings and shafts, which are wear-resistant and have a long service life.
The working platform can be fine-tuned in front and back, left and right, and inclination. It is easy to operate and can easily complete accurate color registration work.
The printing starting point can be selected on the left, and the ink-filling printing method is adopted to make the printing ink film thickness thinner.

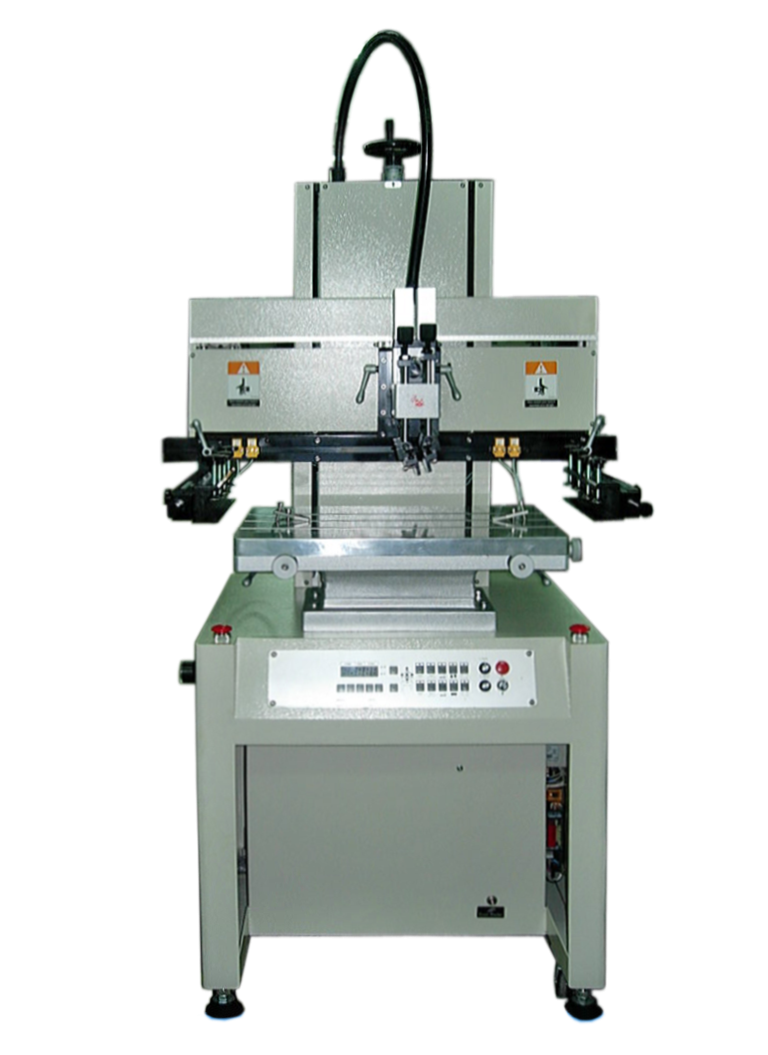

	Model: WE-400F2M Left and right stroke motor drive Up and down stroke with packaging Maximum printing area: 250 x 300mm Printing table area 320 x 500mm Maximum screen frame size 800 x 500mm Output/hour 600 ~ 1,000 Machine size (length x width x height) 650 x 880 x 1,700mm Net weight 210 Kg

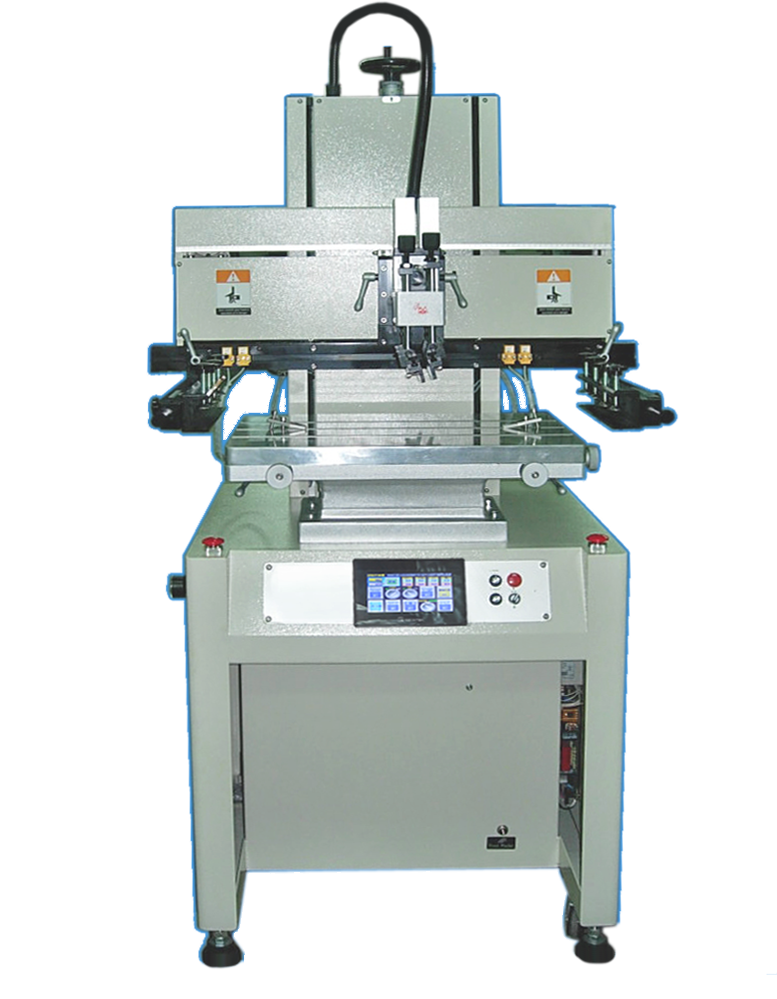

	Model: WE-400F2M-HMI Left and right stroke motor drive Up and down stroke with packaging Human machine touch interface (optional) Maximum printing area: 250 x 300mm Printing table area 320 x 500mm Maximum screen frame size 800 x 500mm Output/hour 600 ~ 1,000 Machine size (length x width x height) 650 x 880 x 1,700mm Net weight 210 Kg
	Model WE-650F2M Maximum printing area 400 x 550mm Printing table area 550 x 700mm Maximum screen frame size 1,050 x 700mm Output / hour 500 ~ 800 Machine dimensions (length x width x height) 1,500 x 1,060 x 1,800mm Net weight 420 Kg

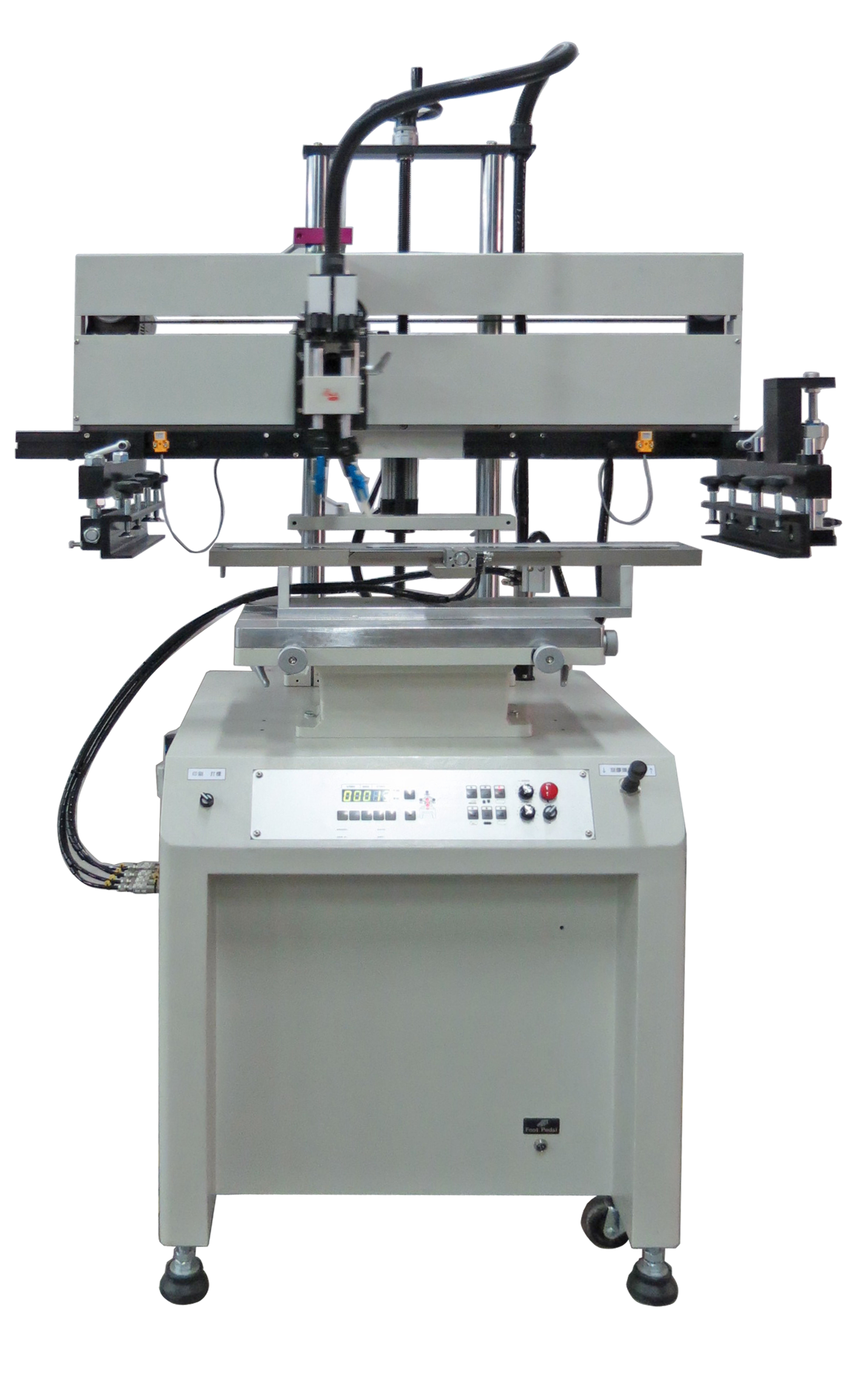

	WE-800F2M Maximum printing area: 300 x 700 (mm) Output/hour: 600 ~ 1,800 Machine dimensions (length x width x height): 1,000 x 1,000 x 1,650 (mm) Net weight: 300 kg
