Digital microcomputer touch screen automatic error detection control system.
The printing process is divided into four stages of stay time control.
The peripheral system control adopts Japanese Mitsubishi Electric PLC, which has large expandability, low failure rate and easy maintenance.
The transmission system uses pneumatic parts and bearings made in Taiwan.
The ink scraping system uses a cup-type ink collection system that is tasteless and odorless, reducing pollution and the number of ink adjustments, thereby increasing production and reducing defective rates.
This machine is suitable for mass production printing industry, and can save labor costs and improve printing quality. WE-9147 fully automatic ink cup printing machine (consistent operation of vibration material preparation ==> vibration feeding ==> printing ==> automatic material discharge ==> drying, fast and easy printing).

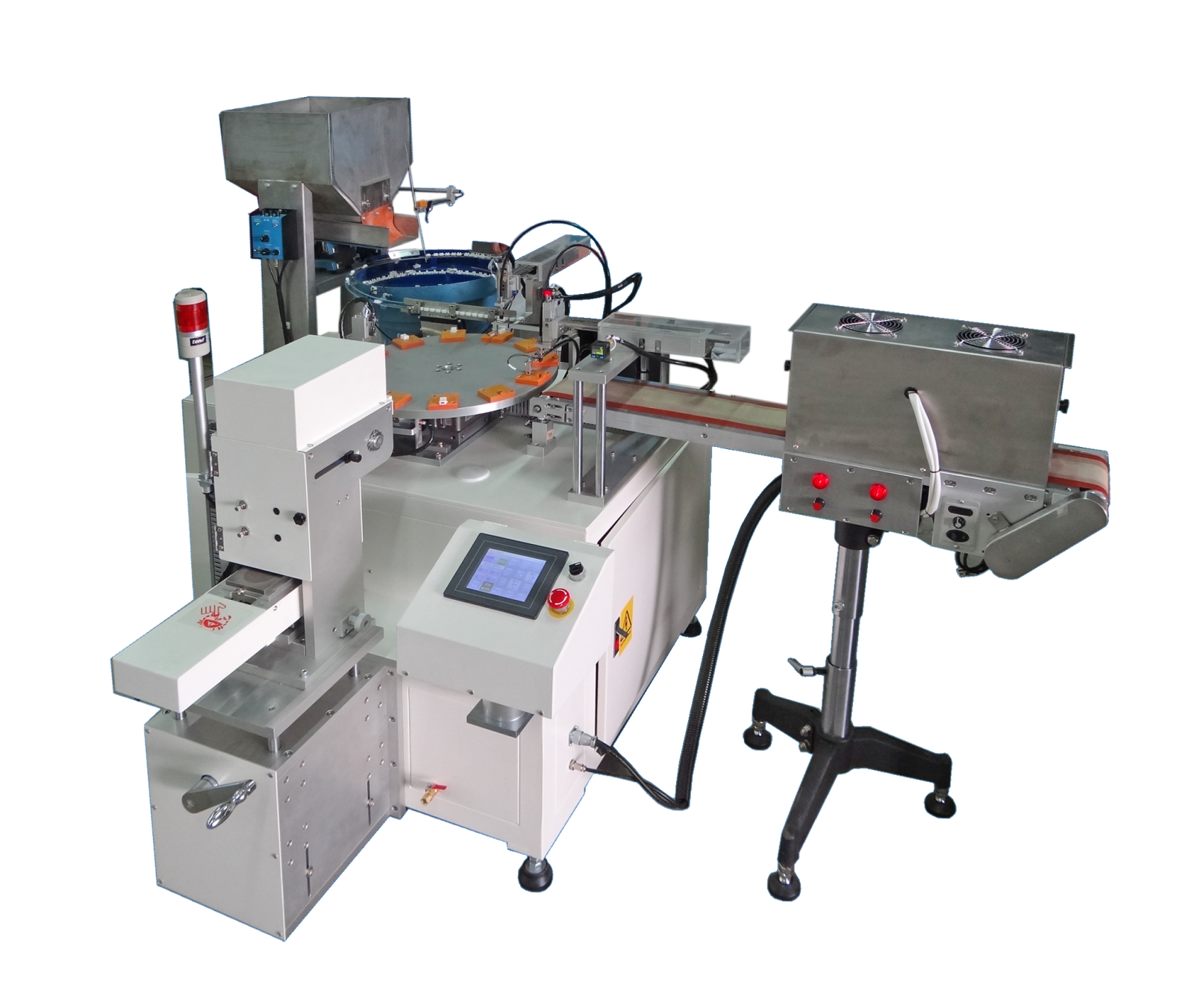

	WE-9147C Rotary index fixture type Process Color 1 Ink supply system: ink cup ∮60MM Operation interface: Touch panel Steel plate size: 90*200*10mm Maximum printing area: ∮45mm Pad vertical rotation angle: 90 degrees Pad up and down stroke: 50mm Output/hour: 900~1200 Machine size: 2,000 x 1,800 x 1,700mm Net weight: 250kg

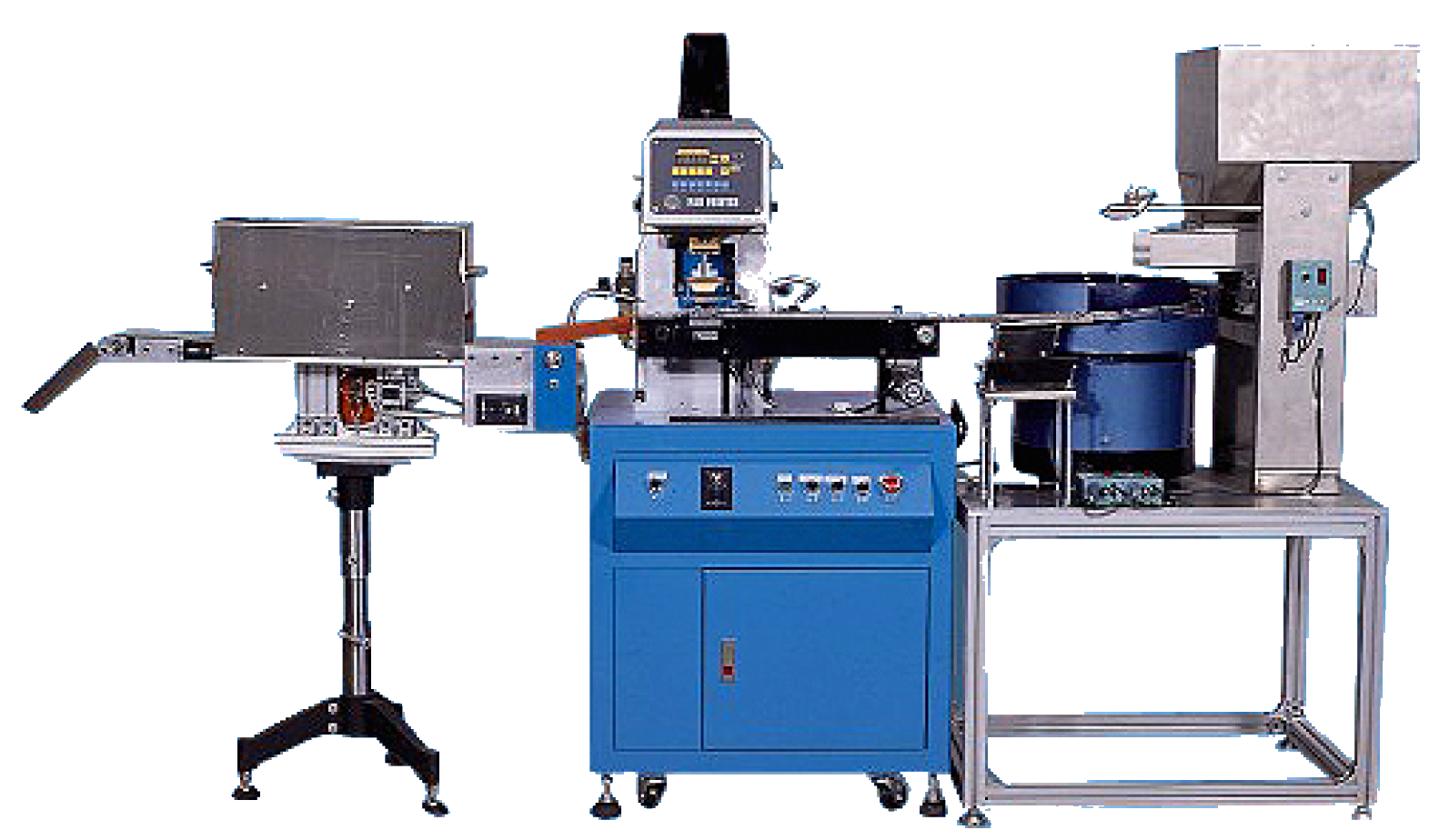

	WE-9147SL1 Straight conveyor type Printing color: 1 Operation interface: membrane button (optional HMI touch panel) Ink supply method: Ink cup ∮60mm Steel plate size: 90*200*10mm Maximum printing area: ∮45mm Pad front and rear stroke: 125mm Pad up and down stroke: 50mm Output/hour 1,200 ~ 2,100 Machine dimensions (L x W x H) 2,000 x 1,000 x 1,700 mm Net weight : 200 kg

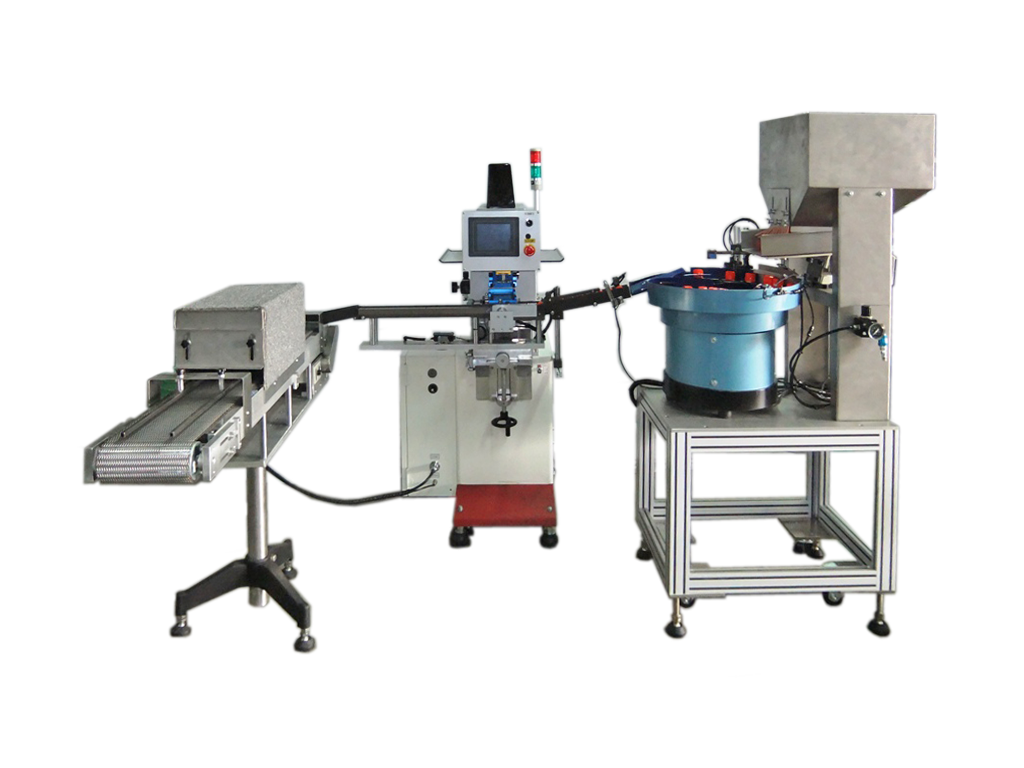

	WE-9147SL2 Straight conveyor type Printing color: 1 Operation interface: HMI touch panel Ink supply method: Ink cup ∮60mm Steel plate size: 90*200*10mm Maximum printing area: ∮45mm Pad front and rear stroke: 125mm Pad up and down stroke: 50mm Output/hour 1,200 ~ 2,100 Machine dimensions (L x W x H) 2,000 x 2,000 x 1,700mm Net weight 200 kg
