Multi-color pad printer

Multicolor oval turntable pad printing machine

WE-BY 3~6

Multi-color pad printer

Multicolor oval turntable pad printing machine

Oval turntable conveyor, hot air device, HMI control, pad printing color registration

WE-BY 3~6

Applicable for

Mobile phone cases, electrical appliance shells, plastic products, sports equipment, toys, electronic products, stationery, accessories, lighters and other plastics, metal finished products, semi-finished products and ceramic glass products and other uneven surfaces.

Add to inquiry list

Product Features

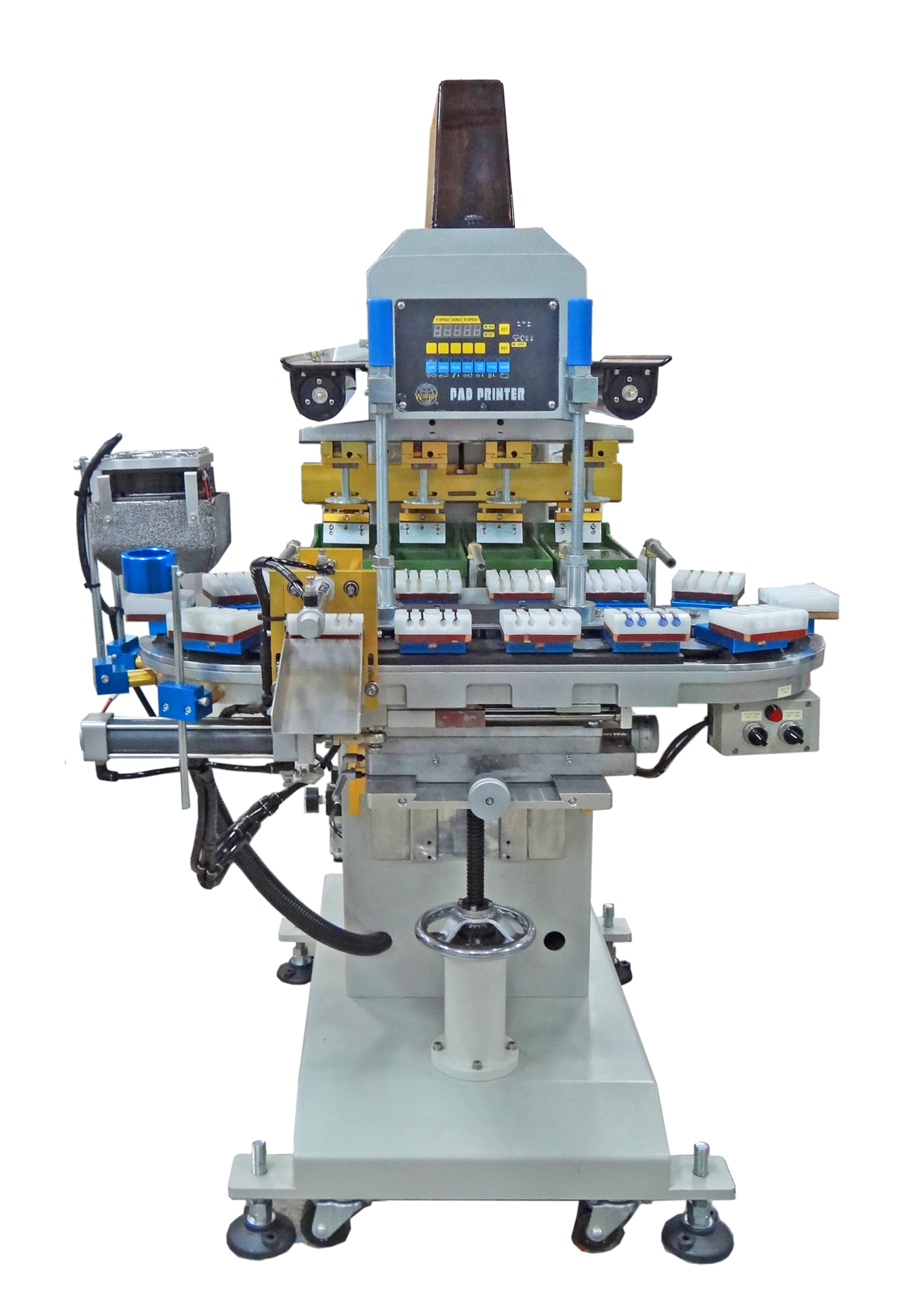

	WE-164BY14 Printing color: 4 Number of turntable stations: 14 Operation interface: membrane button (optional human-machine interface) Ink supply method: 4-inch ink tray Steel plate size 11014010mm Maximum printing area: ∮70mm Paste head front and rear stroke: 200mm Paste head up and down stroke: 80mm With hot air device including temperature controller Lighting equipment installed on both sides of the machine Output/hour: 600~1,200 Machine size (length x width x height): 1,100 x 1,100 x 1,550mm Net weight: 250kg Digital microcomputer touch automatic error detection control system. The printing process is divided into four sections of dwell time control. The separate ink tray and movable scraper group can be adjusted independently. It can accurately print 4 colors. The conveyor plate adopts an independent cylinder positioning system for accurate positioning.

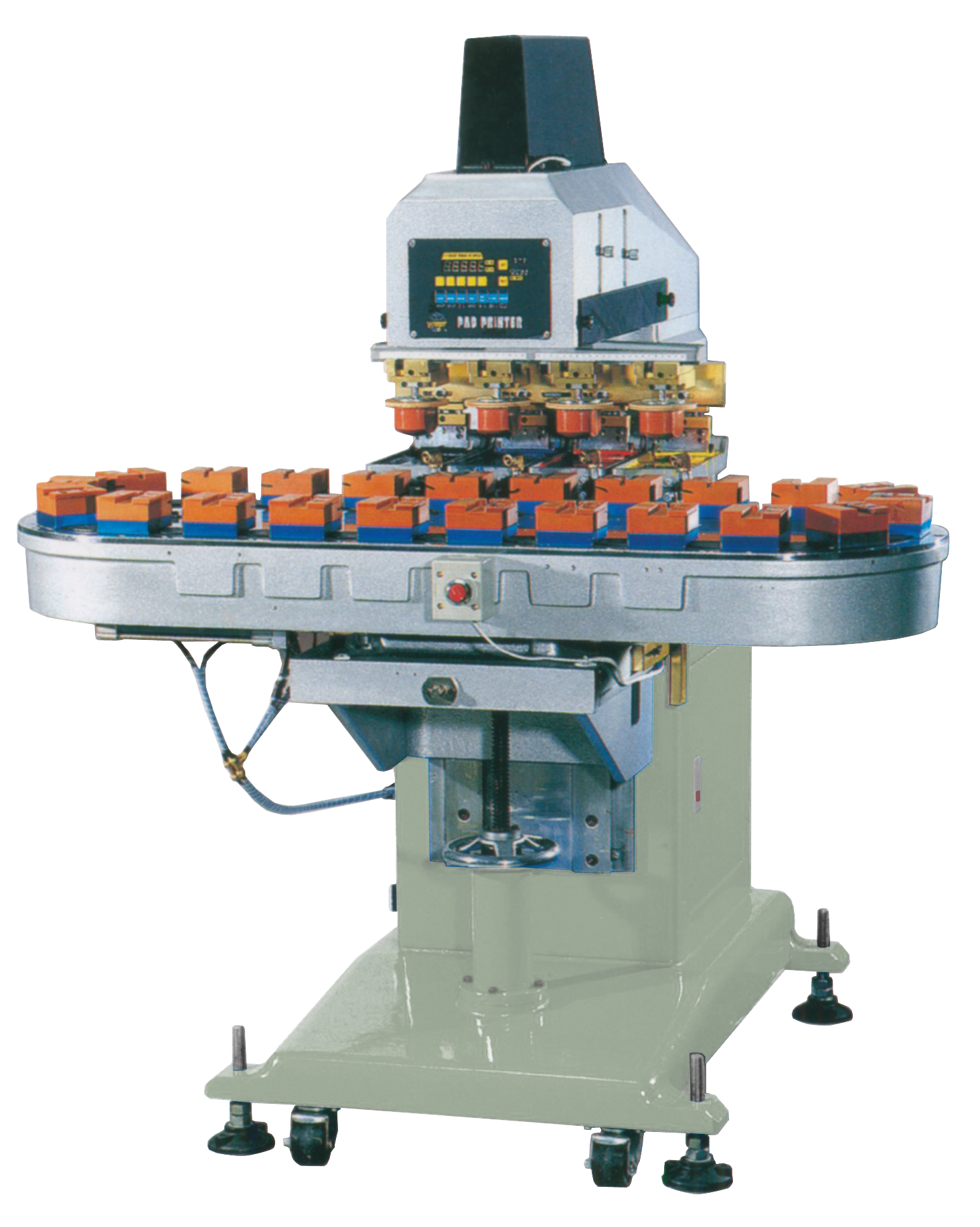

	WE-164BY22 Printing color: 4 Number of turntable stations: 22 Operation interface: membrane button (optional human-machine interface) Ink supply method: 4-inch ink tray Steel plate size 11014010mm Maximum printing area: ∮70mm Pad head front and rear stroke: 200mm Pad head up and down stroke: 80mm With hot air device including temperature controller Output/hour: 600~1,200 Machine size (length x width x height): 1,500 x 1,300 x 1,650mm Net weight: 300kg Digital microcomputer touch automatic error detection control system. The printing process is divided into four sections of dwell time control. The separate ink tray and movable scraper group can be adjusted independently. It can accurately print 4 colors. The conveyor plate adopts an independent cylinder positioning system for accurate positioning.

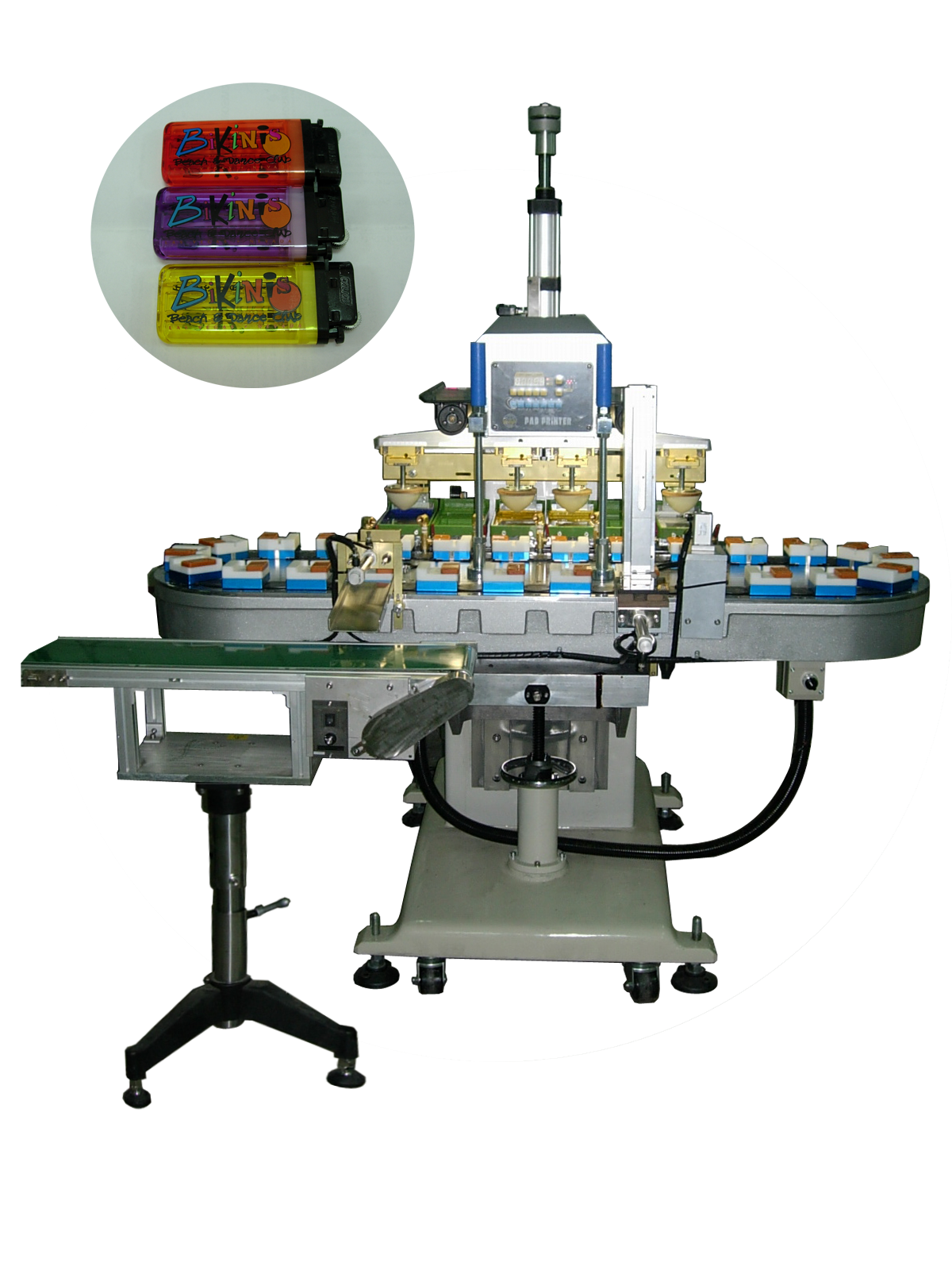

	WE-166BY26 Printing color: 6 Number of turntable stations: 26 Operation interface: membrane button (optional human-machine interface) Ink supply method: 4-inch ink tray Steel plate size 11014010mm Maximum printing area: ∮70mm Paste head front and rear stroke: 200mm Paste head up and down stroke: 80mm double-head double-force cylinder, stroke can be fine-tuned. Output/hour: 600~1,200 Machine size (length x width x height): 1,600 x 1,600 x 1,550mm Net weight: 350kg Digital microcomputer touch automatic error detection control system. The printing process is divided into four sections of dwell time control. The separate ink tray and movable scraper group can be adjusted independently. It can accurately perform 4-color color printing. The conveyor plate adopts an independent cylinder positioning system for accurate positioning. Lighting equipment is installed on both sides of the machine Equipped with hot air device including temperature controller Automatic feed chute Automatic return rake Small return conveyor belt

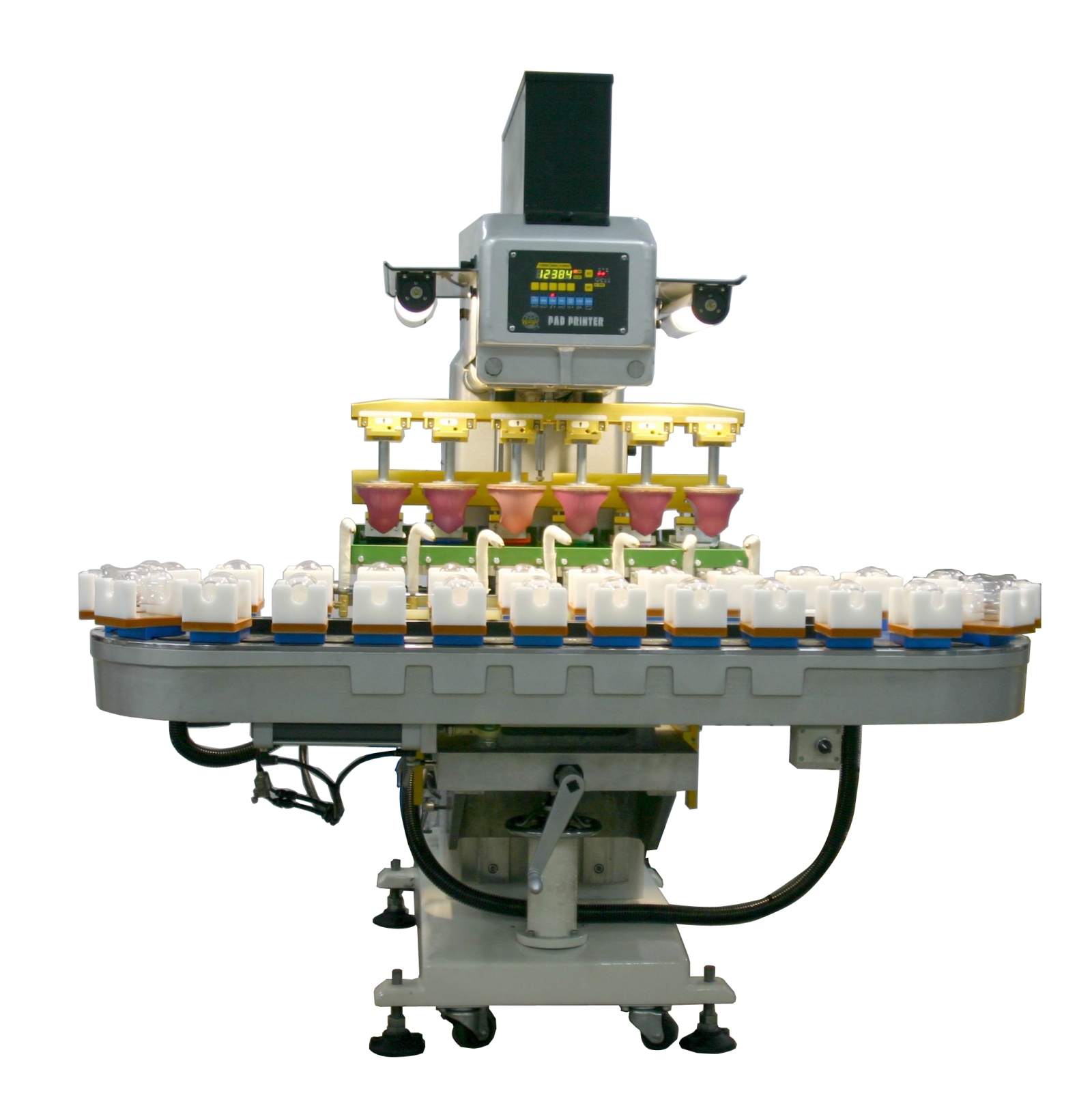

	WE-306BY26 Printing color: 6 Number of turntable stations: 26 Operation interface: membrane button (optional human-machine interface) Ink supply method: 4-inch ink tray Steel plate size 11015010mm Maximum printing area: ∮70mm Paste head front and rear stroke: 200mm Paste head up and down stroke: 80mm double-headed double-force cylinder, stroke can be fine-tuned. Output/hour: 600~900 Machine size (length x width x height): 1610×1760×1520mm Net weight: 820kg Suitable for printing on milk bottles and cans Manual filling → automatic printing → simple hot drying → manual material removal. The pneumatic parts of our company's machines are all imported originals, with guaranteed quality. Digital microcomputer control, four-stage dwell time, easy to operate. 26-station turntable, suitable for color registration and drying, convenient for material removal. The hot air device includes a temperature controller to help dry the workpiece. Lighting equipment is installed on both sides of the machine

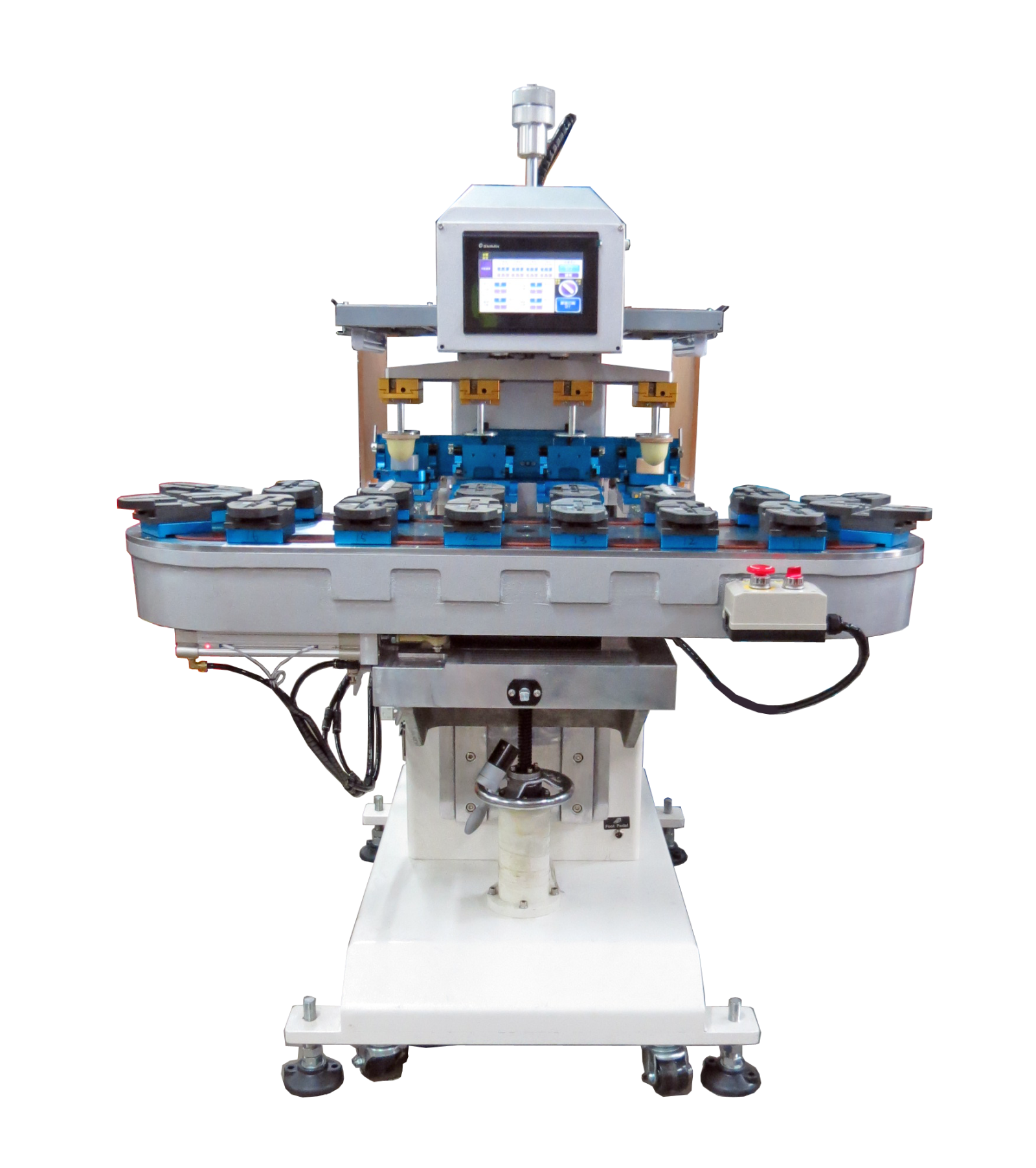

	WE-264BY16 Printing colors: 4 Number of turntable stations: 16 Ink supply system: ink cup ∮60 or ∮90mm Operation interface: human-machine touch panel or traditional membrane button Maximum steel plate size: 90x200x10 or 120×250x10mm Maximum printing area: ∮45mm/∮70mm Output/hour: 600~1200 Paste head front and rear stroke: 200mm +/-0.02 Paste head up and down stroke: 80mm double-head cylinder stroke can be fine-tuned Machine size: 1,500 x 1,200 x 1,600mm Net weight: 420kg Digital human-machine touch automatic error detection control system. The printing process is divided into four stages of dwell time control. The transmission system uses Taiwan-made pneumatic parts and bearings. The hot air device contains a temperature controller to assist in drying the workpiece. Safety gates installed on both sides (optional)

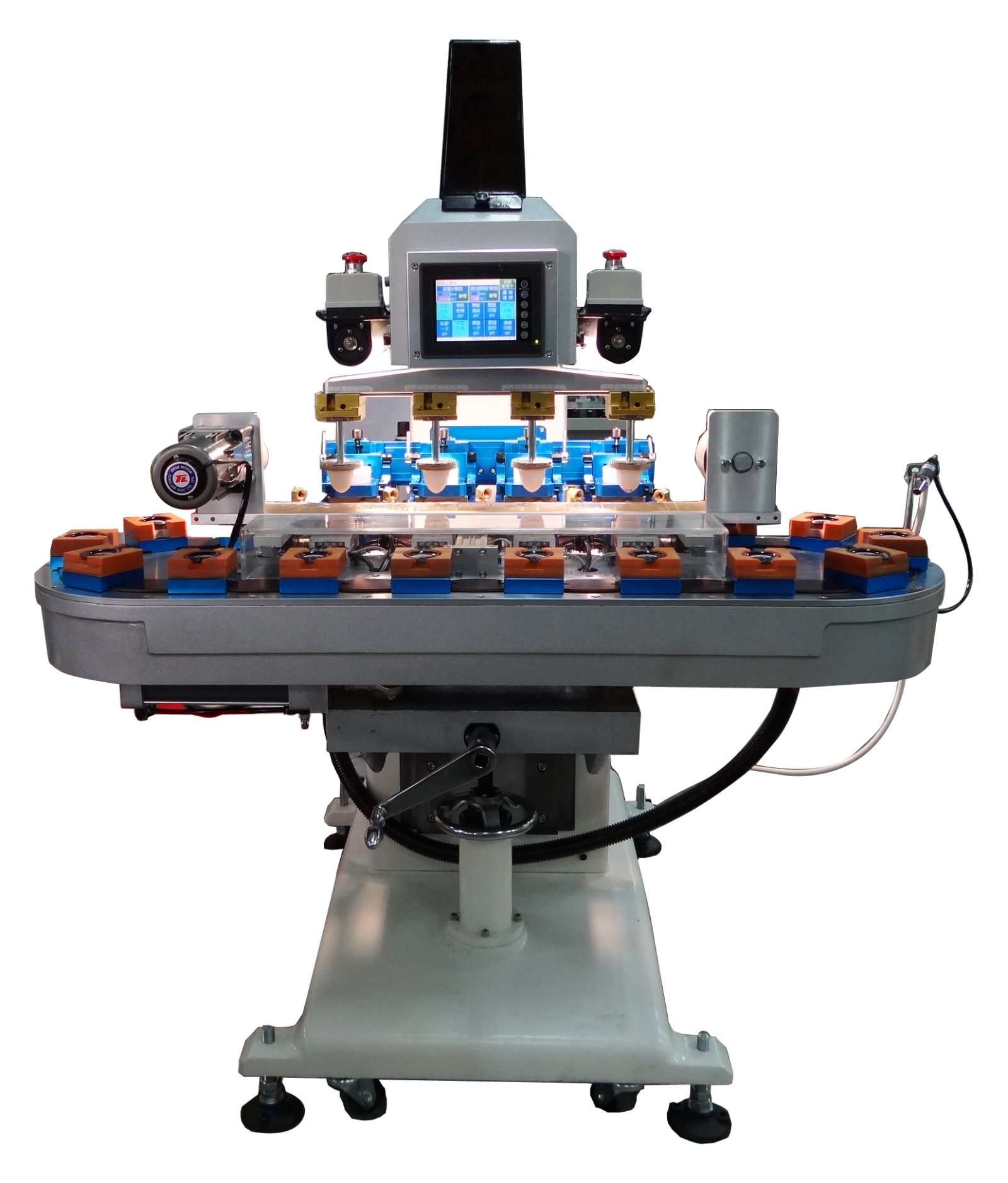

	WE-264BY18T Printing colors: 4 Number of turntable stations: 18 Ink supply system: ink cup ∮60 or ∮90mm Operation interface: human-machine touch panel Maximum steel plate size: 90x200x10 or 120×250x10mm Maximum printing area: ∮45mm/∮70mm Output/hour: 600~1200 Pad head front and rear stroke: 200mm +/-0.02 Pad head up and down stroke: 80mm Machine size: 1,500 x 1,200 x 1,600mm Net weight: 450kg Digital human-machine touch automatic error detection control system. The printing process is divided into four sections of dwell time control. The transmission system uses Taiwan-made pneumatic parts and bearings. The hot air device contains a temperature controller to assist in drying the workpiece. Lighting equipment is installed on both sides Equipped with an ink removal device to remove residual ink on the glue head.

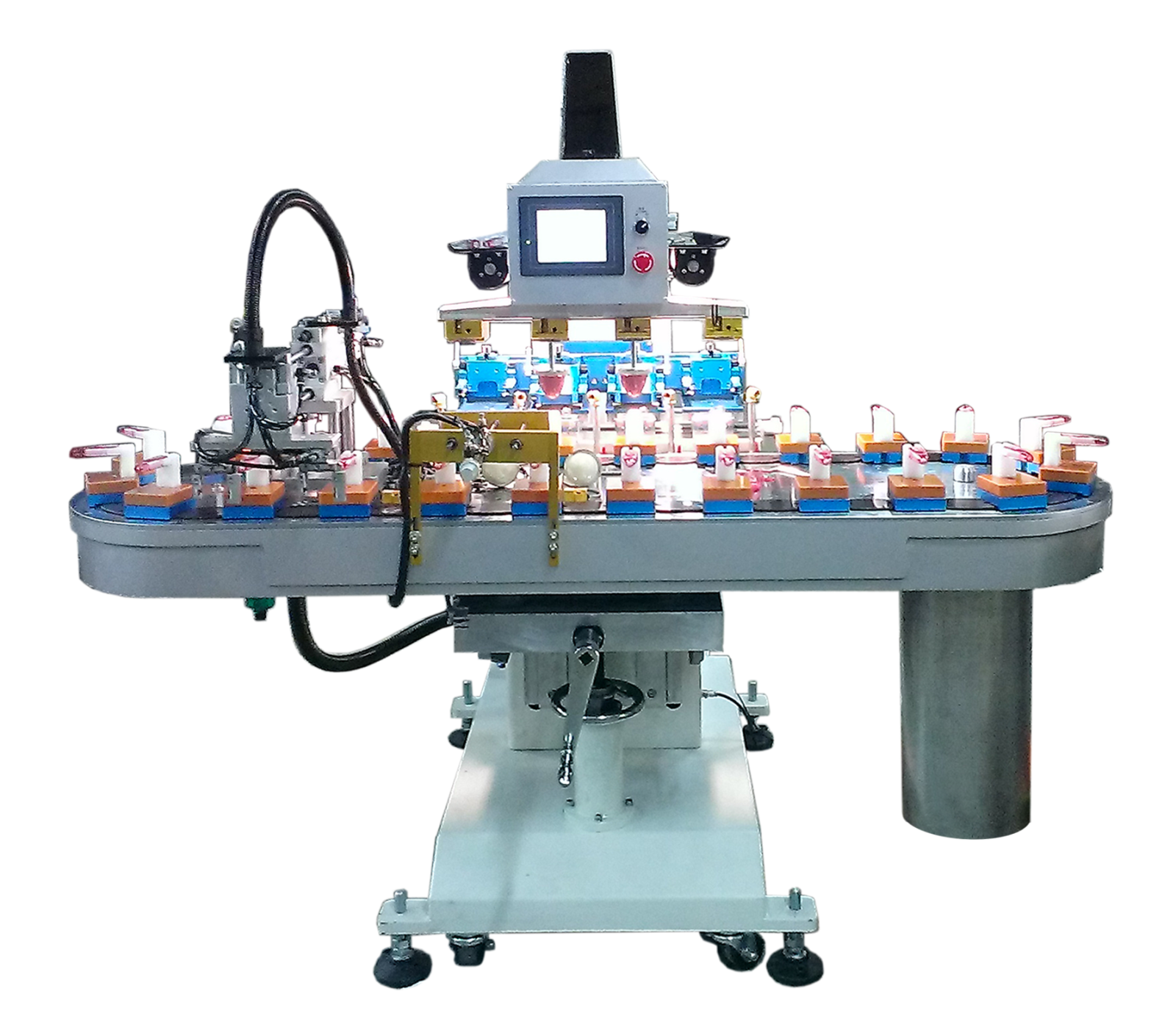

	WE-264BYD26U Printing colors: 4 Number of turntable stations: 18 Ink supply system: ink cup ∮60 or ∮90mm Operation interface: human-machine touch panel Maximum steel plate size: 90x200x10 or 120×250x10mm Maximum printing area: ∮45mm/∮70mm Output/hour: 600~1200 Pad head front and rear stroke: 200mm +/-0.02 Pad head up and down stroke: 80mm Machine size: 1,500 x 1,200 x 1,600mm Net weight: 450kg Digital human-machine touch automatic error detection control system. The printing process is divided into four sections of dwell time control. The transmission system uses Taiwan-made pneumatic parts and bearings. The hot air device contains a temperature controller to assist in drying the workpiece. Lighting equipment is installed on both sides Equipped with an ink removal device to remove residual ink on the glue head.

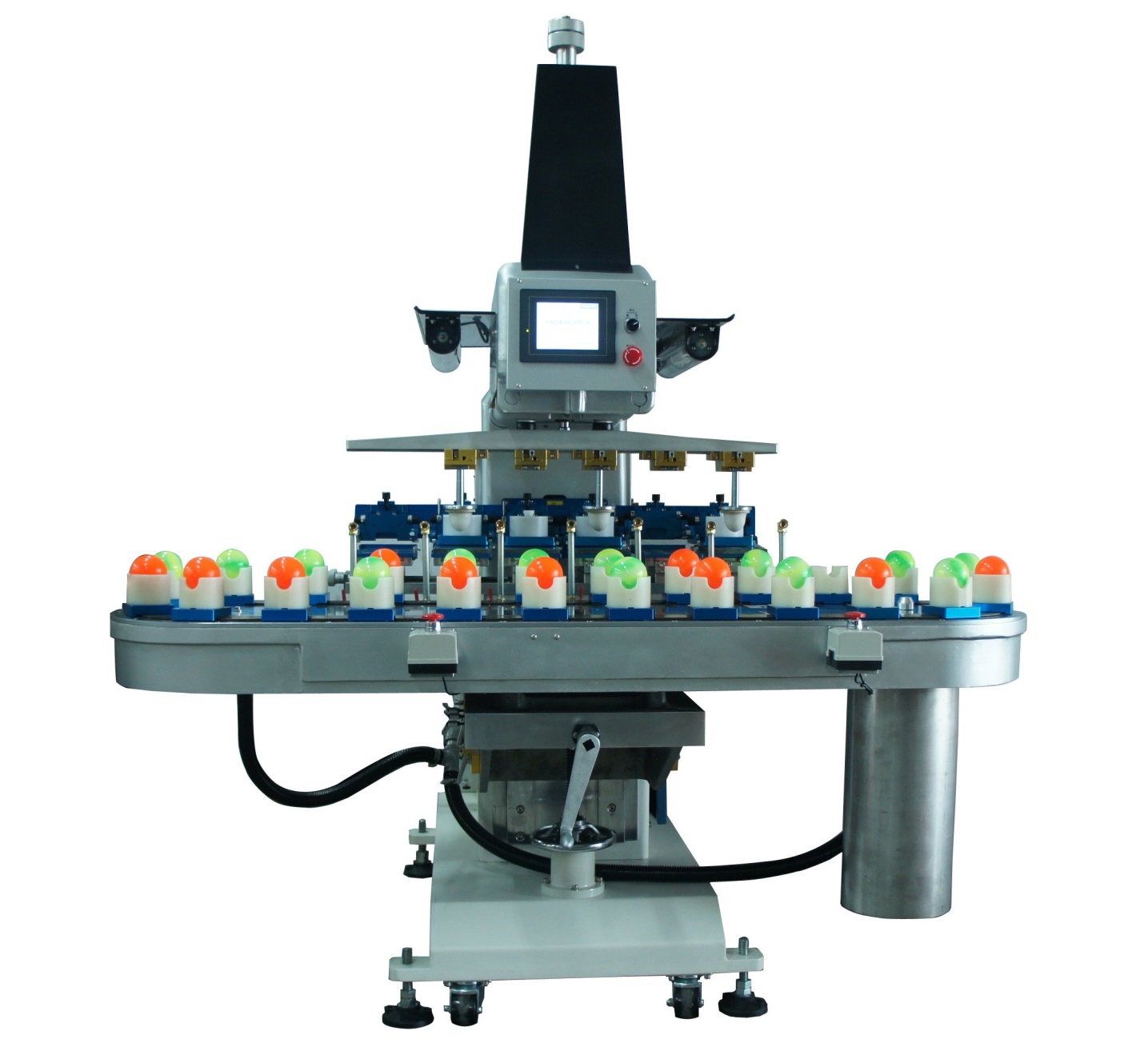

	WE-236BYD24 Printing colors: 6 (when 3 colors, the turntable moves 2 stations at a time) Number of turntable stations: 24 servo motor drive Operation interface: human-machine interface touch screen Ink supply method: ink cup ∮90mm Steel plate size: 120×320×12mm Maximum printing area: ∮70mm Paste head front and rear stroke: 300mm Paste head up and down stroke: 125mm Double-head cylinder stroke can be fine-tuned Lighting equipment is installed on both sides of the machine With hot air device including temperature controller Output/hour 600~900 Machine size (length x width x height) 1800×1760×1520mm Net weight 600kg Manual filling → automatic color printing → simple hot drying → manual removal → 400~500pcs of milk bottles can be printed per hour. Digital microcomputer control, can do four-stage dwell time, easy to operate. 24-station turntable, servo motor driven, suitable for color registration and drying, convenient for material removal. Using imported pneumatic components and imported ink cups, stable quality, saving ink, saving solvents, easy to clean, no odor. Hot air device assists in drying the workpiece. Using dual air sources, each air source requires 5~6kg This machine uses 20A current and consumes 4KW

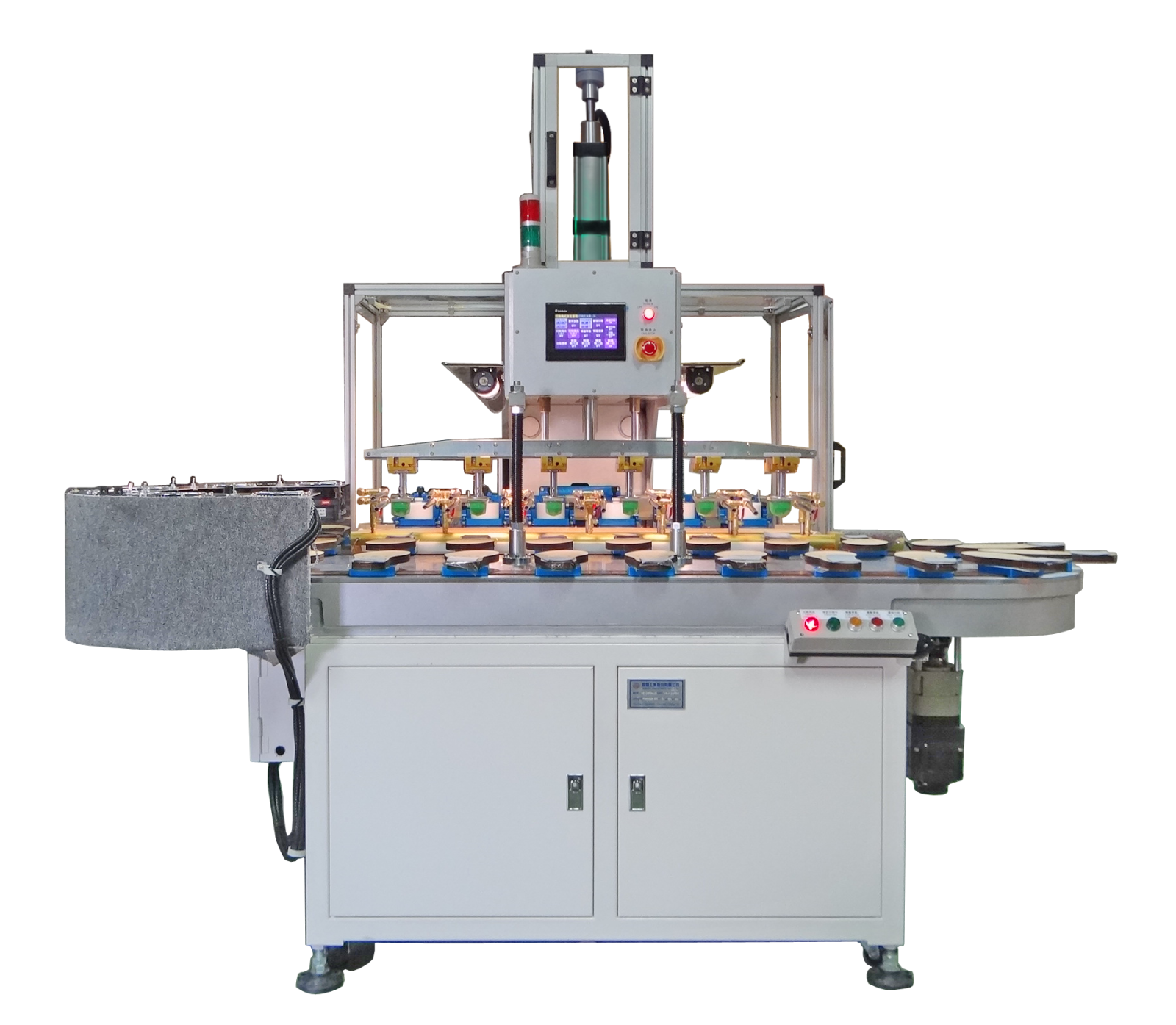

	WE-236BYD24-TW Printing colors: 6 (when printing in single color, the turntable moves 6 stations at a time) Number of turntable stations: 24 servo motor driven Operation interface: human-machine interface touch screen Ink supply method: ink cup ∮90mm Steel plate size: 120×320×12mm Maximum printing area: ∮75mm Paste head front and rear stroke: 300mm Paste head up and down stroke: 125mm Double-head cylinder stroke can be fine-tuned Lighting equipment is installed on both sides of the machine With hot air device including temperature controller + 6 sets of electric fans Output/hour 600~3,600 Machine size (length x width x height) 2055×1842×1764mm Net weight 700kg Front and rear printing displacement is driven by servo motor. Ink removal is centered and can be removed once for a certain number of printings Standard, automatic and semi-automatic (turntable is servo driven), which is the normal standard color registration action. The servo motor turntable can be set to 1, 2, 3, or 6 stations. The printing can be set to print 1-5 times before or after printing, and the turntable will rotate once. The turntable feeding action can choose one-station feeding, two-station feeding, three-station feeding, and six-station feeding, four modes. There are two sets of hot air pipes, one for blowing the glue head and one for blowing the printed material. The special positioning mechanism allows the printed material to be repeatedly printed, and the fonts are overlapped multiple times without offset, with good accuracy. Imported pneumatic components and imported ink cups are used, with stable quality, ink saving, solvent saving, easy cleaning, no odor, uniform printing color, environmental protection, and increased production capacity. The patented scraping mechanism is stable, smooth, and scrapes the ink cleanly.
