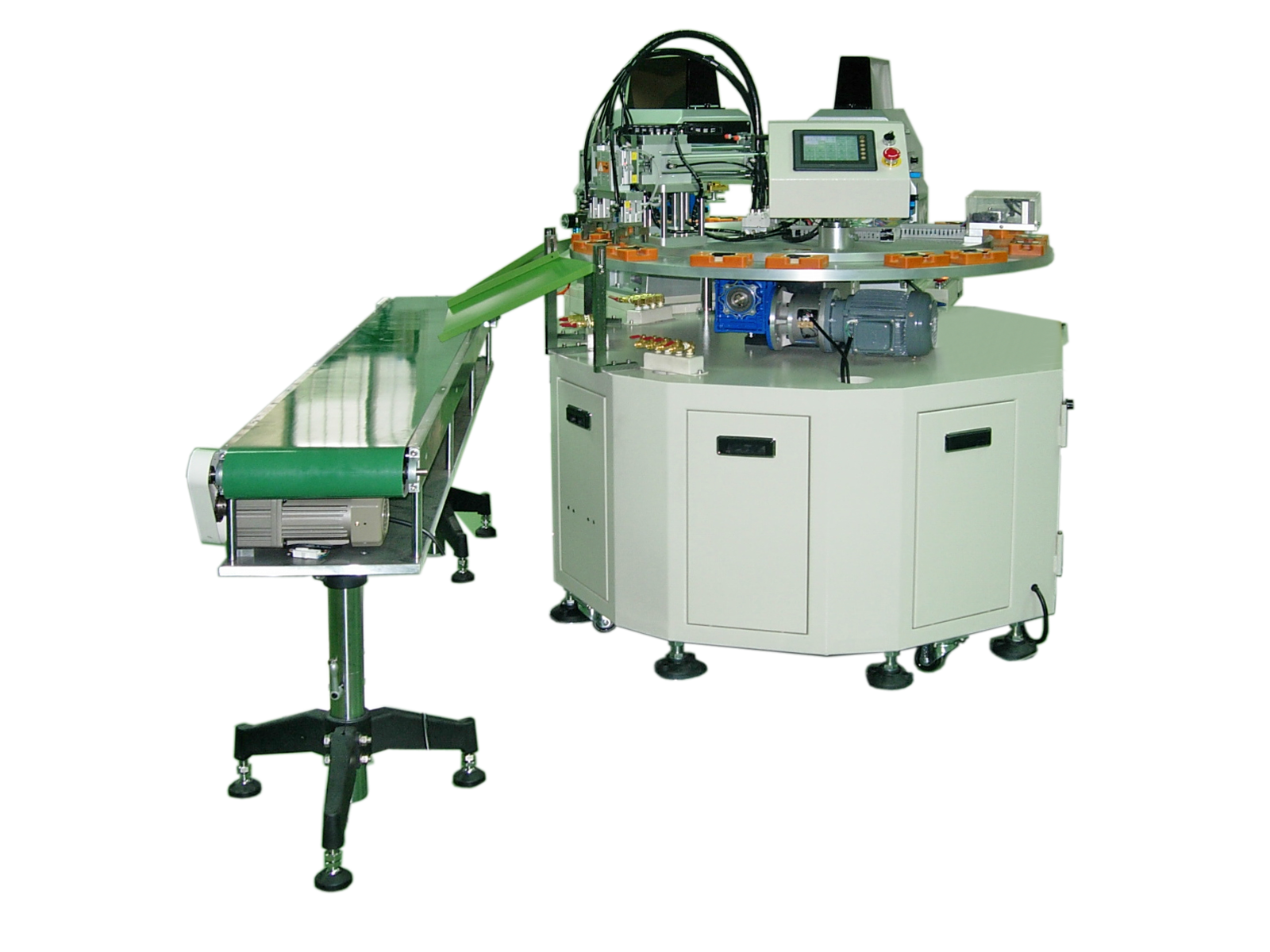

WE-254C

1. Manual filling → divider moves to the printing area for printing → printing → manual removal.
   Adopt Taiwan-made pneumatic components and imported ink cups, stable quality, save ink, save solvent, easy to clean, no odor, uniform printing color, environmental protection, and increased production capacity.
   PLC programmable and HMI human-machine interface, printing can control four-stage dwell time, maintenance is more convenient.
   The lighted device gives a clear view of the printing quality.
   Patented scraping mechanism, stable, smooth and clean.
   It can be printed in two colors or in single color.


   Process Color 4
   Ink supply system: ink cup ∮60MM
   Operation interface: Touch panel
   Steel plate size: 90*200MM
   Maximum printing area: ∮45mm
   Rubber head front and rear travel: 125mm +/-0.02
   Rubber head up and down travel: 50mm
   Output/hour: 900~1200
   Machine size mm: 2500*1500*1500
   Net weight: 350kg

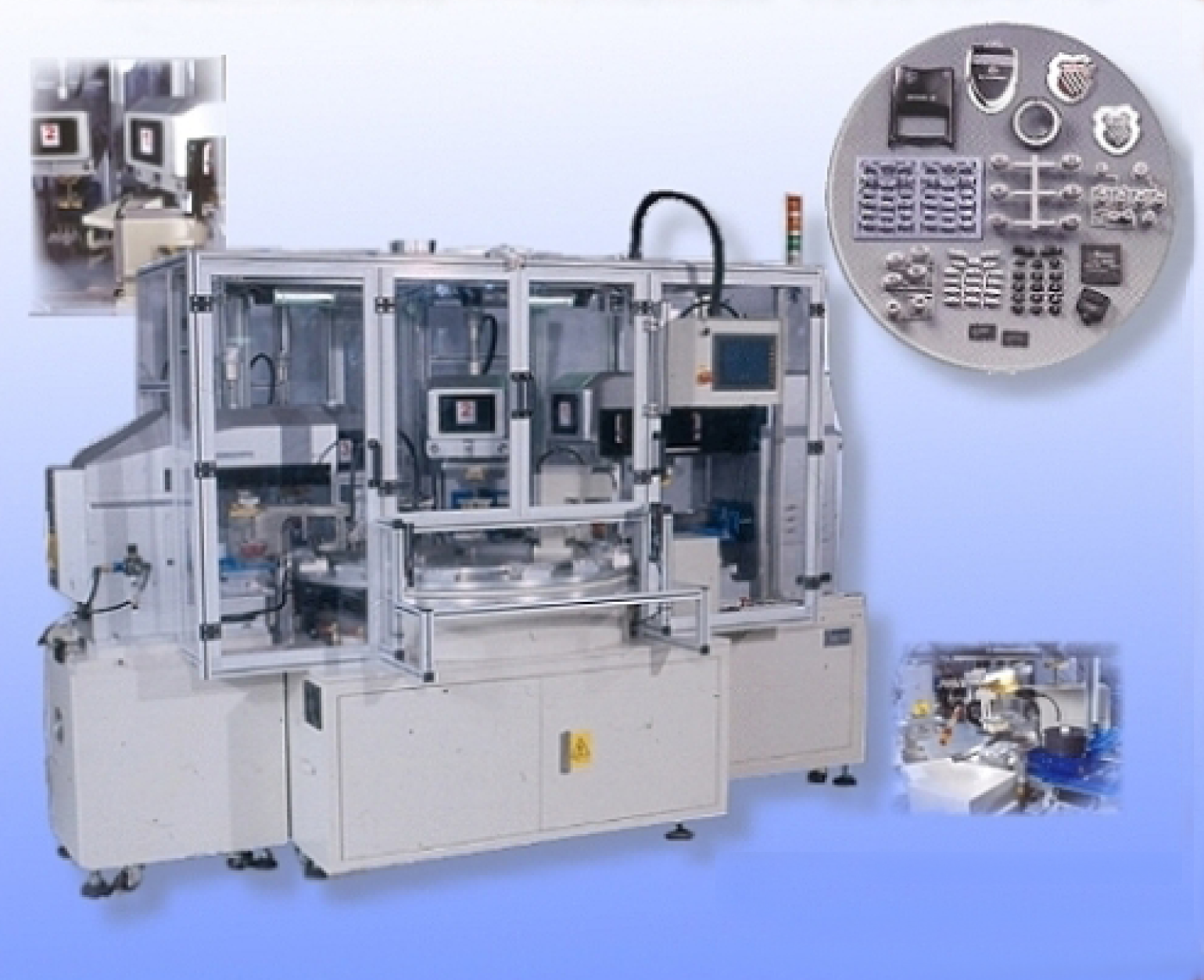

WE-9167

Process: The printed material is placed on the turntable manually, and the turntable automatically prepares to be transferred to the printing workstation. After electrostatic dust removal, the first color is printed, followed by hot air drying, and then transferred to the second printing workstation, and so on. Finally, the materials are taken out by a robotic arm and placed on a conveyor belt oven or manually. Complete this printing action.

1. Use imported ink cups, the ink is not easy to evaporate, the printing color is stable, it is easy to clean, and has no odor.
2. Use 300-type and 261-line large pad printers in combination to achieve a wider printing area.
3. Each single machine can be operated independently or selected for connection operation.
4. The steel plate position of each single machine can be adjusted arbitrarily, which is convenient for plate calibration.
5. The turntable uses a servo divider, which is suitable for high-precision processing operations.
6. Using Mitsubishi PLC, you can change or add actions according to the actual needs of the work site.

Printing colors: 4
Number of carousel stations: 18
Ink supply system: ink cup ∮90 or ∮120mm
Operation interface: Touch panel
Maximum steel plate size: 120×250x10 / 165 x 325x12 (mm)
Maximum printing area: ∮70mm/∮100mm
Output/hour: 600~1200
Pad front and rear travel: 200mm/300mm +/-0.02
Pad up and down travel: 80mm /125mm
Machine dimensions: 2,950 x 2,270 x 1,885mm
Net weight: 2500kg

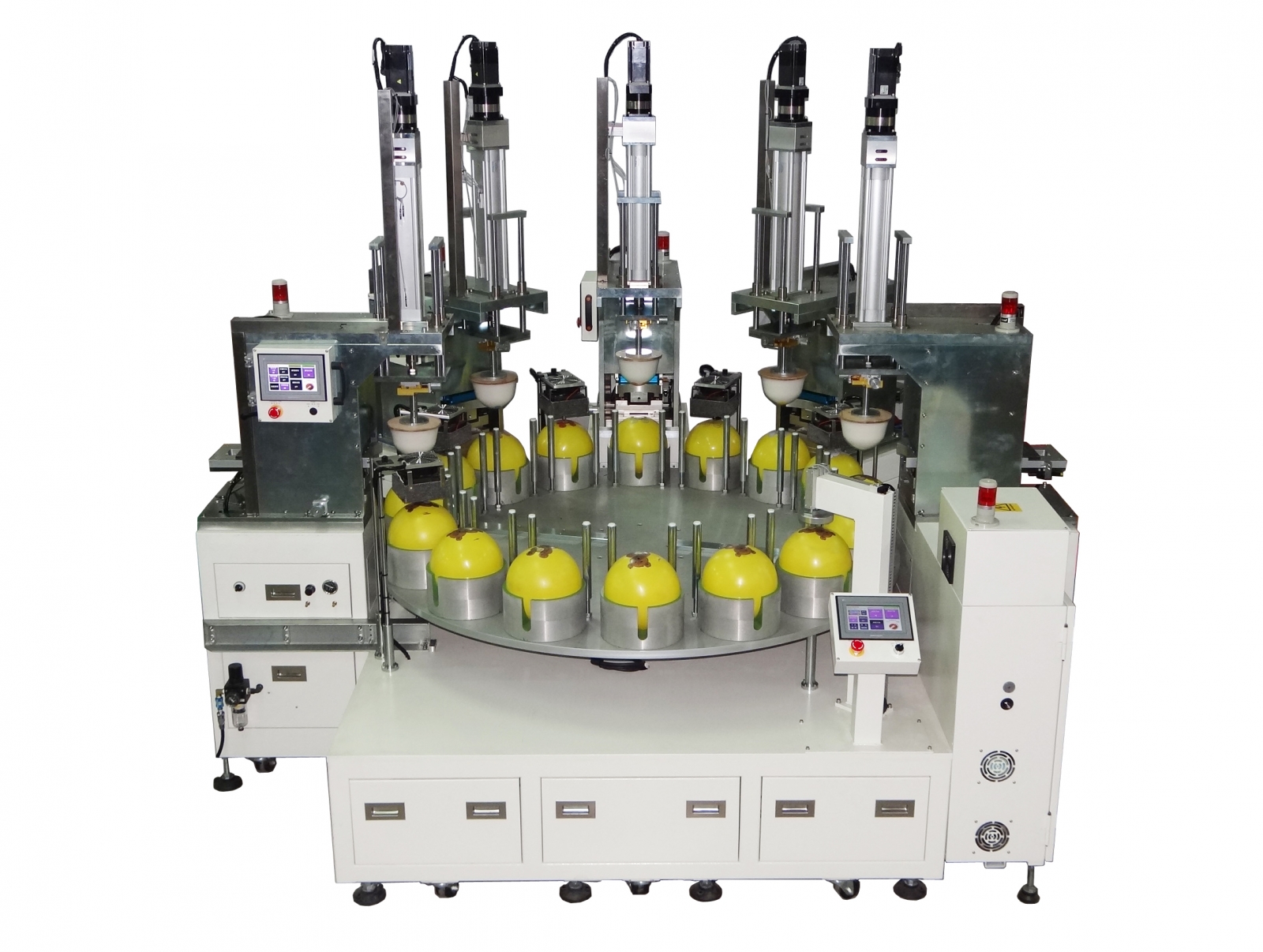

WE-9167AS

• Maunal l filling, automatic color printing, and manual removal to avoid collision and scratching of the ball surface.
  15~20pcs color printing can be done per minute.
  In order to strengthen the body and print on a larger area, the pad printer is assembled using metal plates.
  The pad printer uses up and down servo drive to print, and the height is adjusted by the human-machine interface, saving manpower and time.
  The steel plate is used for front and rear displacement transmission to prevent the rubber head from shaking in the air due to being too soft, which affects the printing accuracy and production efficiency.
  The Japanese-made large servo motor is used for printing positioning transmission, with excellent precision and no displacement during long-term use.
  Imported ink cups are used, which save ink and solvent, are easy to clean, have no odor, have stable printing color, are environmentally friendly, and increase production capacity.
  Steel plate size: 165×365×12(㎜)
  Maximum printing area ∮115mm
  Output/hour 900~1200PCS
  Machine size (length x width x height) 3927×3092×1700 (mm)
  Net weight 3200KG
  Model WE-9167-AS
  Process Color 5
  Ink supply method: Ink cup ∮130mm
  Operation interface HMI human machine touch panel

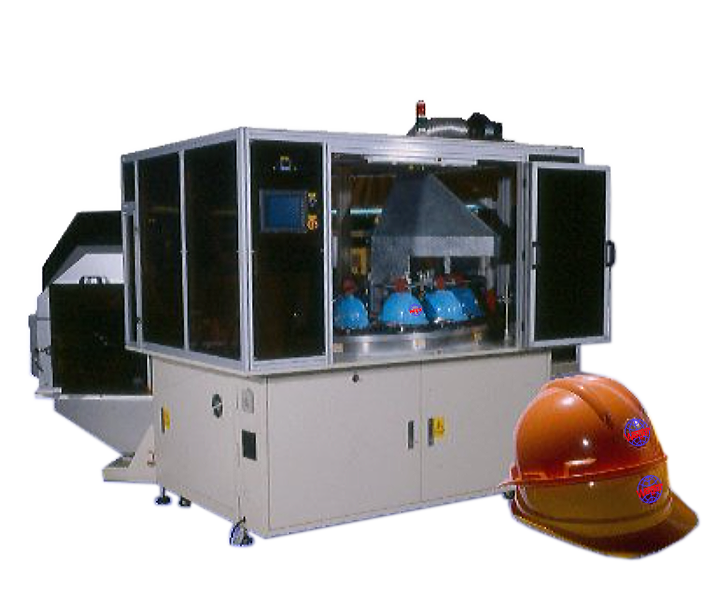

WE-9168

Suitable for printing all kinds of engineering hats and safety helmets.

Printing colors: 4
Ink supply method: Ink cup ∮90mm (sealed)
Operation interface HMI human machine touch panel
Use steel plate size 120x250x10 (mm)
Maximum printing area ∮75mm
Rubber head vertical stroke 80mm
Output/hour 300-600
Machine size (length x width x height) 330x300x220mm
Net weight 2800kg

It is assembled using 4 horizontal ink cup pad printing machines.
Imported ink cup 90Ø, tinplate can also be used, and 90Ø ceramic ink cup can be purchased separately for replacement.
Manual filling → Manual material removal (safety helmet printing).
The machine combination can be used for whole printing, 1-4 color color matching, all in one go.
Simple hot air can be used to dry the color during the color setting, making it convenient to do the color setting once without sticking.
Infrared hot air drying oven device helps to dry the workpiece.
The CNC fixture is movable and can be installed in the front, back, left, and right directions to match the color and change the angle without using any tools.
The flame treatment uses PE material, the ink is easy to adhere, and the hot air is discharged by the exhaust fan.
The machine is dust-proof packaged to prevent dust from falling and improve printing quality.
The human-machine interface electronic control can independently control one machine or multiple machines in a line. It also has a machine fault display and is easy to operate.
The printing speed depends on the size of the pattern and the loading and unloading of materials, and can produce 300-600 helmets per hour.
Special sensing device: when the operator takes or changes the workpiece, the machine will not start until the operator takes his hands off the machine, thus protecting the operator's safety.
