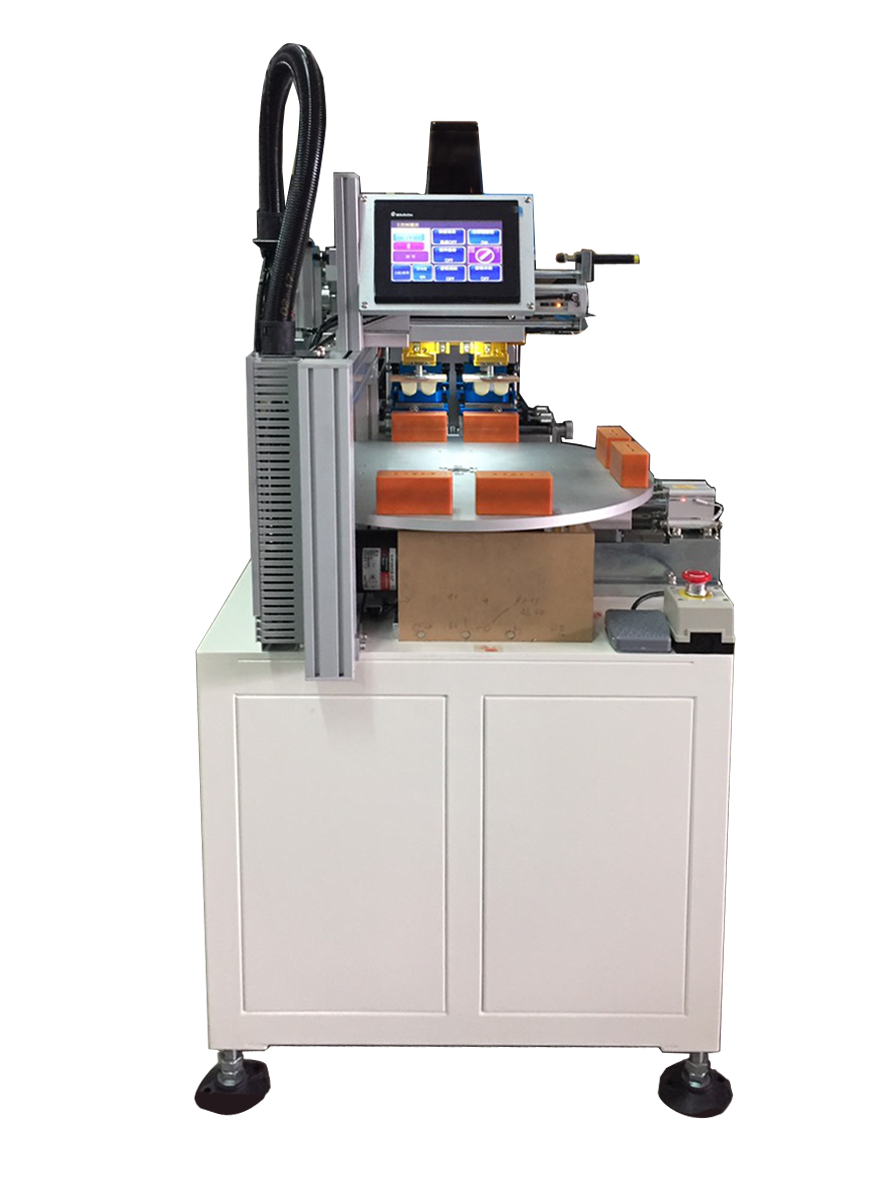

WE-252C

1. Manual filling → the divider is moved to the printing area for printing → printing → manual removal.
2. Using Taiwan made pneumatic components and imported ink cups, it has stable quality, saves ink and solvent, is easy to clean, has no odor, has uniform printing color, is environmentally friendly, and can increase production capacity.
3. PLC with HMI control, printing can control four dwell times, making maintenance more convenient.
4. The illuminated unit gives a clear picture of the printing quality.
5. The patented scraping mechanism is stable, smooth and clean.
6. It can be double-color overprinting or single-color printing.

• Print Color 2
• Ink supply system: ink cup ∮60MM
• Operation interface: Touch panel
• Steel plate size: 90*200MM
• Maximum printing area: ∮45mm
• Rubber head front and rear travel: 125mm +/-0.02
• Rubber head up and down travel: 50mm
• Output/hour: 900~1200
• Machine size mm: 750*500*1400
• Net weight: 150kg

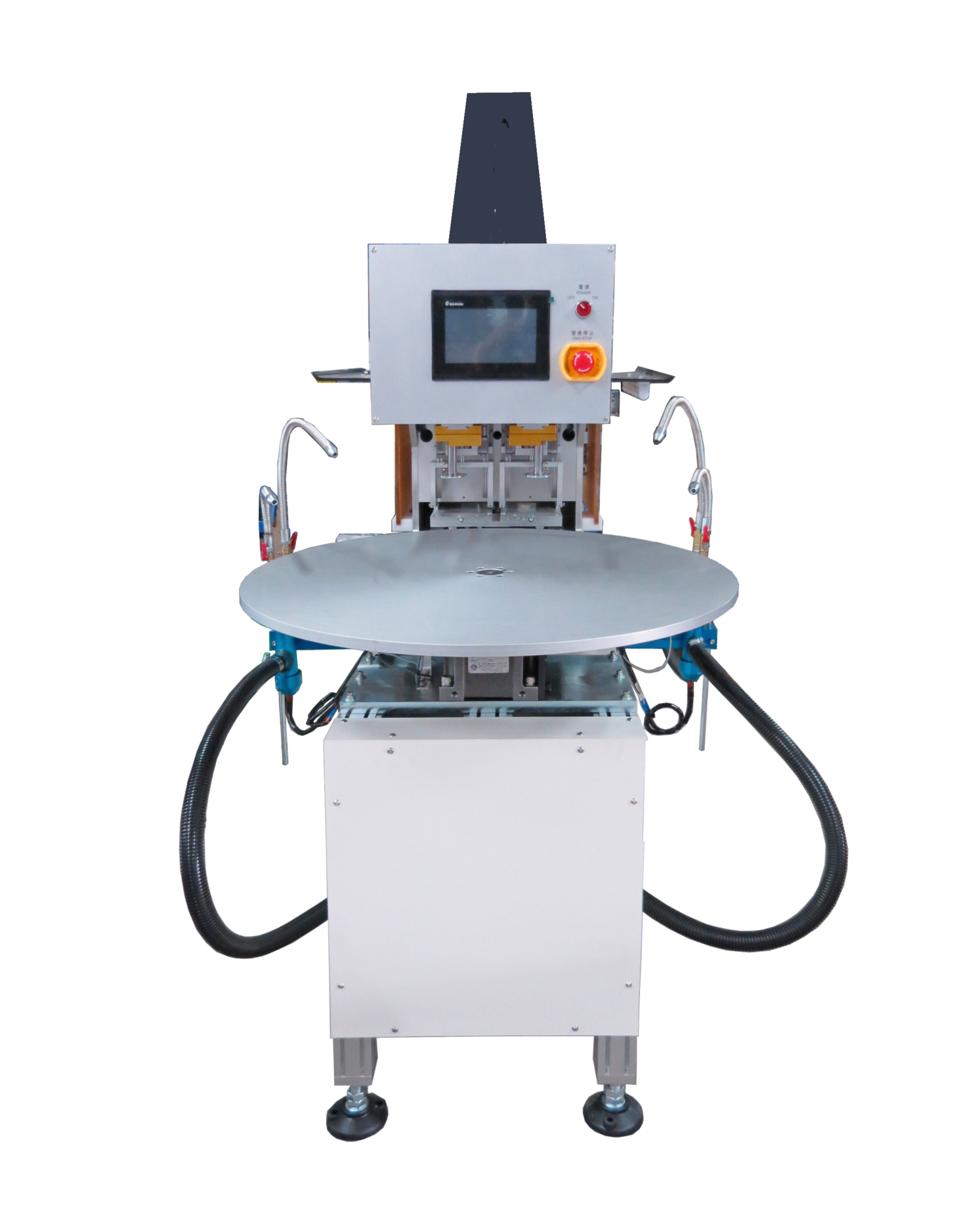

WE-262STC

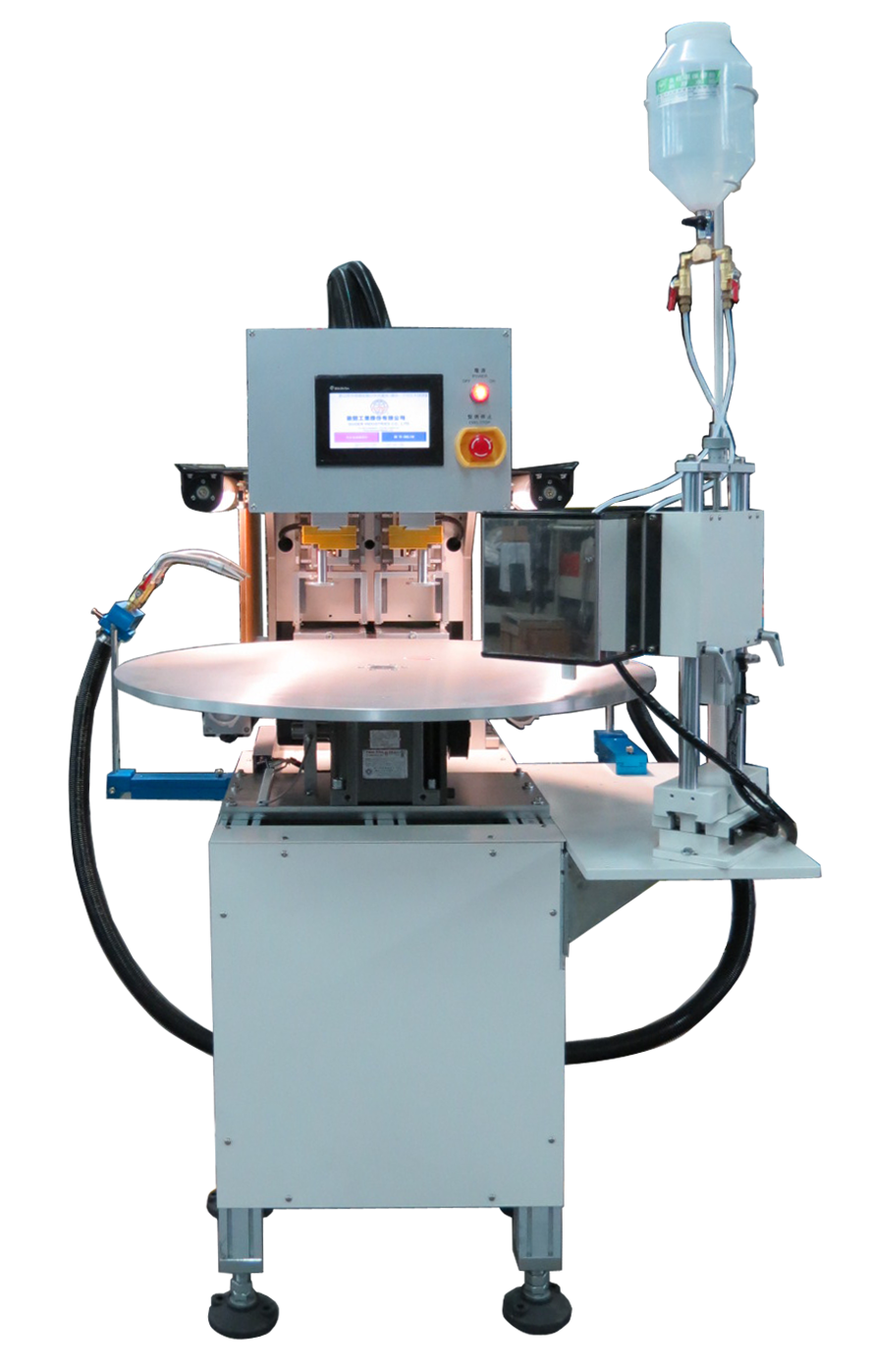

WE-262STC-CL
