Ink cups size (mm)
| Tungsten steel | Ceramic | Inner diameter | outer diameter | Highness |
| ∮60 | 60 | 76 | 62 | |
| ∮90 | 90 | 110 | 81 | |
| ∮130 | 130 | 155 | 89 | |
| ∮210 | 210 | 240 | 90 | |
| ∮60 | 60 | 70 | 35 | |
| ∮90 | 90 | 100 | 35 | |
| ∮100 | 100 | 110 | 35 | |
| ∮120 | 120 | 130 | 35 | |
| ∮130 | 130 | 140 | 35 | |
| ∮140 | 140 | 150 | 35 |
Including pad printing machines, screen printing machines, automatic printing machines, heat transfer machines,
flame treatment machines, UV drying equipment, as well as plate-making equipment, ovens, and infrared dryers.
Applicable for

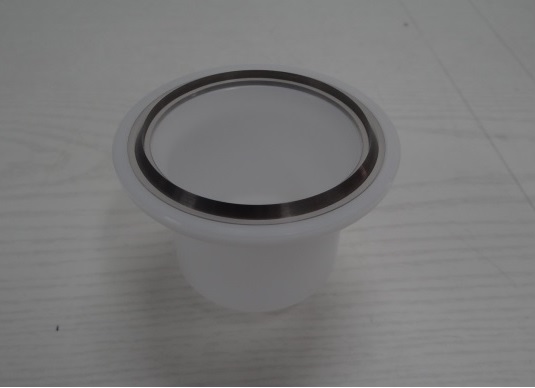

The ink cups sold by our company are divided into two categories, tungsten steel ink cups and ceramic ink cups. The hardness of the two materials is between 85° and 90°. They have a long service life, scrape the ink cleanly, save ink, save solvents, have no odor, and meet environmental protection requirements.
The ink cup body is made of solvent-resistant material, and the rubber ring is also the best choice in the industry for solvent resistance. It is suitable for long-term use and is not easy to deform.
Our company's ink cups are also suitable for different brands of ink cup pad printing machines. You are welcome to purchase and use them.
Product Features
Ink cups size (mm)
| Tungsten steel | Ceramic | Inner diameter | outer diameter | Highness |
| ∮60 | 60 | 76 | 62 | |
| ∮90 | 90 | 110 | 81 | |
| ∮130 | 130 | 155 | 89 | |
| ∮210 | 210 | 240 | 90 | |
| ∮60 | 60 | 70 | 35 | |
| ∮90 | 90 | 100 | 35 | |
| ∮100 | 100 | 110 | 35 | |
| ∮120 | 120 | 130 | 35 | |
| ∮130 | 130 | 140 | 35 | |
| ∮140 | 140 | 150 | 35 |
