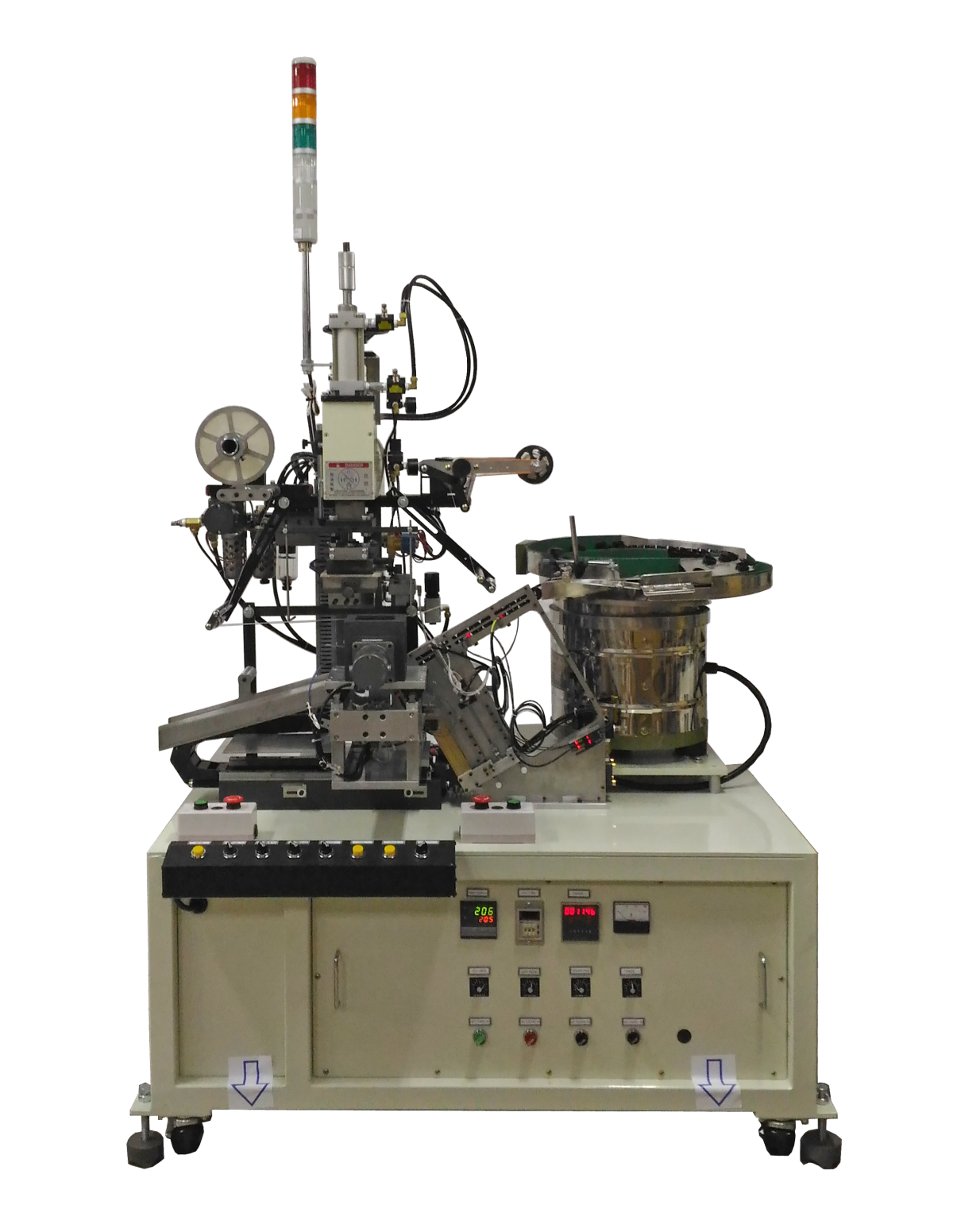

Digital roller hot stamping machine

WE-N30

Digital roller hot stamping machine

Digital wheel, scale wheel hot stamping

WE-N30

Applicable for

Suitable for hot stamping or transfer printing of general round curved surfaces, hot stamping of number rollers.

Add to inquiry list
Inquiry Form

Product Features

The square column design is stable and durable.
The specially designed circular hot stamping auxiliary machine (C.P.A.) has a stable speed and smooth sliding without any jitter, which can achieve the best hot stamping or transfer work.
The cylinder and the main shaft are directly connected with a small error design. The main shaft material is FC25, which is light and wear-resistant. The main shaft and the outer cover are precision ground and processed, and the pressure is correct.
The three delay time controls, pressure, delay, and foil rolling can all be adjusted according to the shape of the workpiece.
The special foil rolling design is easy to load and unload, and the foil rolling is accurate, which can reduce the loss of gold foil.
The high-power electric heating device heats up quickly, and can easily complete hot stamping, transfer or branding.
This machine has complete functions and can be replaced according to the product.

Vibrating bowl automatic feeding

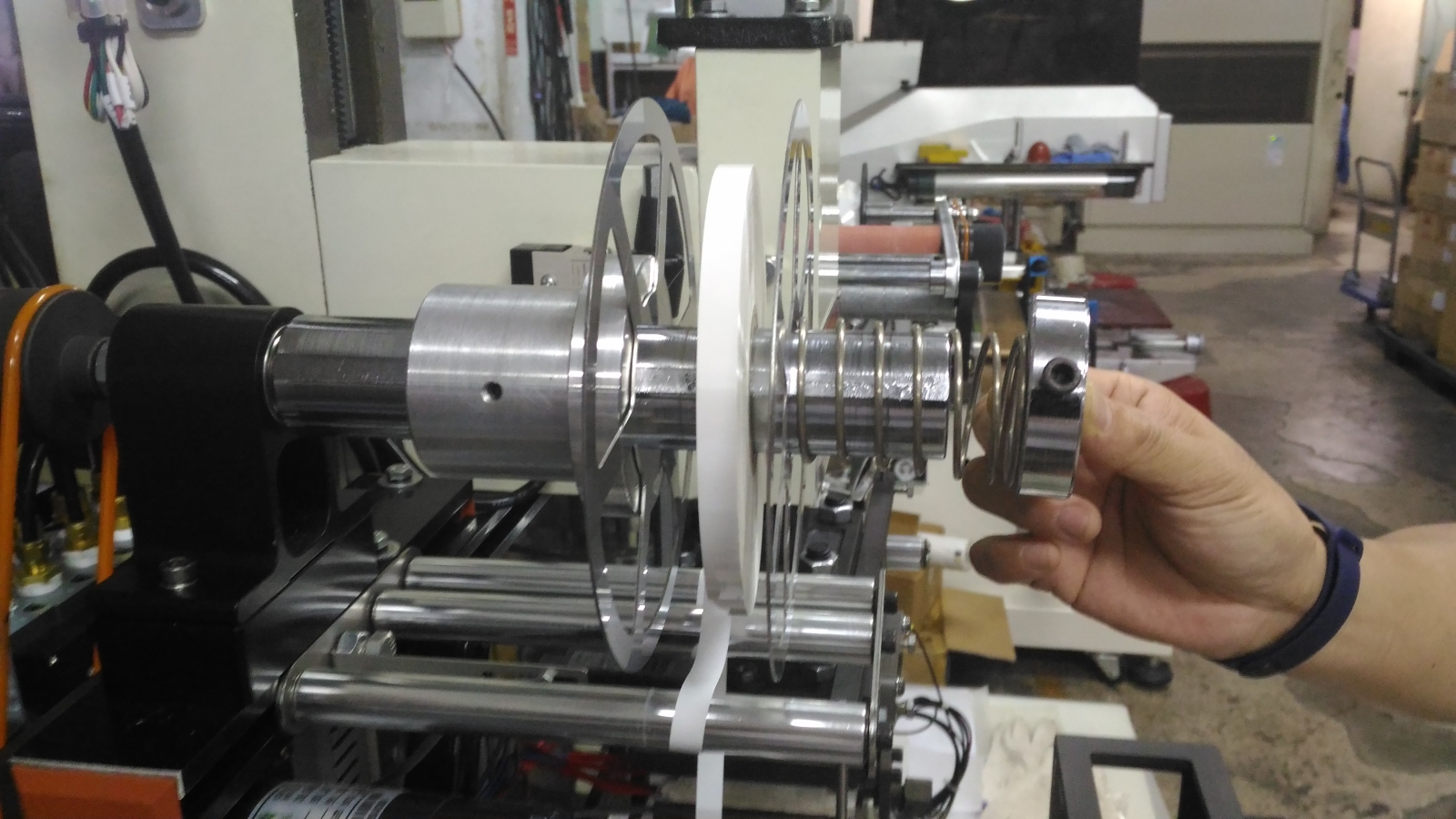

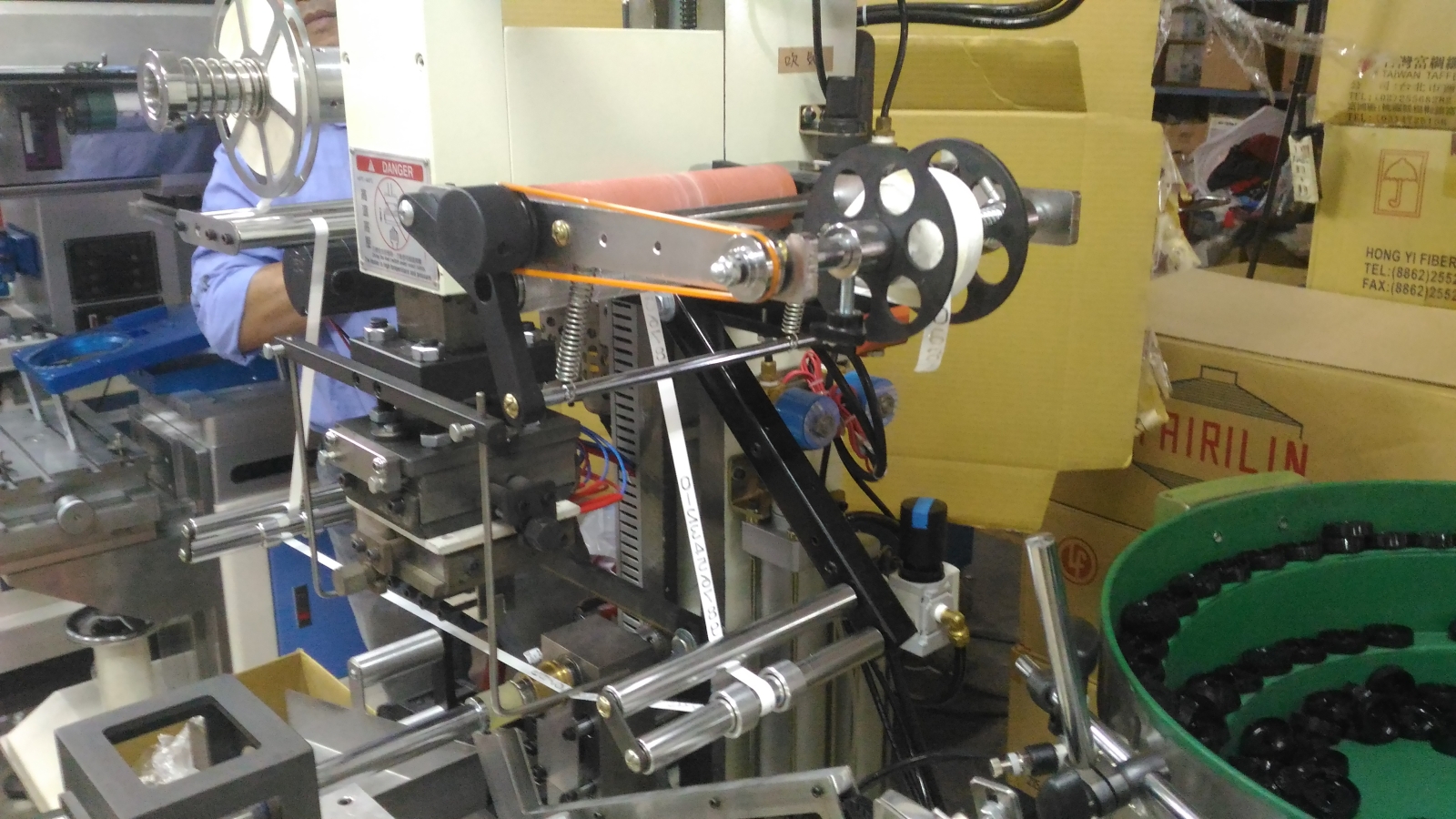

Hot stamping paper tension rack

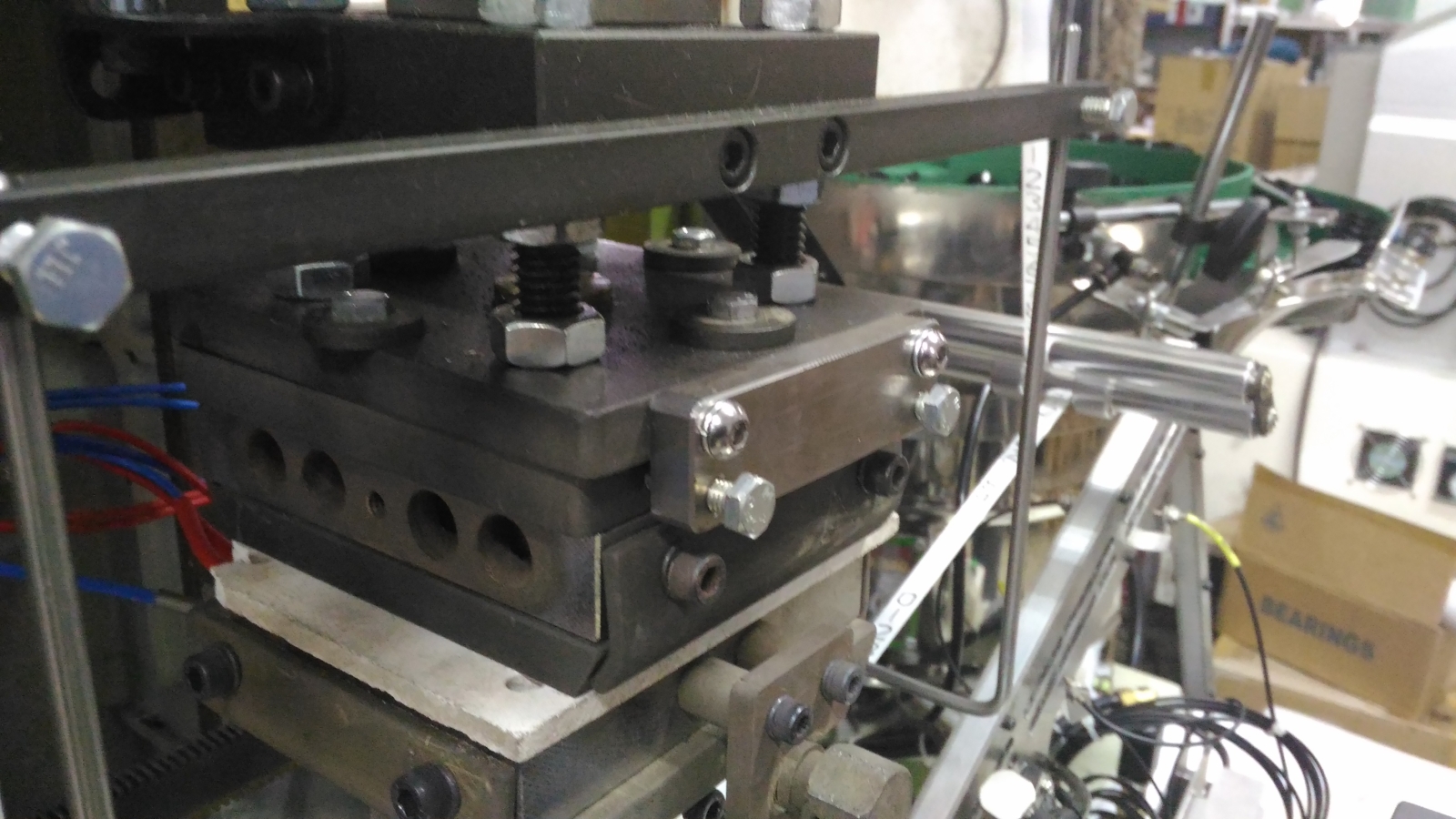

Digital mold heating plate

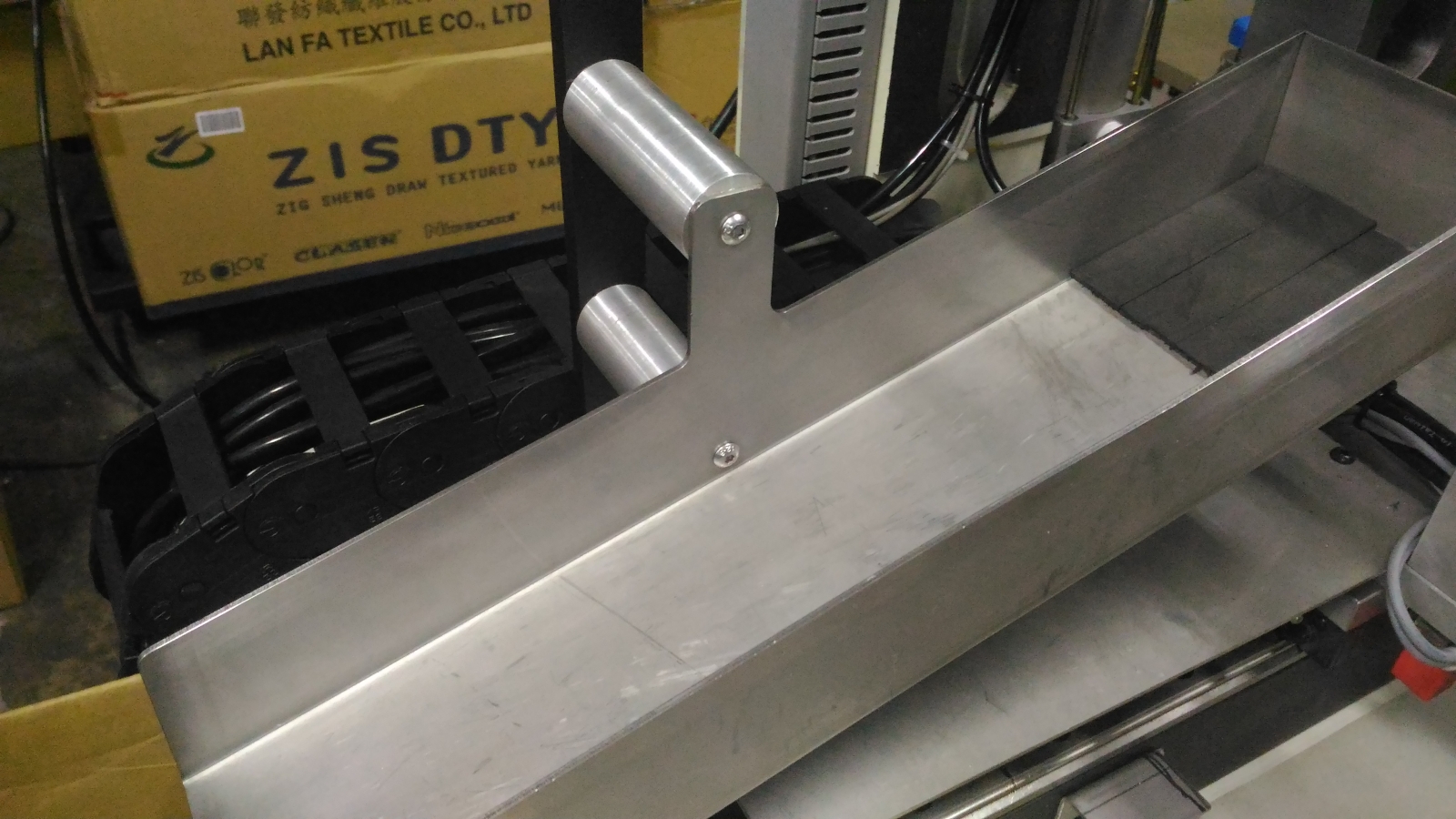

 discharging landslide

sample

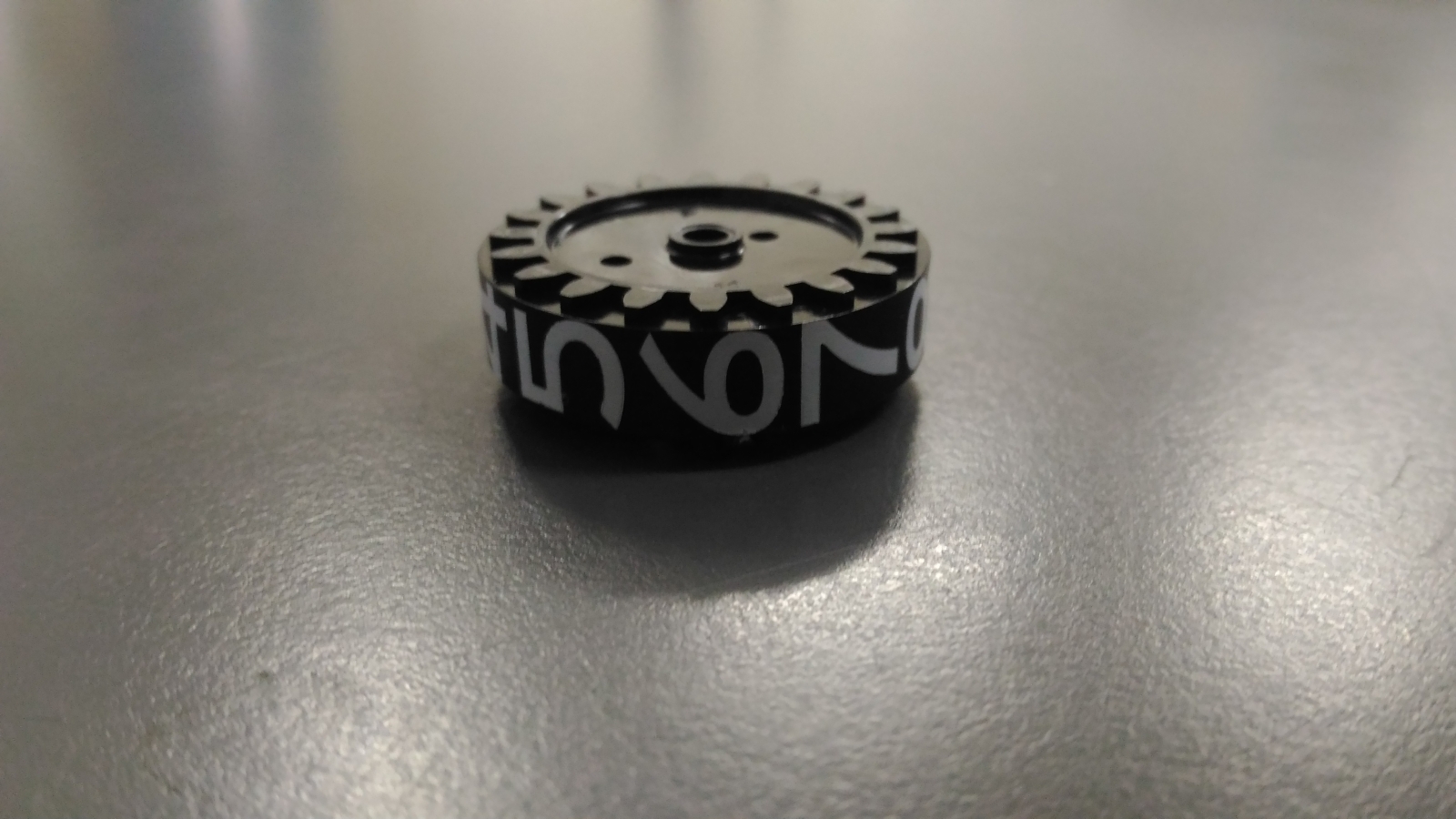

number roller

Maximum pressure: 2,000 kgs
Foil roll: 0 ~ 200 (mm)
Stroke: 60 (mm)
Working surface: 280 x 380 (mm)
Maximum opening: 300 (mm)
Center distance: 200 (mm)
Hot plate: 100 x 120 (mm)
Machine dimensions (L x W x H): 1,250 x 600 x 1,500 (mm)
Packaging weight: 260 kg
Packaging dimensions (L x W x H): 1,400 x 720 x 1,650 (mm)
Net weight: 200 kg
