1 design wiht cam transmission without air pressure.
2 maximum pressure 6000kg
3 double heating head can be set each temperature individual
4 heating head position L/R, F/R and angle are adjustable
 |

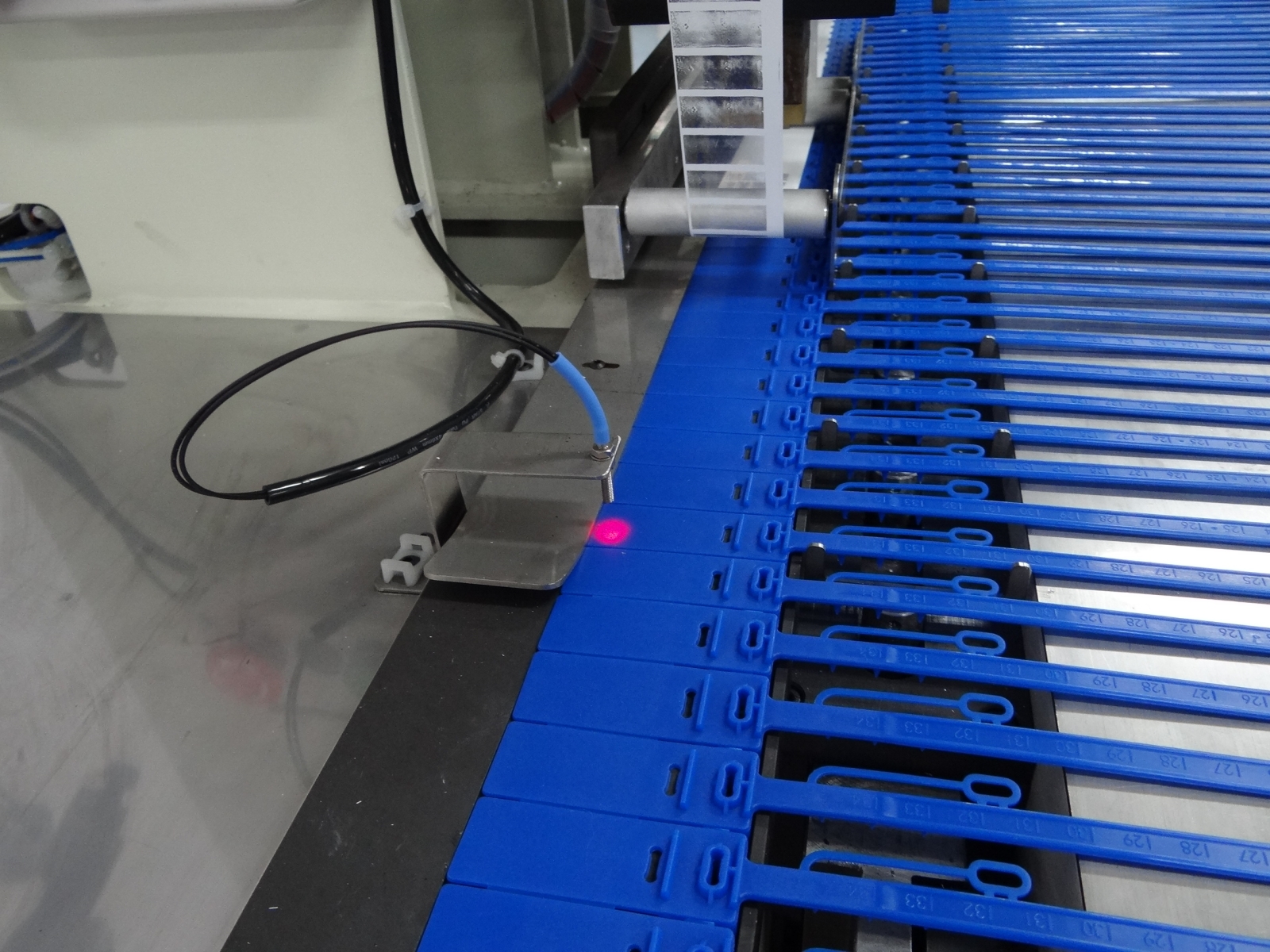

The optical fiber photoelectric switch automatically stops the machine and does not stamp when there is no material |

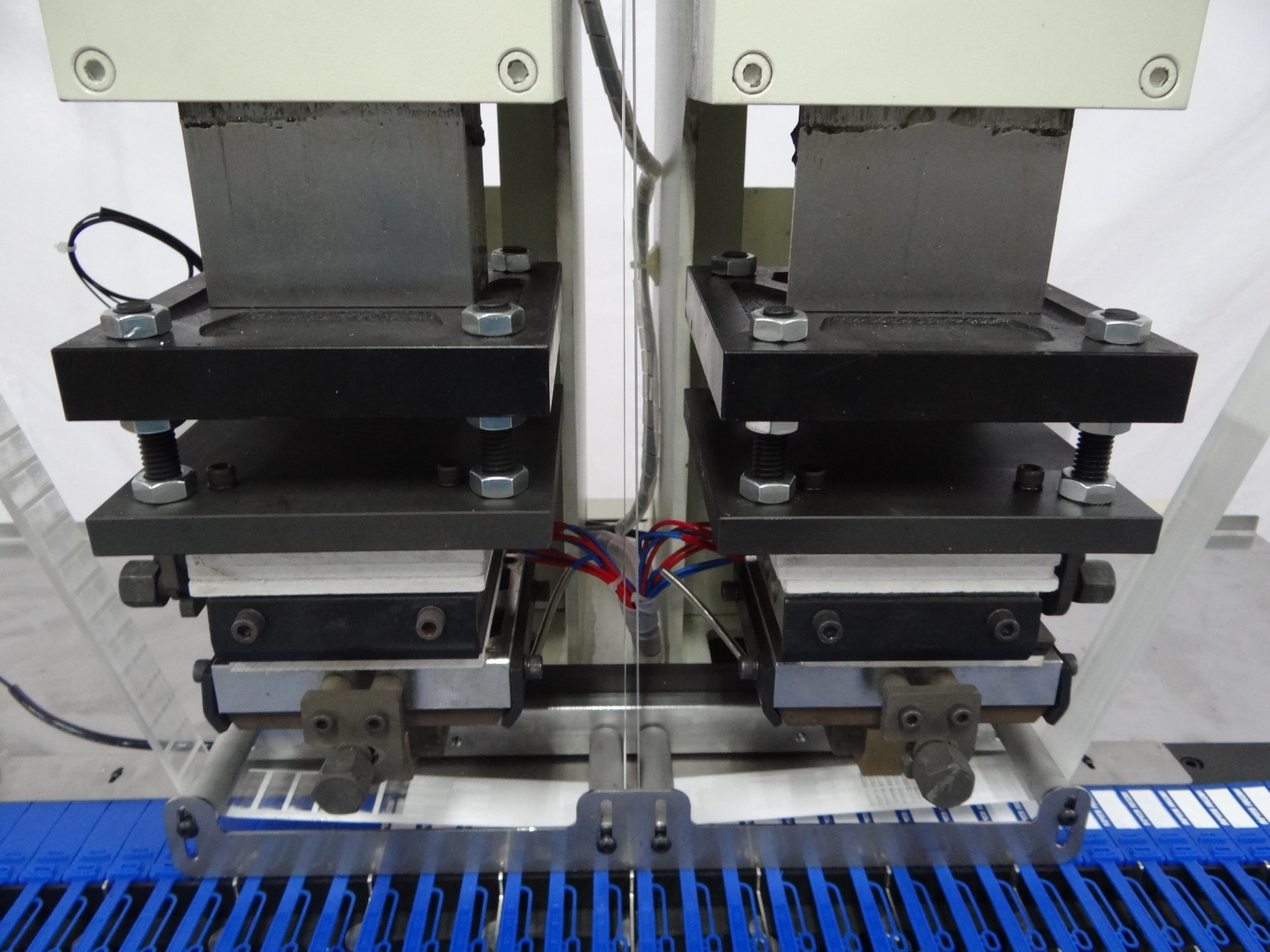

| Double hot stamping heads can hot stamp different contents separately |  |
 |

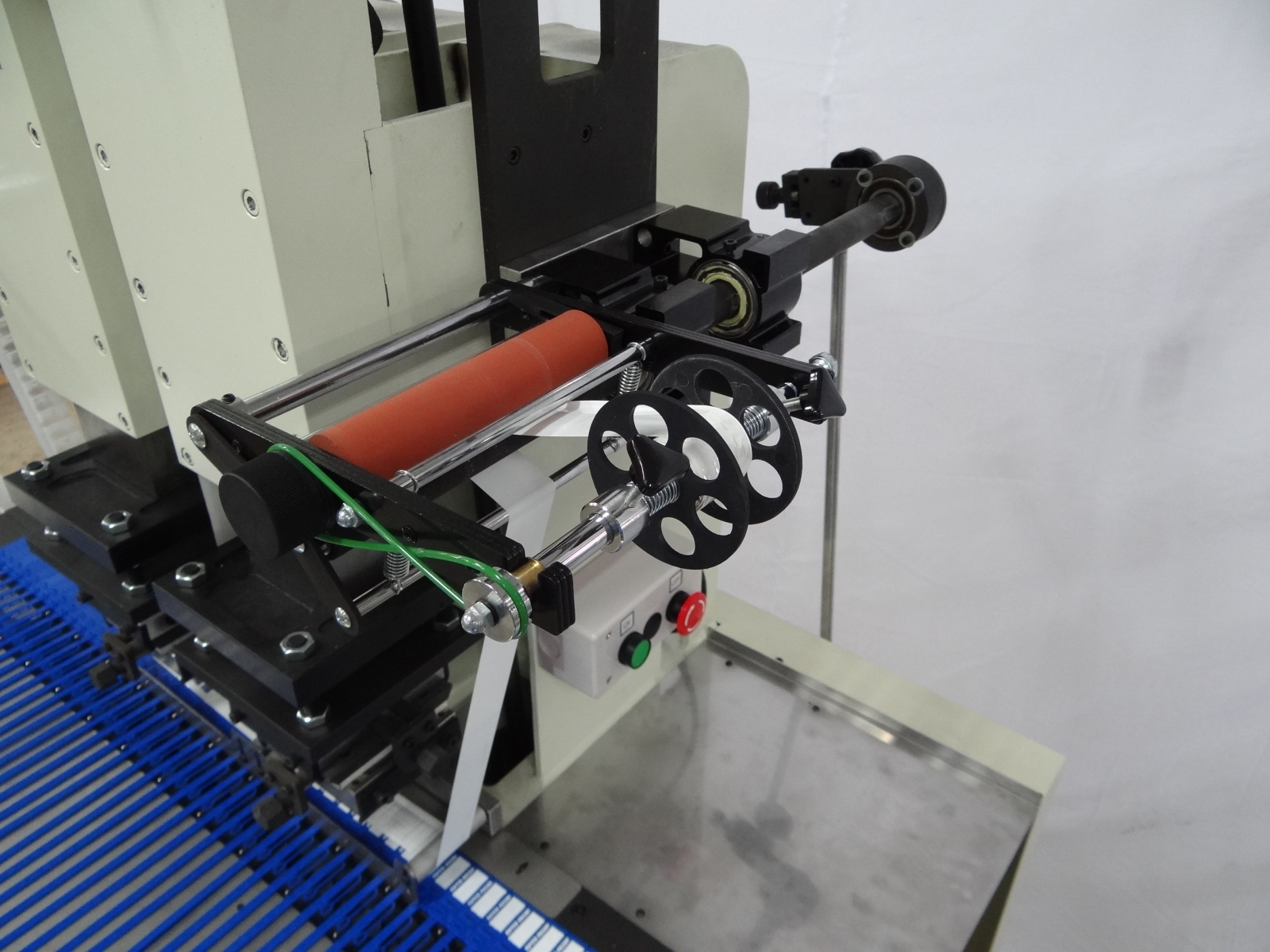

Linked automatic foil paper feeding and collection mechanism |
Specifications:
1 Heat Plate:100X120mm---2 sets
2 Stroke: 35㎜
3 Power: 1∮／200～240V, 1PH , 20A
4 Heat Tube: ∮14xL90㎜ 130V／250W x 8 pcs
5 Temperature: 0～400℃
6 Roller Driver Motor: 1 HP
7 Height Of Working Table Height: 950mm
8 Fixing Foil Device Width: 100mm
9 Capacity: 45 cycle/ Minute
10 Size Of M/C (㎝): L188xW105xH193cm
11 Net WT: 555kg
