Hot stamping ,Heat Transfer

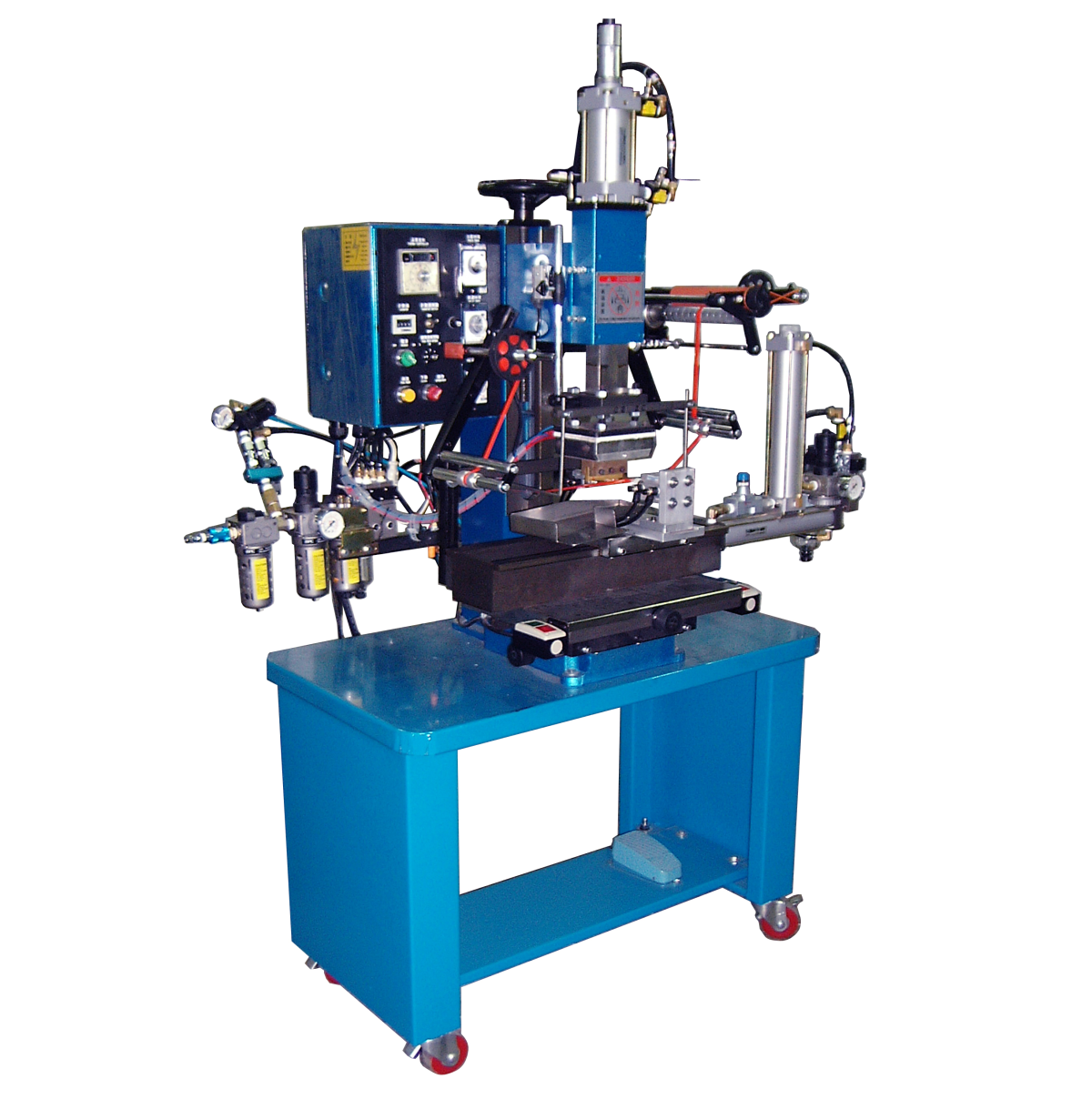

Hot Stamping Machine

WE-ABIT & CPT

Hot stamping ,Heat Transfer

Hot Stamping Machine

Highly efficient heating unit for quick and easy hot stamping, transfer or embossingHighly efficient heating unit for quick and easy hot stamping, transfer or embossing

WE-ABIT & CPT

Applicable for

Heat transfer and hot stamp for lipstick tube, powder box, shampoo bottle cap, video cassette panel and clock frame etc.

Add to inquiry list

Inquiry Form

Product Features

Max Pressure : 2,000 kgs
Foil Rolling Device : 0 ~ 200 (mm)
Max Head Stroke : 60 (mm)
Work Table : 280 x 380 (mm)
Max Opening : 300 (mm)
Center Distance : 200 (mm)
Impression Area : 100 x 120 (mm)
Dimension (L x W x H) : 1,250 x 600 x 1,500 (mm)
Packaging WT. : 200 kg
Packaging Dimension (L x W x H) : 1,400 x 720 x 1,650 (mm)
Net WT : 140 kg

Features:

Strong body design is stable.
Special design the C.P.A, stable speed, no fruition happens in the slide moving, the best a mounted for hot stamping and transferring.
Main spindle is precision ground and can operate at low pressure.
3 timer controls for better performance, 1 for pressure time, 1 for delay time, 1 for foil feed adjustment.
Special design for foil feeder.
Highly efficient heating unit for quick and easy hot stamping, transfer or embossing.
Those machines have multi-function, and depend on the printed stuffs for change mounted.
