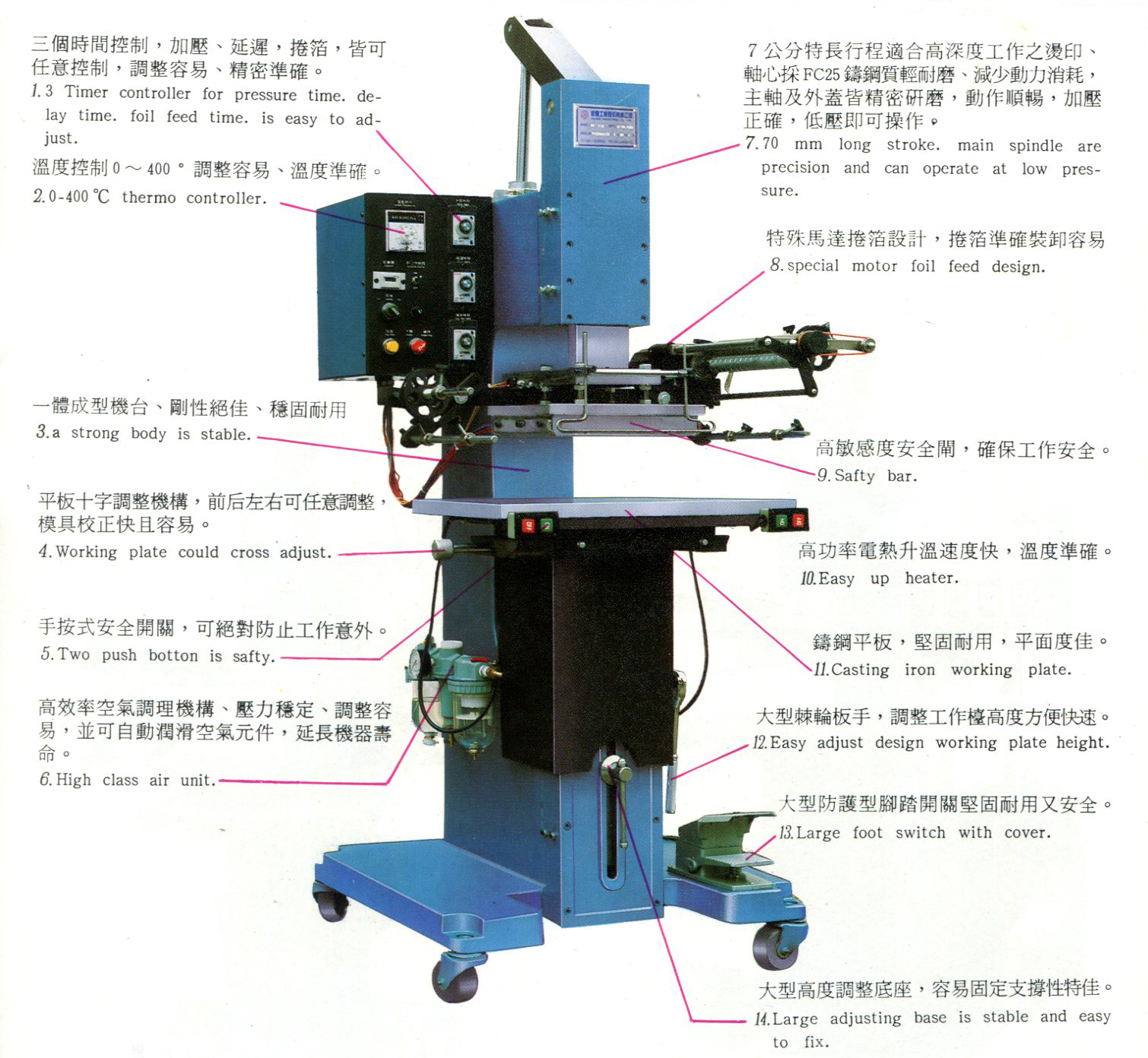

The square column design is stable and durable.
The specially designed circular hot stamping auxiliary machine (C.P.A.) has a stable speed and smooth sliding without any jitter, which can achieve the best hot stamping or transfer work.
The cylinder and the main shaft are directly connected with a small error design. The main shaft material is FC25, which is light and wear-resistant. The main shaft and the outer cover are precision ground and processed, and the pressure is correct.
The three delay time controls, pressure, delay, and foil rolling can all be adjusted according to the shape of the workpiece.
The special foil rolling design is easy to load and unload, and the foil rolling is accurate, which can reduce the loss of gold foil.
The high-power electric heating device heats up quickly, and can easily complete hot stamping, transfer or branding.
This machine has complete functions and can be replaced according to the product.
 |

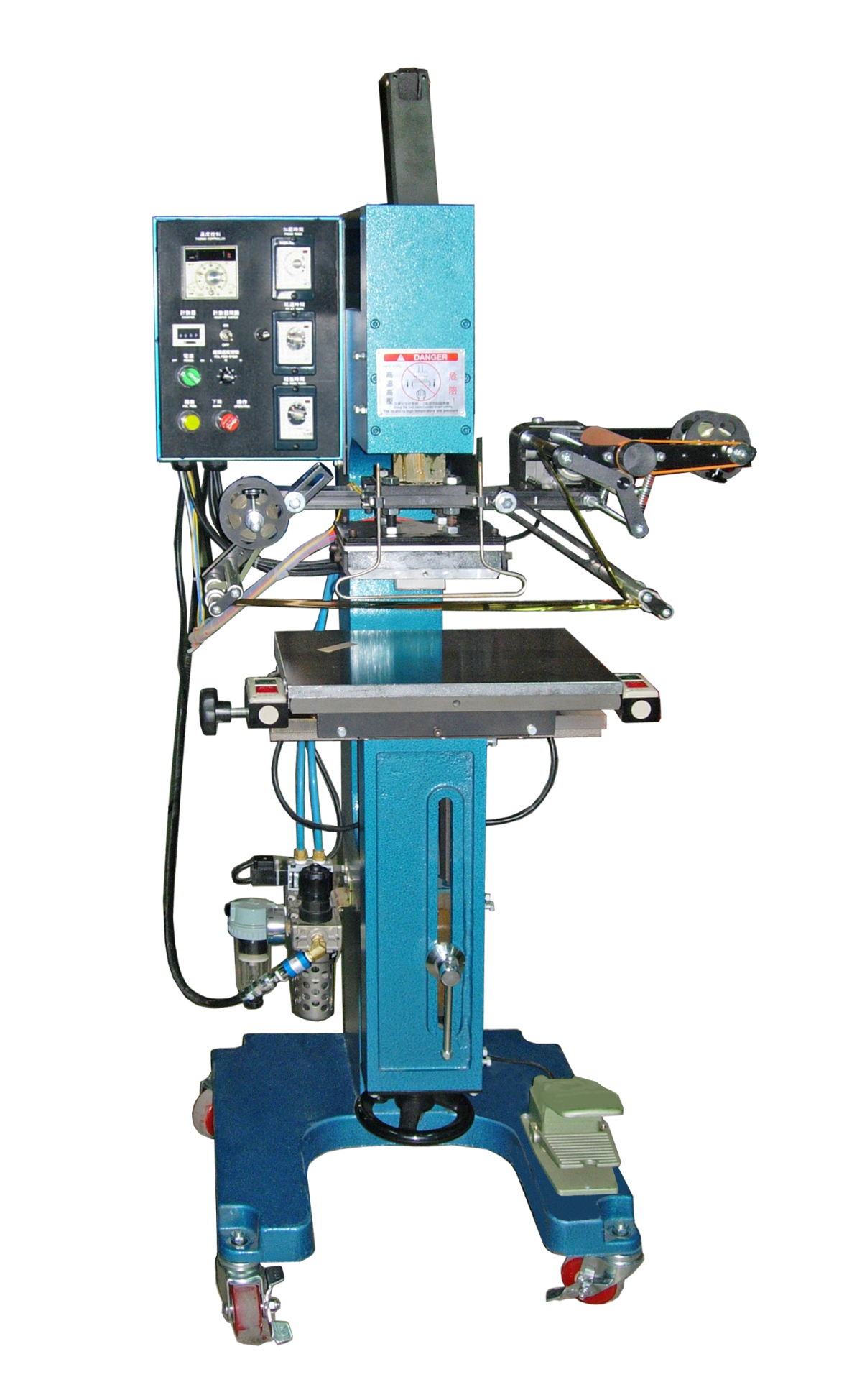

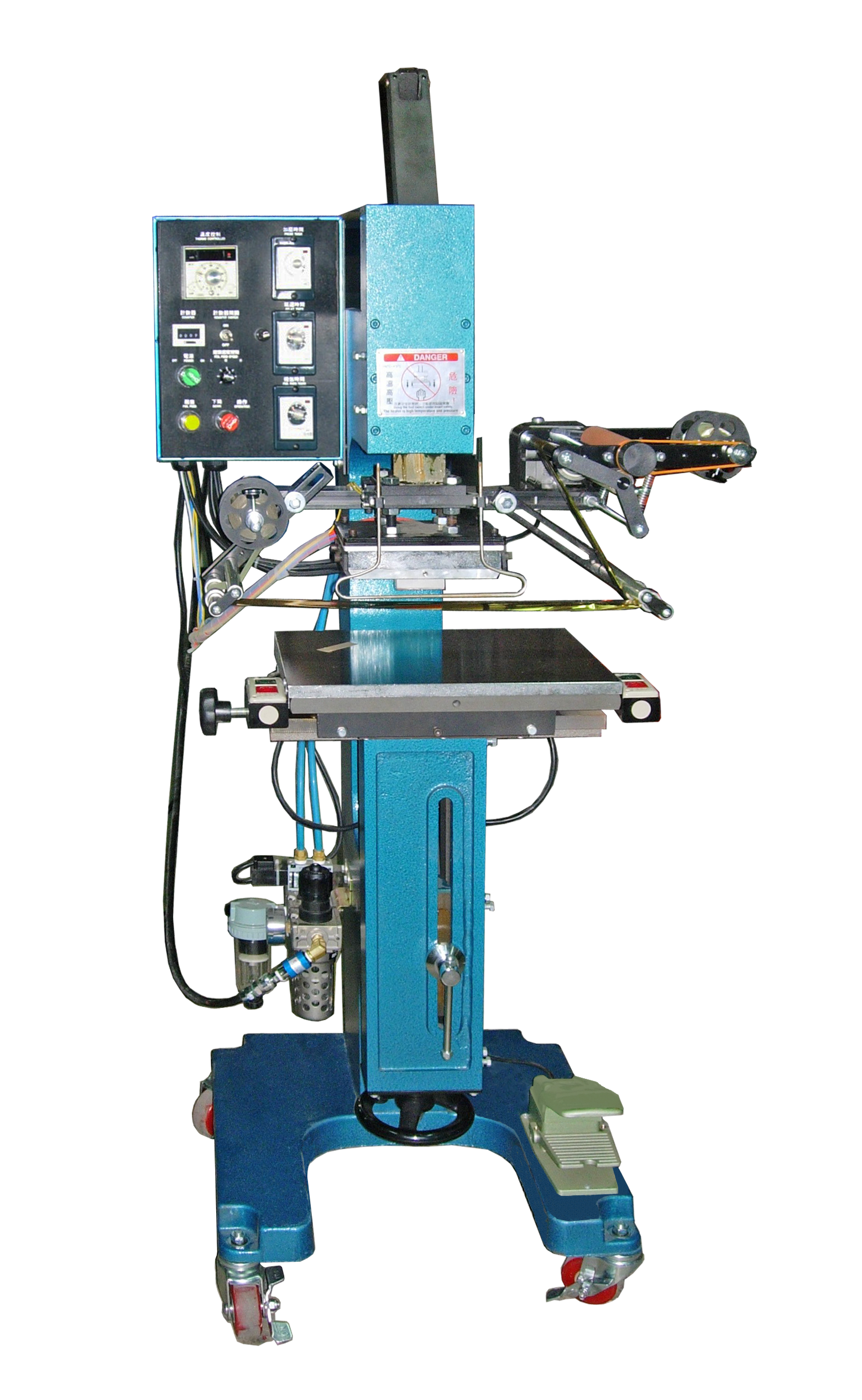

WE-AC3
Maximum pressure: 3,000 kgs
Foil roll: 0 ~ 400 (mm)
Stroke: 60 (mm)
Working surface: 280 x 380 (mm)
Maximum opening: 280 (mm)
Center distance: 200 (mm)
Hot plate: 120 x 180 (mm)
Machine dimensions (L x W x H): 650 x 650 x 1,500 (mm)
Net weight: 190 kg
Packaging dimensions (L x W x H): 720 x 720 x 1,650 (mm)
Packaging weight: 240 kg
|
 |
-

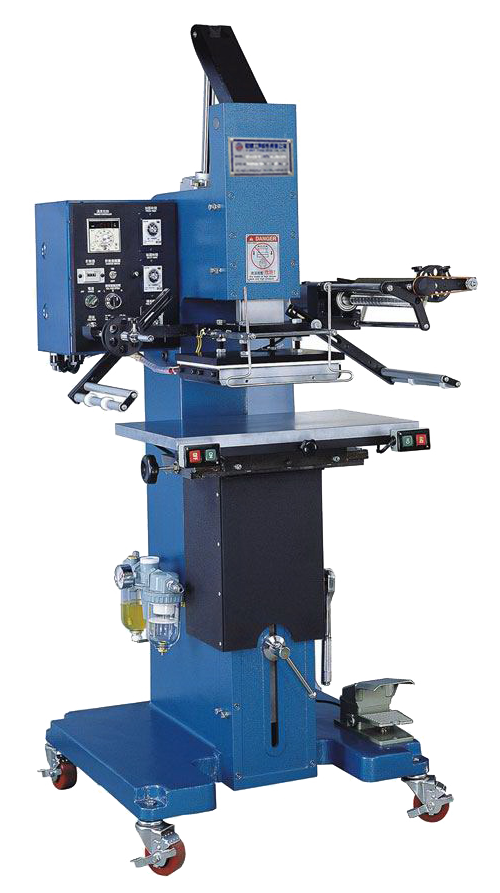

WE-AC5
Maximum pressure: 5,000 kgs
Foil roll: 0 ~ 400 (mm)
Stroke: 70 (mm)
Working surface: 380 x 450 (mm)
Maximum opening: 300 (mm)
Center distance: 300 (mm)
Hot plate: 120 x 180 or 200 x 270 (mm)
Machine dimensions (L x W x H): 800 x 700 x 1,500 (mm)
Net weight: 360 kg
Packaging dimensions (L x W x H): 950 x 950 x 1,650 (mm)
Packaging weight: 400kg
|
 |
-

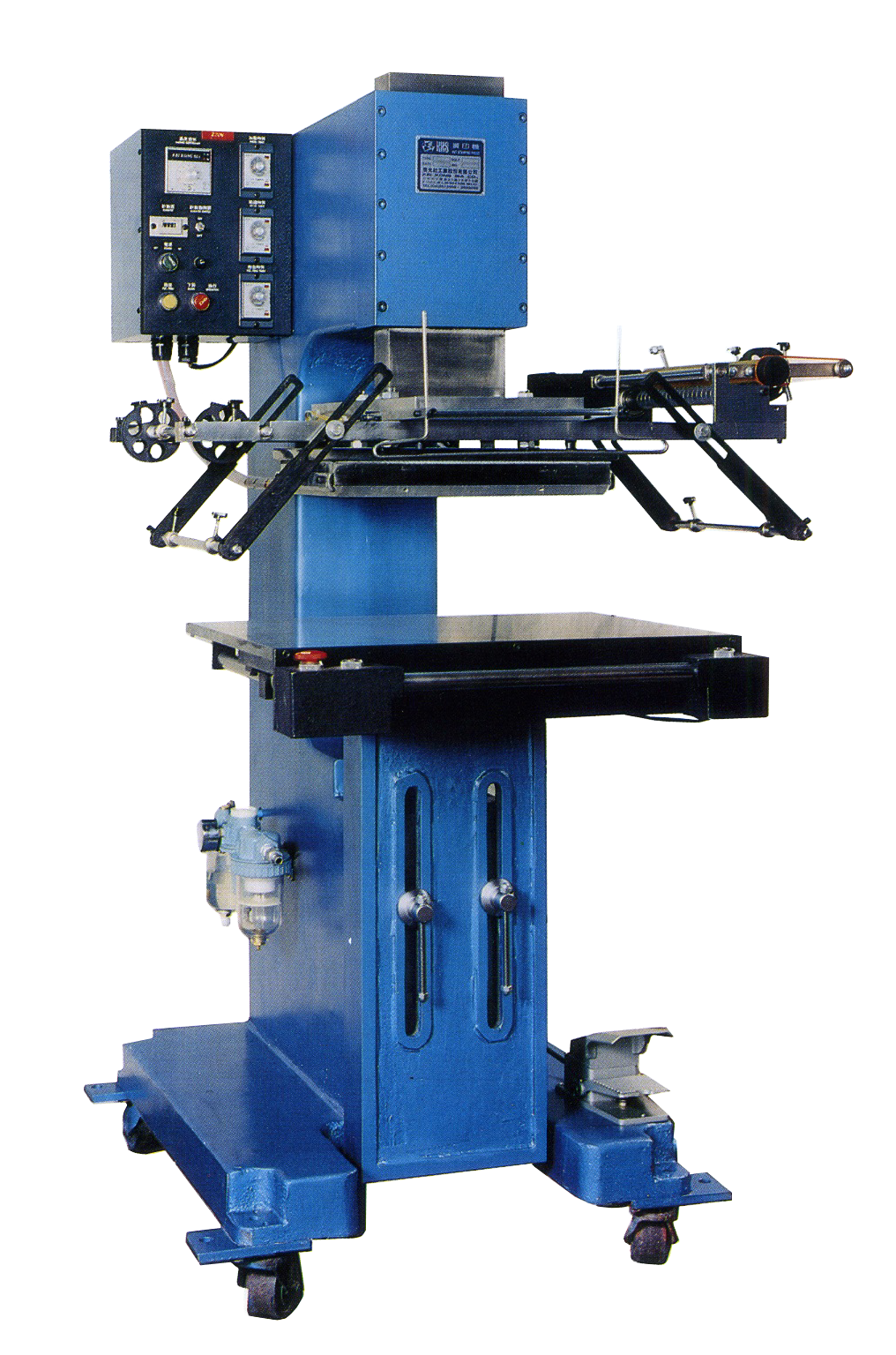

WE-AC8
Maximum pressure: 8,000 kgs
Foil roll: 0 ~ 400 (mm)
Stroke: 70 (mm)
Working surface: 480 x 650 (mm)
Maximum opening: 280 (mm)
Center distance: 330 (mm)
Hot plate: 200 x 270 or 270 x 400 (mm)
Machine dimensions (L x W x H): 1,000 x 1,000 x 1,700 (mm)
Net weight: 700 kg
Packing dimensions: (L x W x H): 1,200 x 1,200 x 1,800 (mm)
Packing weight: 800kg
|
 |
Design for special needs:

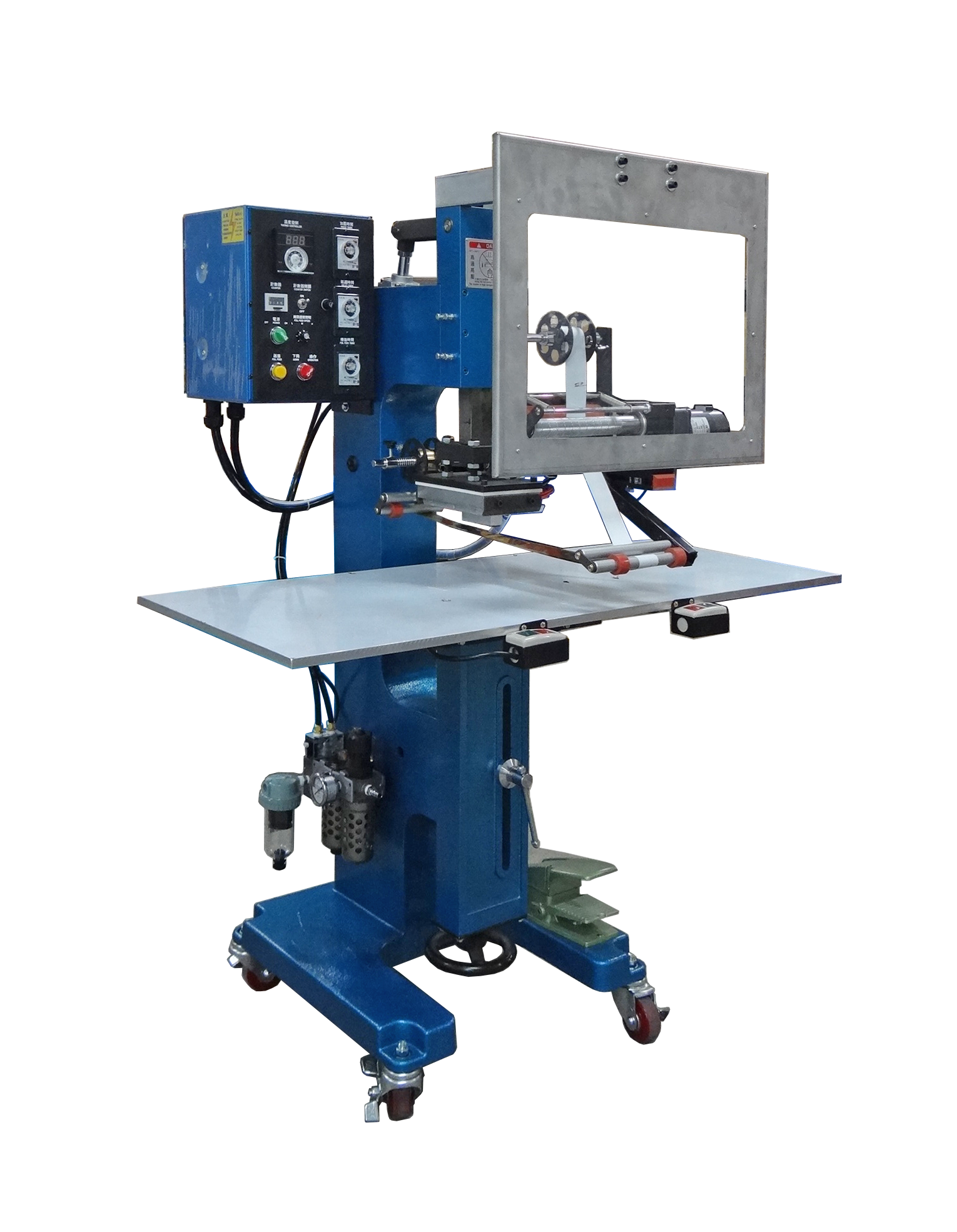

If you encounter a long object, you can design the machine to load and unload from both sides
What should I do if I encounter a long object for hot stamping? Do I need to use a larger hot stamping machine? Not necessarily. If the pattern you want to stamp is very small, you don’t need a machine with higher pressure. You can use a small or medium-sized hot stamping machine, change the original placement position from the front to the side, and change the foil rolling mechanism from horizontal to vertical. In this way, no matter how long the object is, it can be stamped, and you can also do fixed span continuous stamping on the same object.
|
