• Instantly heats PE and PP products to 1100°C with air / gas combination to create and oxided surface file in preparation for later printing. Ink adheres completely to the product, ensuring a clear sharp, long-lasting printed surface.
• The ignition system with electronic control, no object no treatment, save money on gas and air.
• Using inverter motor, stepless speed control, speed adjustable.

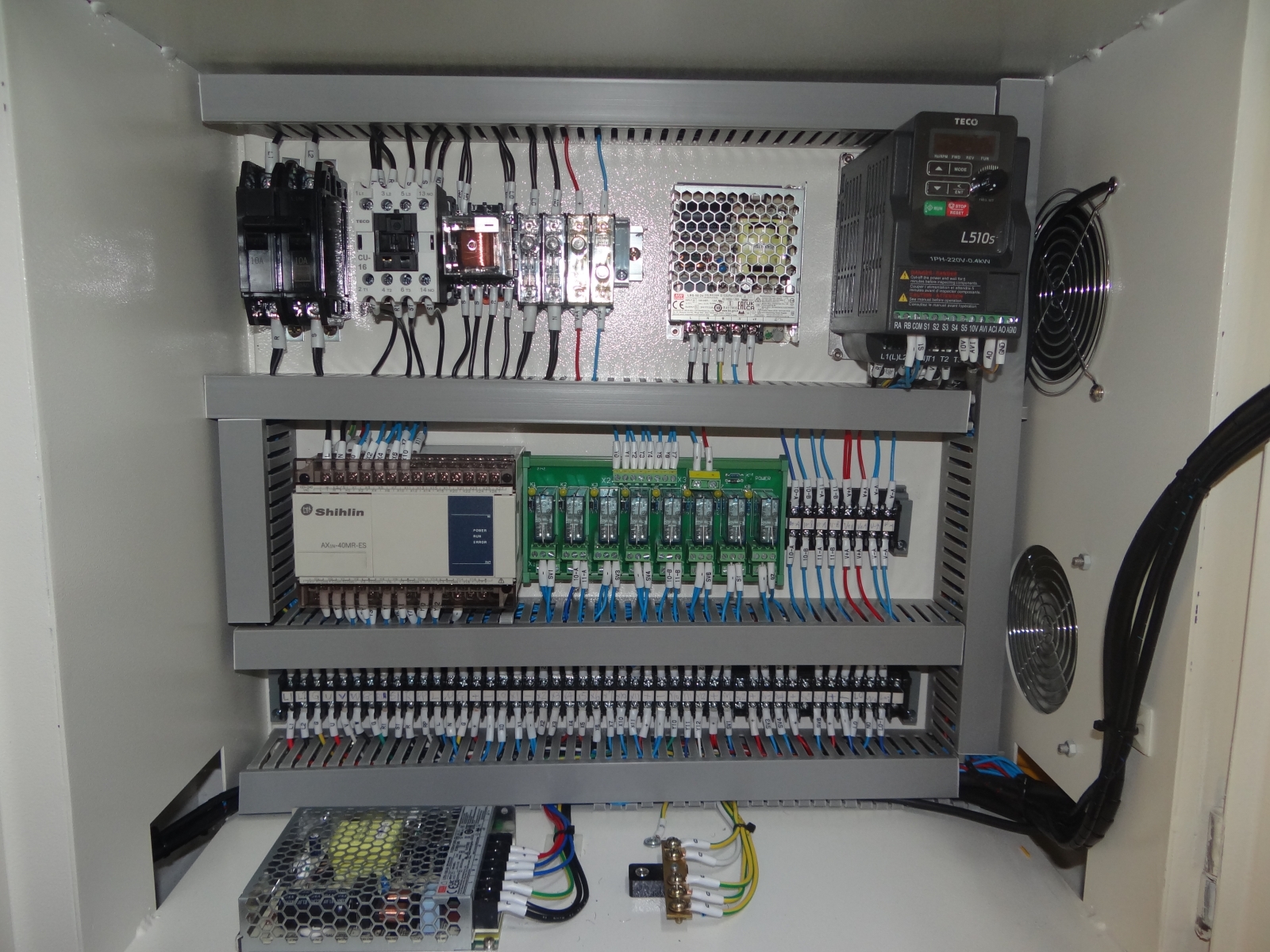

• With PLC control system for easy operation.
• Custom-made machine is available and welcome.

Specifications:

• Max Treatment (mm) : Flat 10 ~ 250
• Air / Gas Consumption : 200/100 L/Min
• Dimension (L x W x H) : 2,500 x 1200 x 1,300 (mm)
• Net WT : 350 kg

	Programmable controller, through programming, can freely change the ignition time of the flame nozzle.

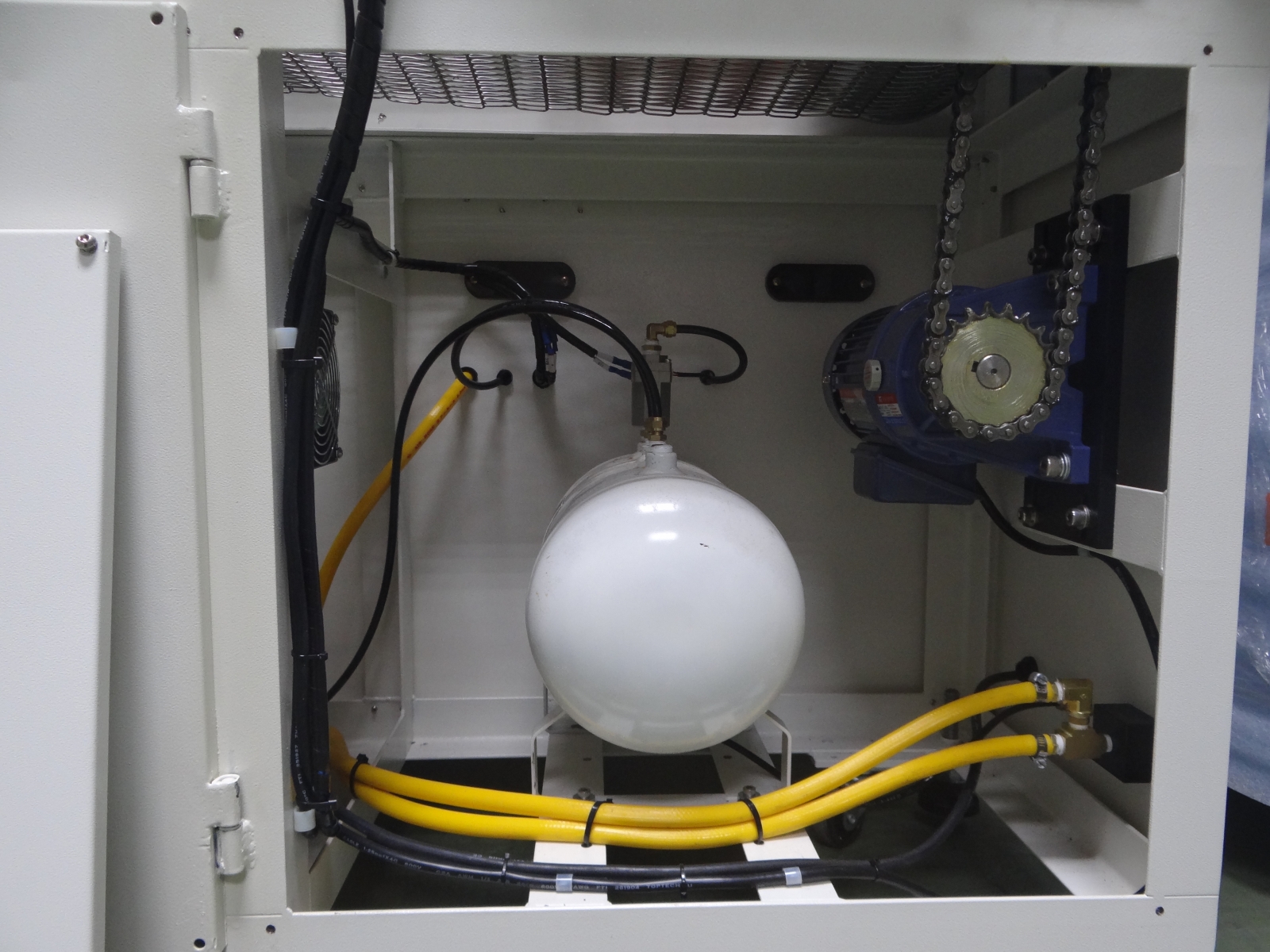

Equipped with an air tank, the air can be output stably and the flame stability can be enhanced.

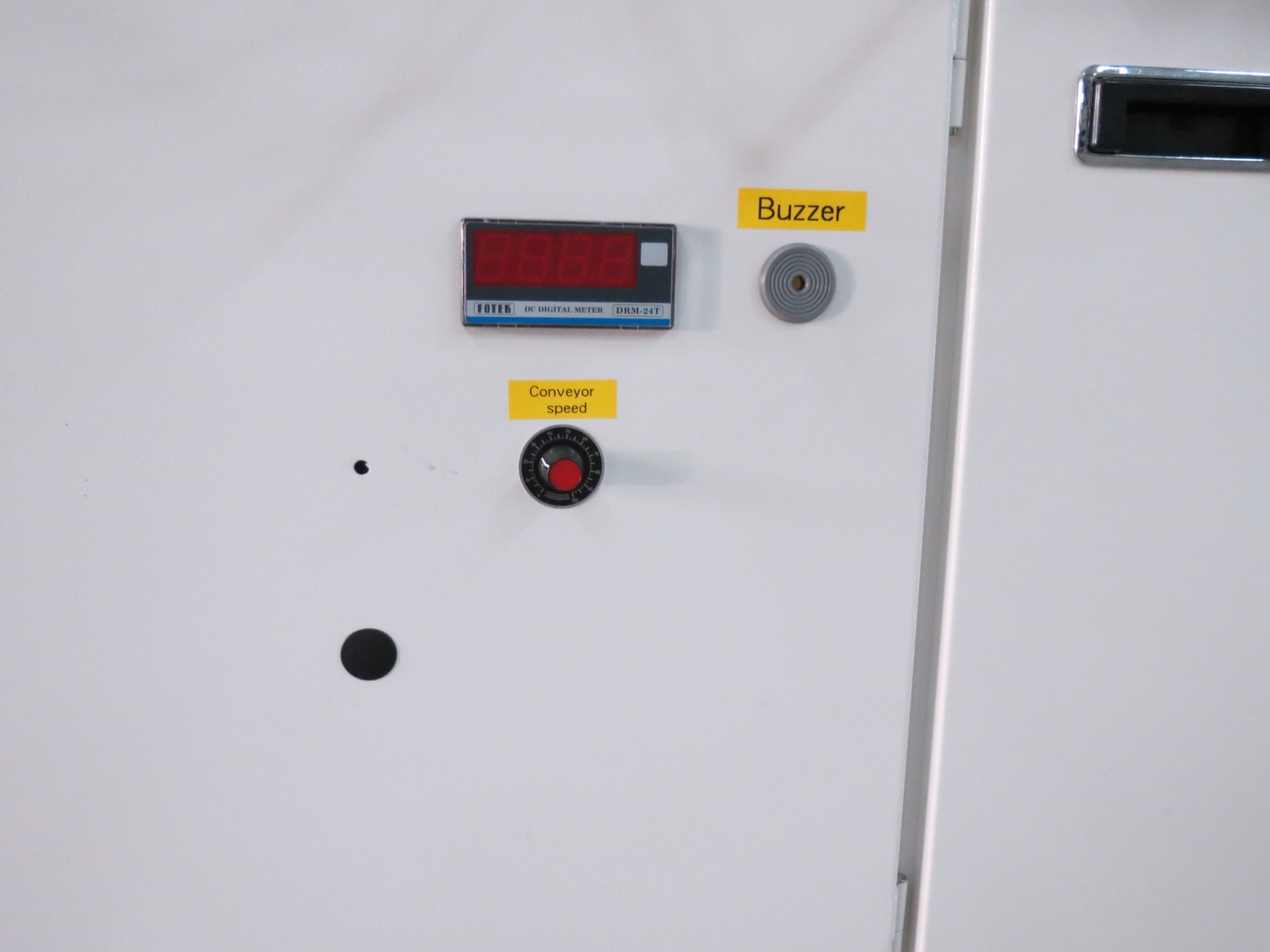

	The conveyor speed control is equipped with a digital code display meter, and the speed can be adjusted by referring to the numbers.。

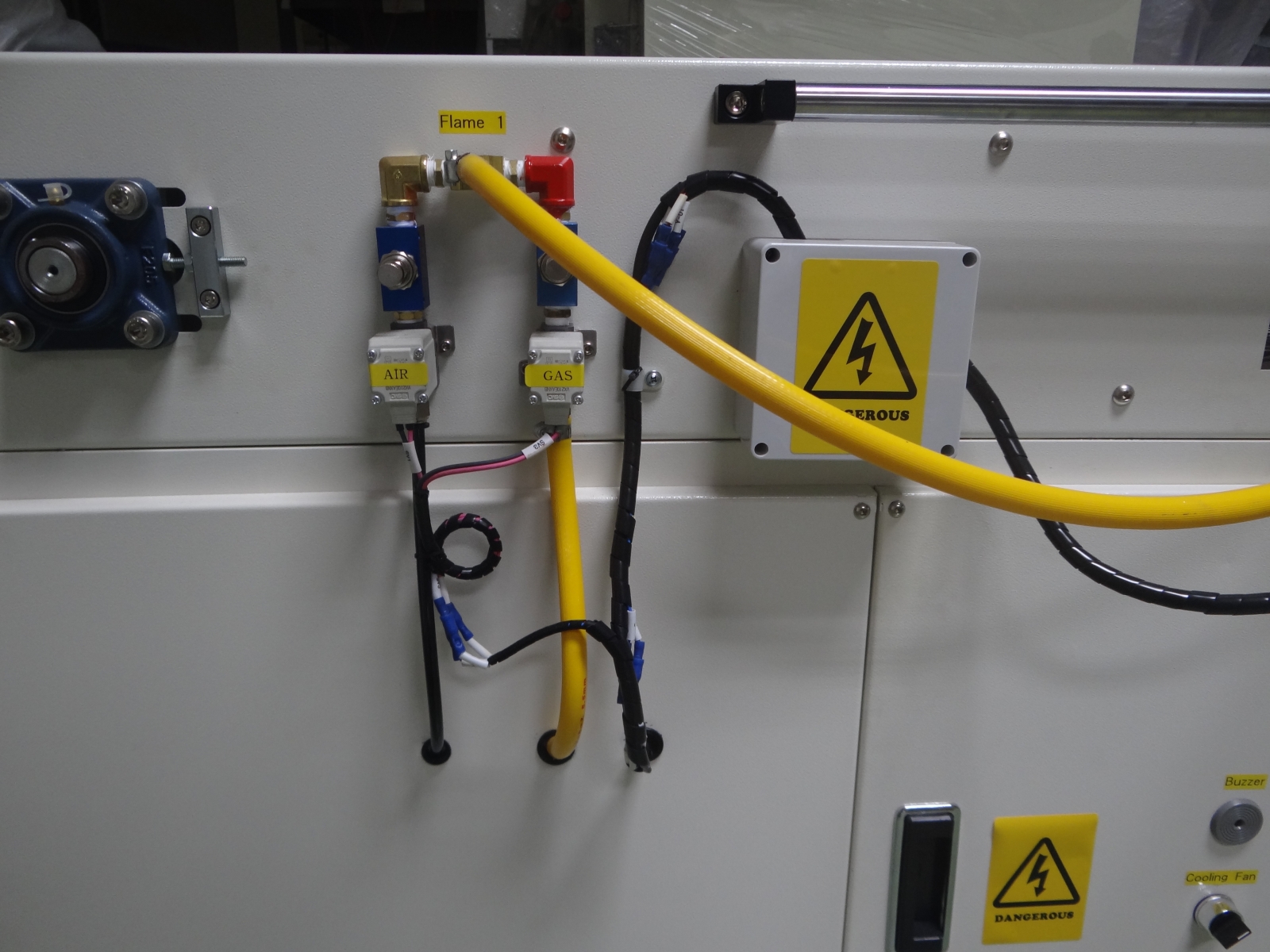

Gas and air flow are independently controlled, and PLC controls the solenoid valve to automatically open or close. Optional photoelectric switch is also available to control the ignition timing. When an object is sensed on the conveyor belt, it will ignite immediately. When no object comes in, it will delay the ignition for 5 seconds. (time can be changed)

the nozzle direction

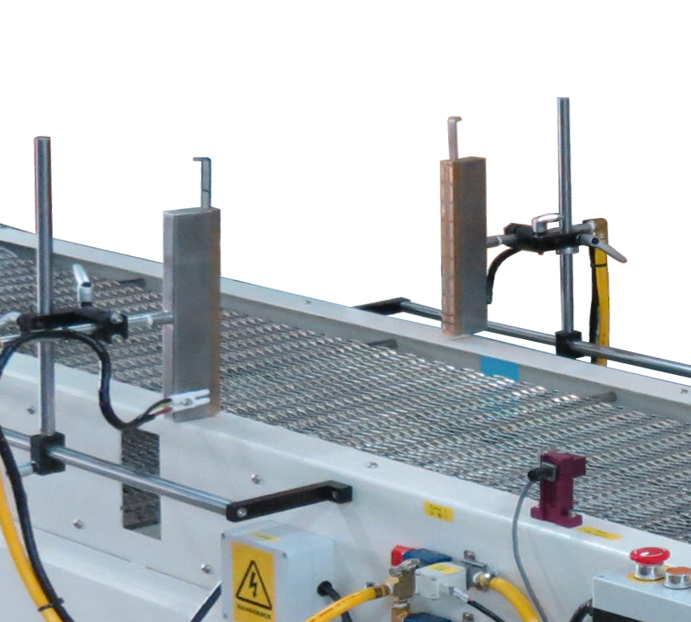

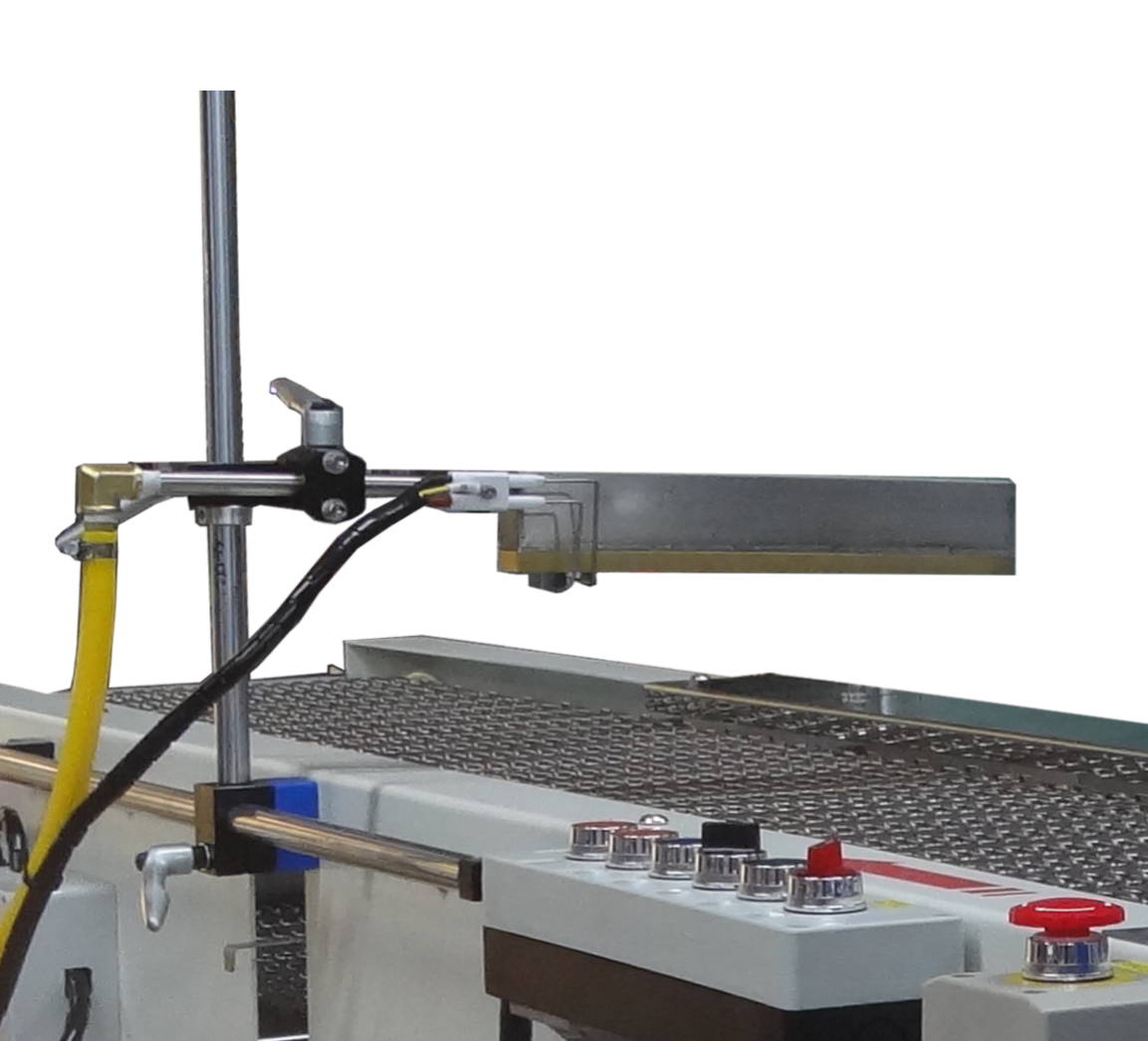

Downward type: The flame sprays downward, suitable for treating the top of flat objects	Side type: flames are sprayed on both sides, suitable for side processing of flat objects



•
