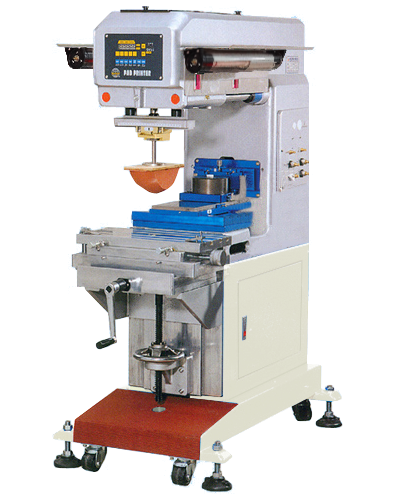

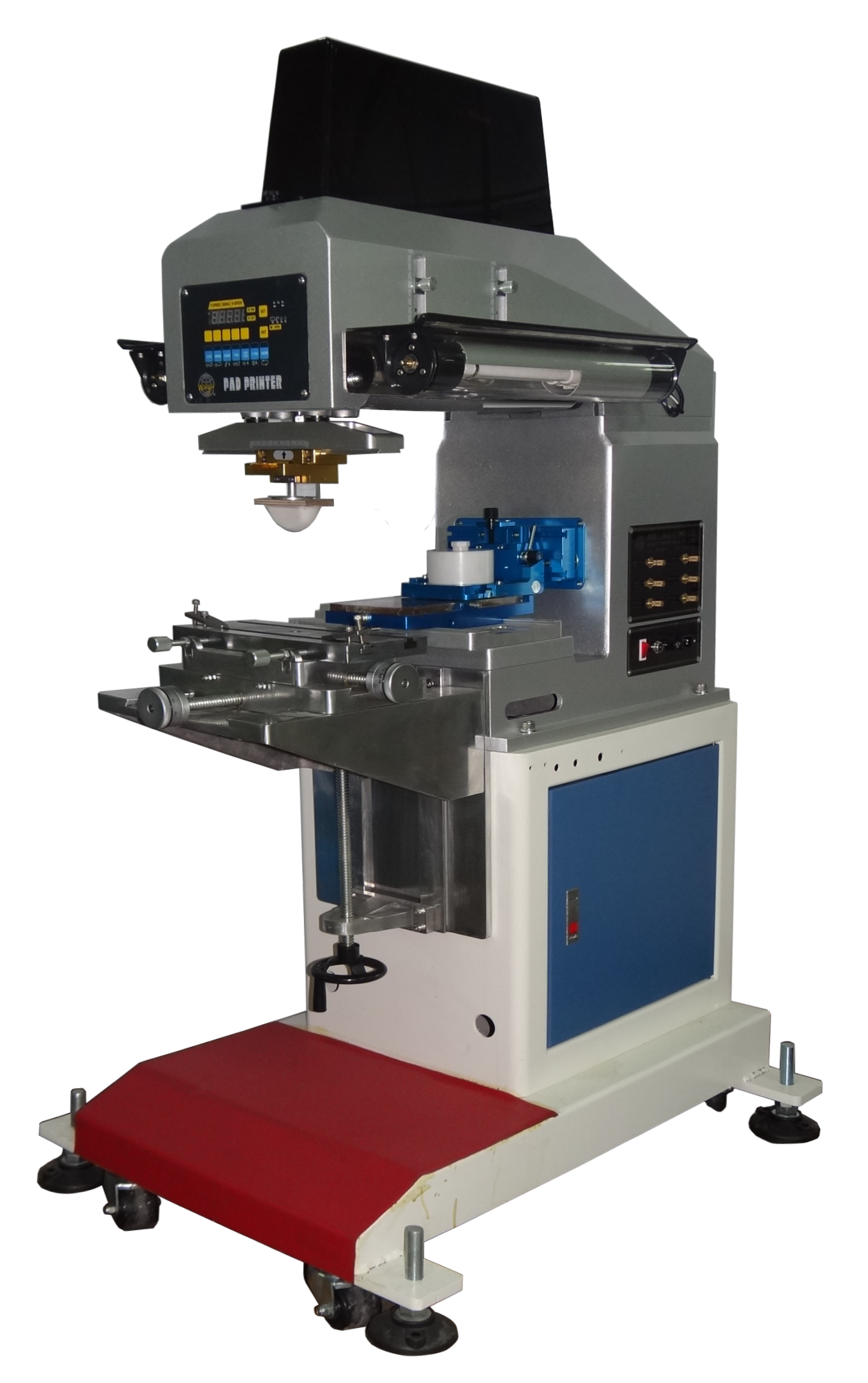

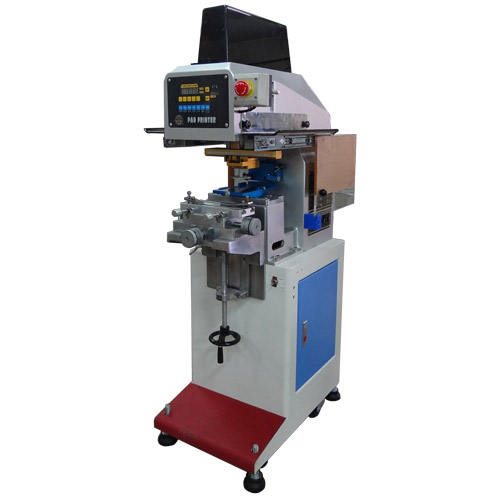

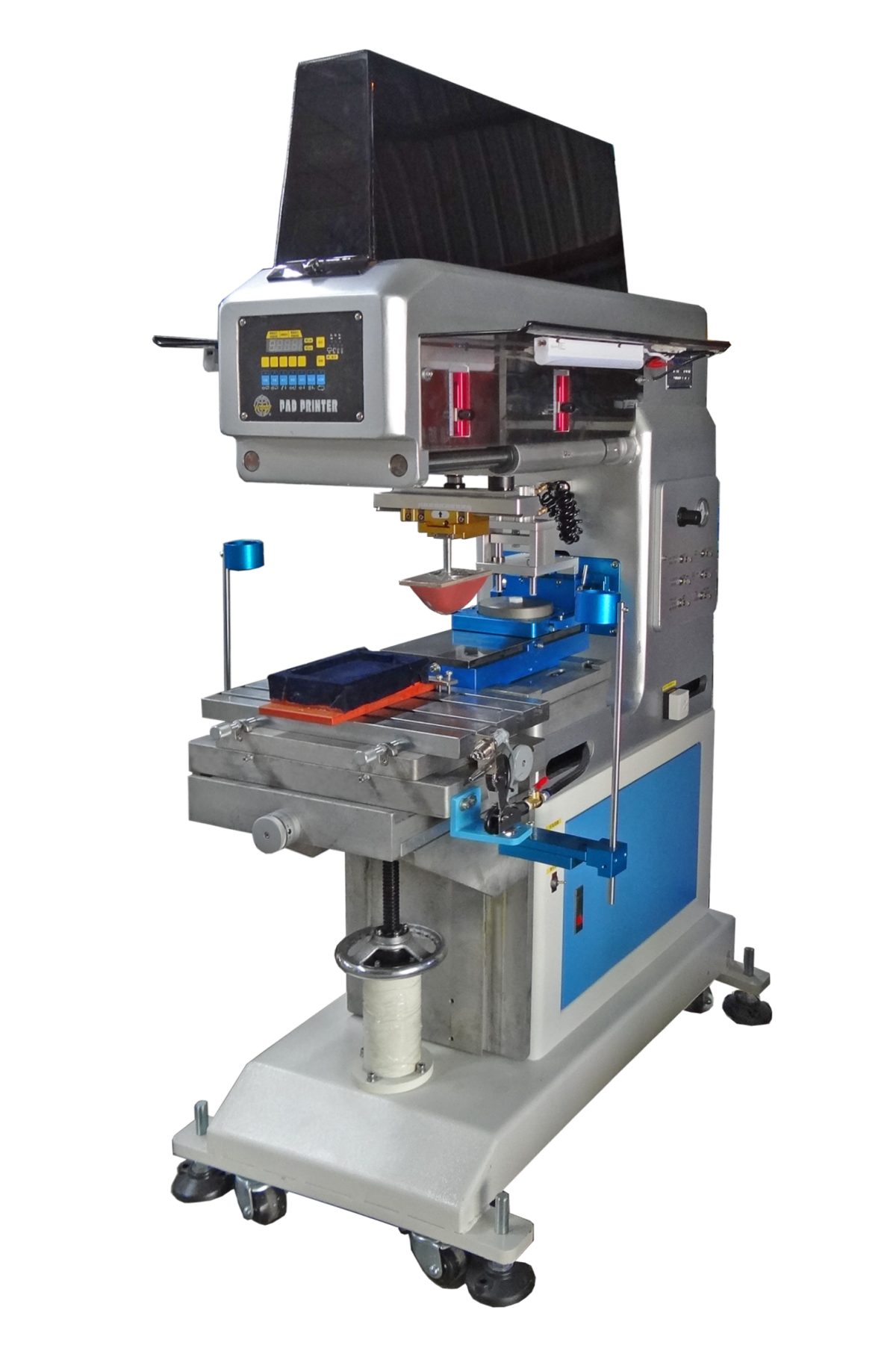

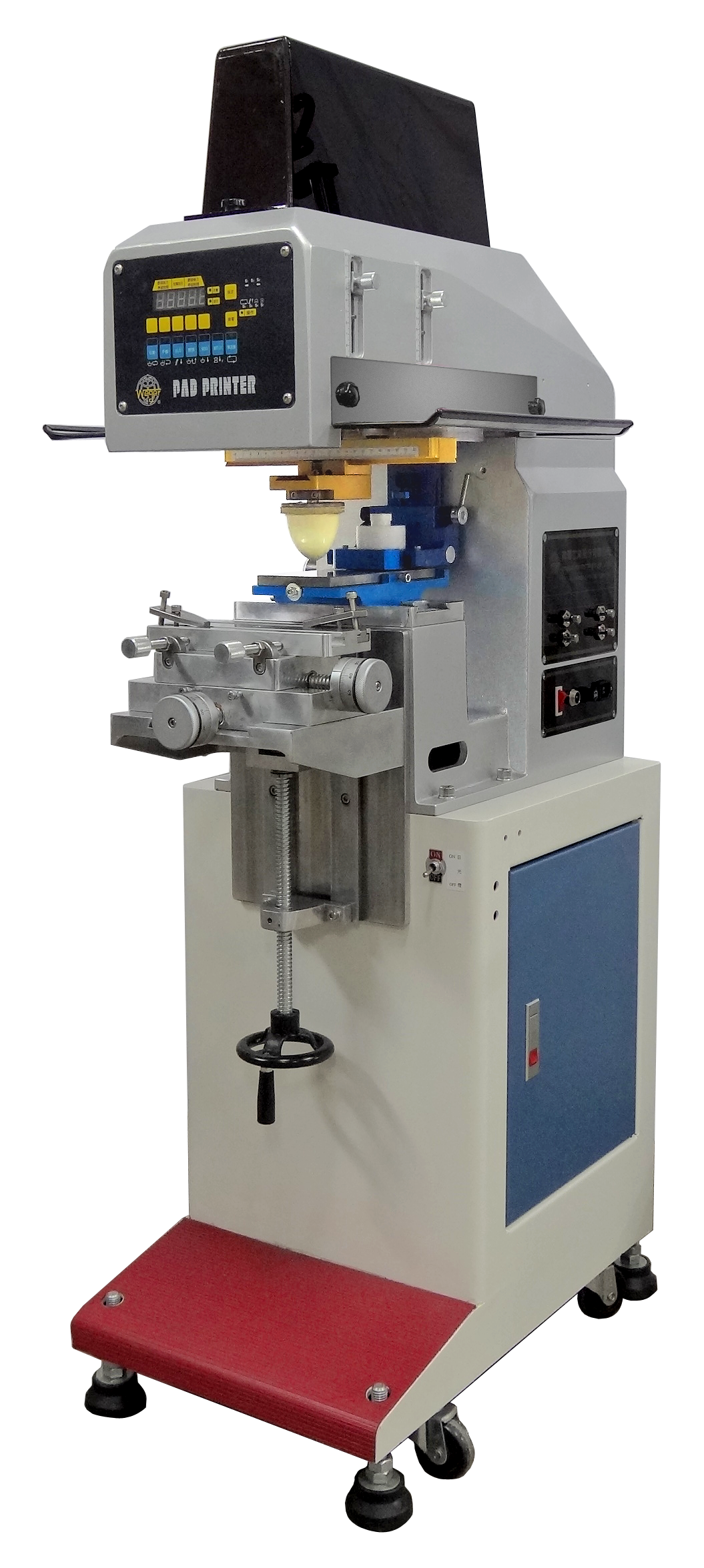

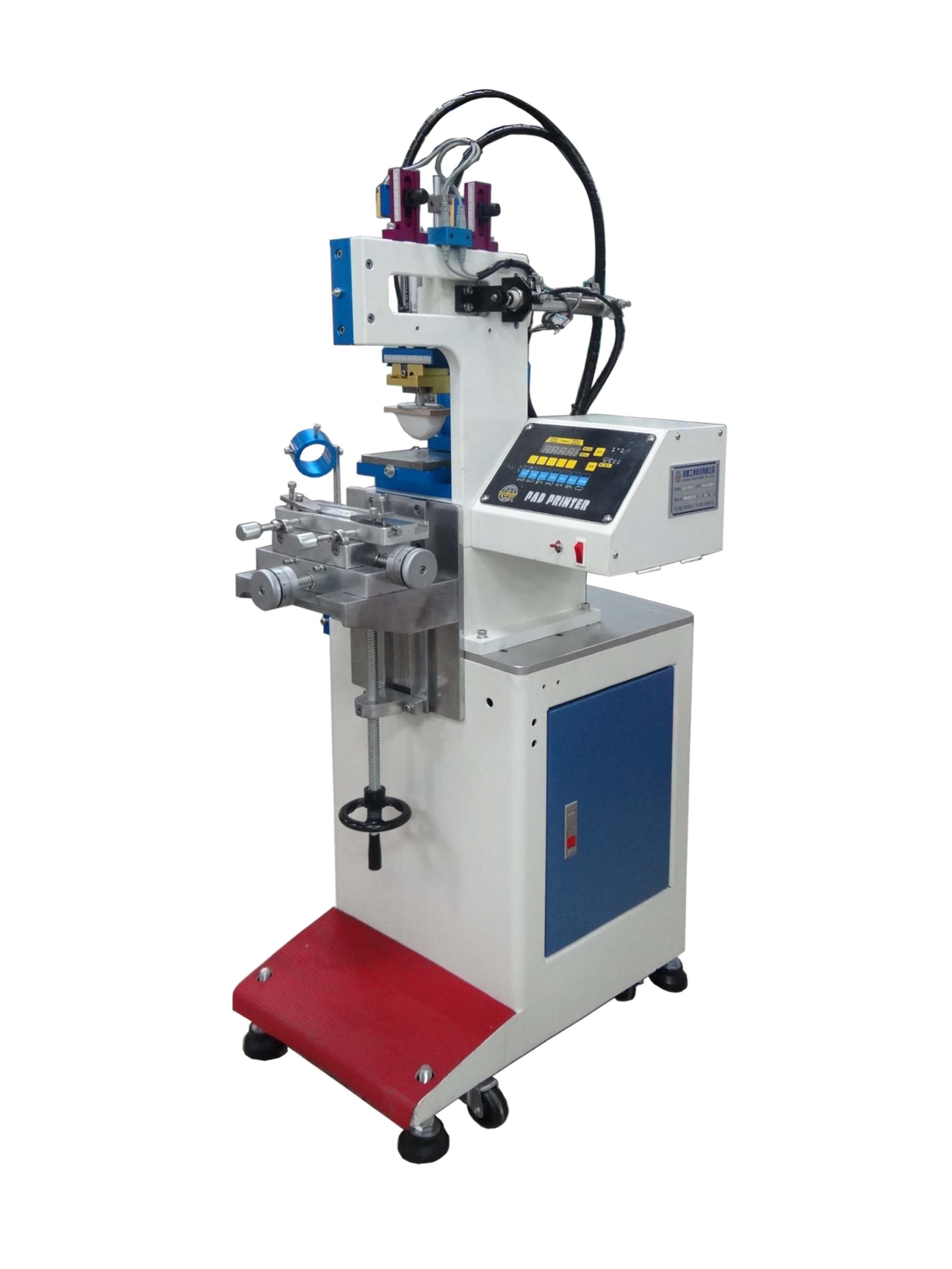

Single color ink-cup pad printer

WE-241/251/261/231

Single color ink-cup pad printer

Sealed Ink-cup

WE-241/251/261/231

Applicable for

  • Suitable for toys, stationeries, decorations, electronics, plastics, lighters, metal, semi-products, ceramic, porcelains, glass and others
Add to inquiry list
Inquiry Form

Product Features



WE-241 WE-251 WE-251(CE)  WE-261 WE-231








Option items

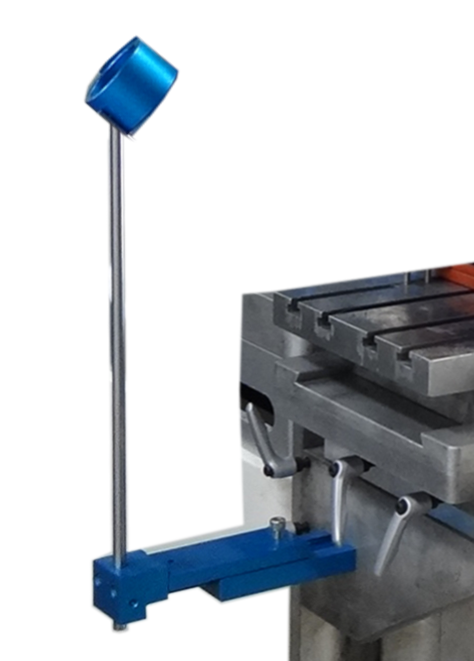

Hair dryer rack

It can be fixed on both sides of the machine. Use a common household hair dryer placed on the hair dryer rack. The hair dryer can be adjusted to aim at the Pad or the printing position of the printed matter to speed up the drying of the printing ink.

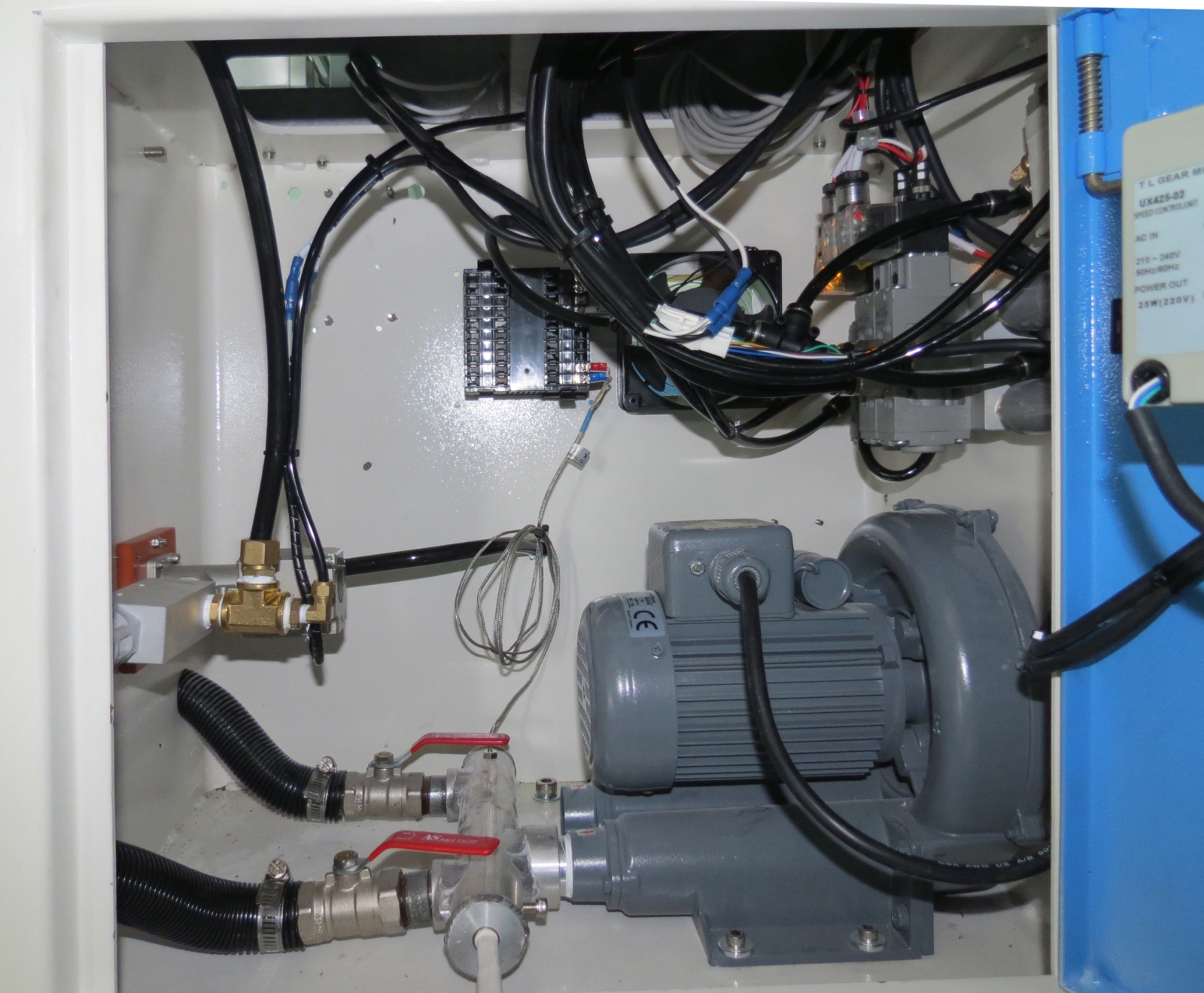

Hot air device:

One blower, two sets of electric heating rods, one set of electronic temperature controller, and two sets of hot air pipes. The hot air temperature can be controlled and aimed at the pad and the printed material to speed up the ink drying.

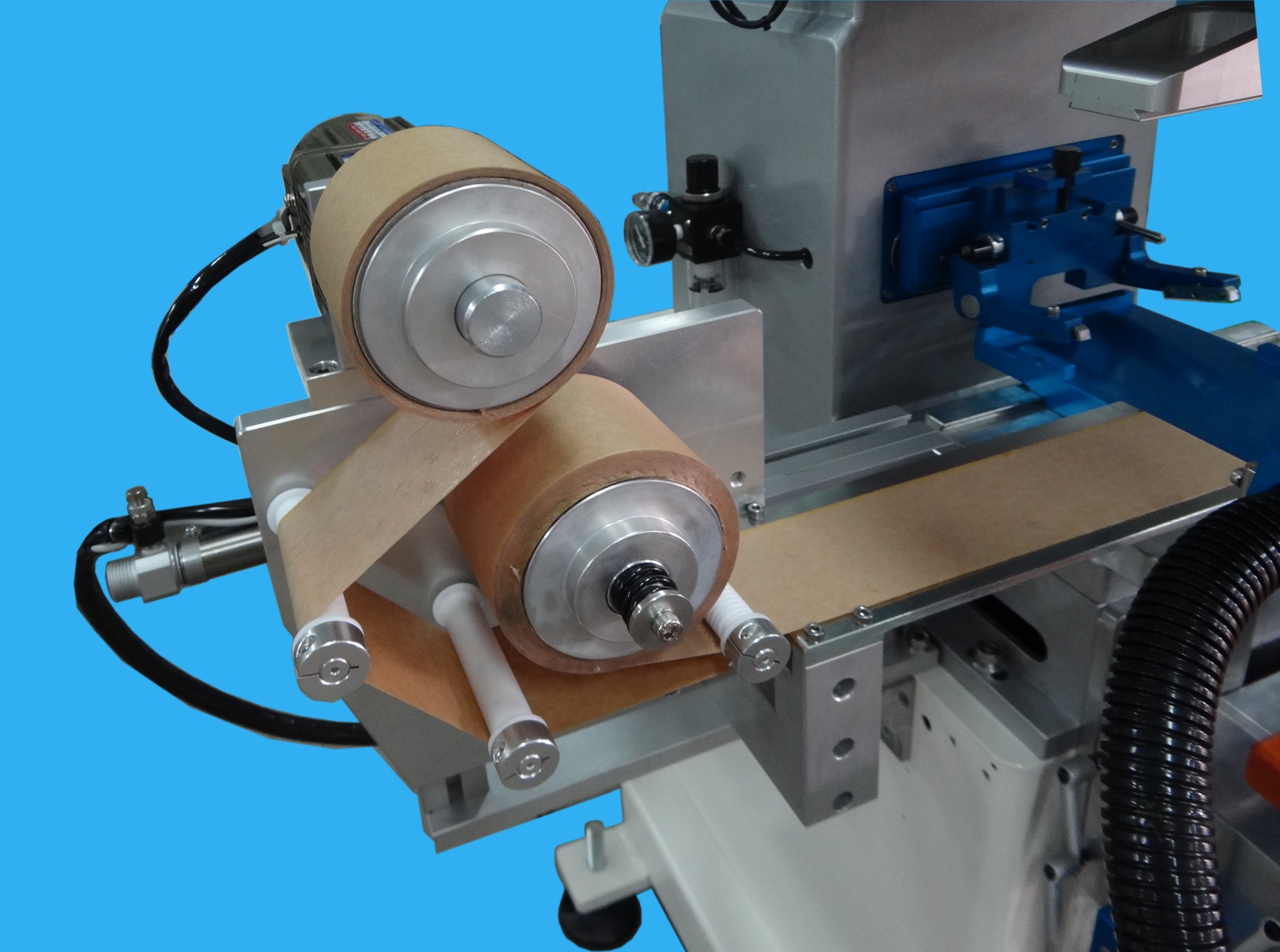

Ink removal device:

When cleaning the pad, you can set the number of times to print and remove ink once. When removing ink, the type table will automatically move under the pad, and the pad will automatically press down to remove the residual ink or dust on the pad.

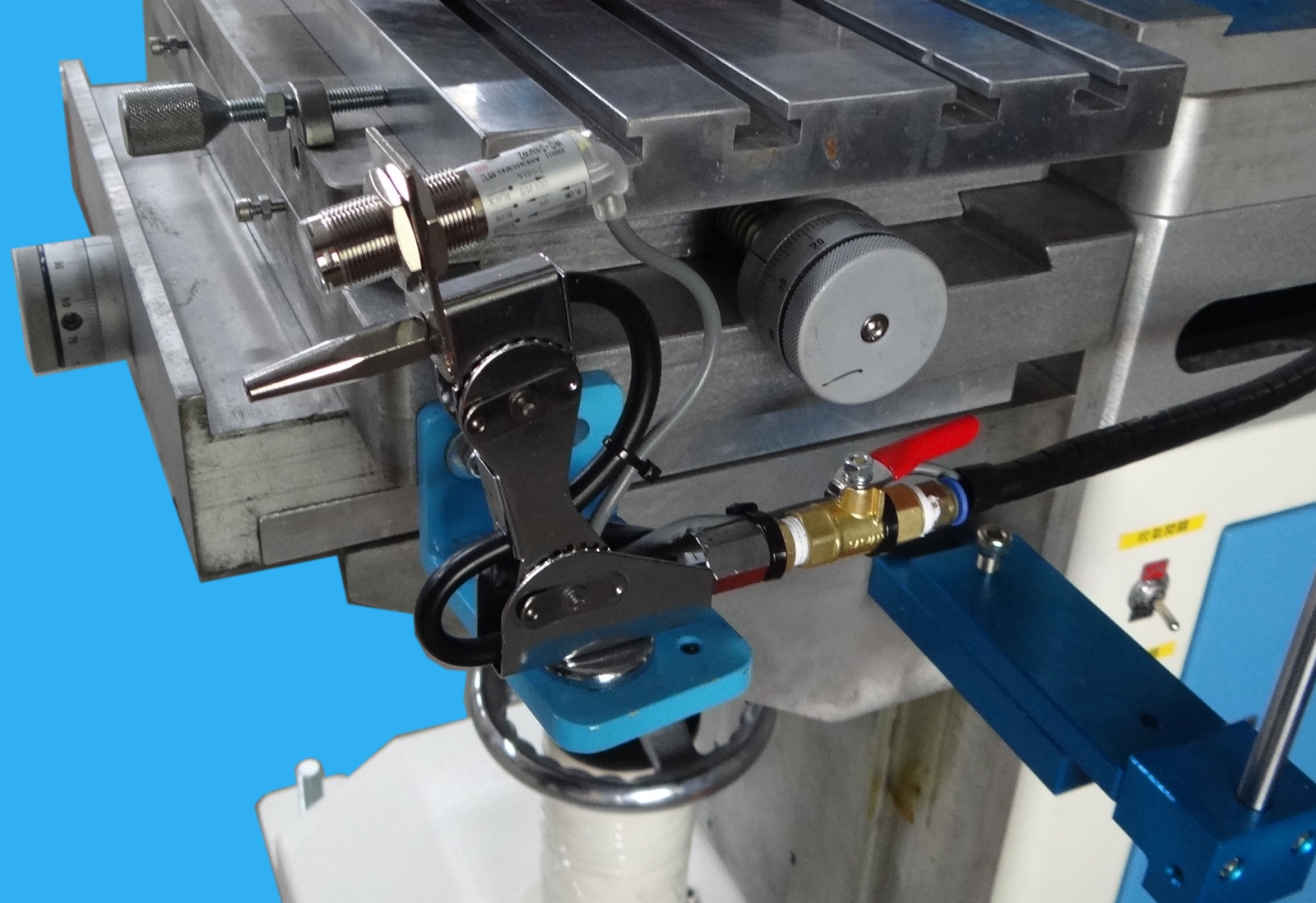

Dust removal device:

Before printing on the object, this device can be used to blow off the dust on the object. When the object approaches the dust removal device, the air jet starts automatically and stops when it moves away.

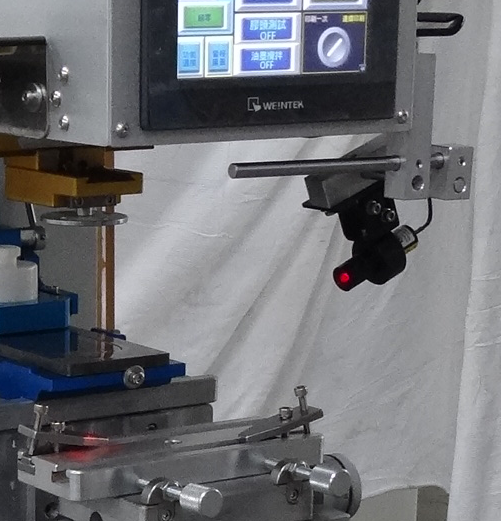

Crosshair Laser Marker:

To assist in alignment, the object's reference point is manually aligned with the cross laser line and fixed before printing.



Model A B C d1 d2 E F g1 g2
WE-241 630 383 1280 85 40 60 0-80 100 200
WE-251 735 383 1430 85 40 80 0-140 80 220
WE-261 980 550 1550 140 60 140 0-220 140 300
WE-231 1160 640 1700 117.5 82.5 170 0-160 240 450



____________________________________________________________________________商品規格__________________



Model WE-241 WE-251 WE-261 WE-231
Color 1
Ink supply  Ink-cup ∮60mm (sealed) Ink-cup ∮60mm (sealed) Ink-cup ∮90mm (sealed) Ink-cup ∮130mm (sealed)
Control panel membrane switch(HMI panel optional)
Steel plate size(mm) 90*200*10 90*200*10 120*250*10 165 *365*12
Max print area ∮50 ∮60 ∮100 ∮150
Pad front-rear stroke 125mm 125mm 200mm 300mm
Pad up-down stroke 50mm 50mm 80mm 125mm
Slide table stroke
Positioning accuracy (+/-0.02)
Working table size (mm) 100*200 80*220 140*300 200*360
Working table up-down 100 150mm 200mm 150mm
Rotary stations
Hot air dryer
Ink removal device
Output/Hr 900-1200 900-1200 600-900 600-900
power d(choose one)
(5A for hot air device)
1∮ 110V或 220V 3A 50~60Hz
Air pressure (kg/cm2) 6
Pad pressurize  kgf 48 75 186 301
Air consumption (L/Min) 7 9 15 36
Dimension L*W*H (mm) 630 x 530 x 1280  750 x 420 x 1,400  1,000 x 600 x 1,550  1,600 x 700 x 1,700
Net WT(kg) 100 150 250 400
CE certification option No Yes No No



Product Specification

Model WE-241
Color 1
Ink supply ink cup ∮60mm
Control panel HMI touch panel
Steel plate size 90 x 200 (mm)
Max Printing Area ∮40mm
Pad front and rear stroke 125mm
Pad up and down stroke 50mm
Output / Hour 900 ~ 1,200
Dimension (L x W x H) 630 x 530 x 1,280 (mm)
Net WT 100kg
