Ink Drying Equipment

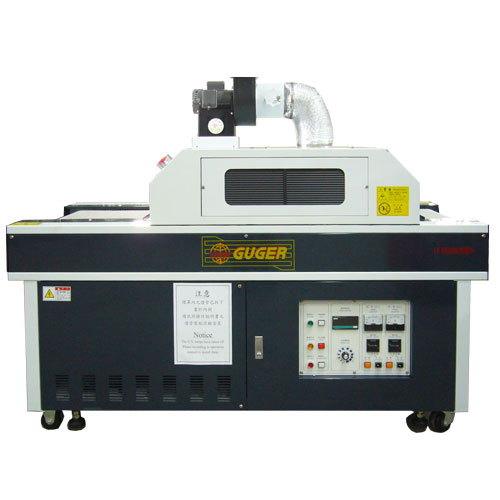

UV Dryer

Two sets of UV lamps, powerful exhaust and heat dissipation, multiple power levels to choose from, adjustable gate height, adjustable conveyor belt speed

UV322

Ink Drying Equipment

UV Dryer

Two sets of UV lamps, powerful exhaust and heat dissipation, multiple power levels to choose from, adjustable gate height, adjustable conveyor belt speed

UV322

Applicable for

Applicable to: Screen printing, lithography, letterpress printing, self-adhesive labels, metal, glass, acrylic, circuit boards, paper, Tetoron, soft and hard PC, PVC, ABS, PS, etc. printing and glazing.

Add to inquiry list
Inquiry Form

Product Features

Power used: 10 KVA
Lamp tube: 3.2/2
Effective irradiation width: 350 (mm)
Conveyor web width: 400 (mm)
Web height from ground: 770 + 50 (mm)
Conveyor speed: 4 ~ 20 M/min
Dimensions (length x width x height): 1,756 x 750 x 1,350 (mm)

Product features:
The light source system uses a developed halide metal lamp with high and stable UV energy. It is used for ink drying and hardening, and its hardening speed is extremely fast.
The safety device includes leakage circuit breaker, motor overload protection, over-temperature protection, abnormal emergency switch and control circuit fuse.
It has a wide range of uses. The function can be selected according to the product characteristics, and the irradiation distance can also be appropriately adjusted according to the product height.
If the product is PVC, PP, PE or PET, etc., because of its extremely weak heat resistance, the drying system can be modified into a high-efficiency cooling mechanism and cold light filtering device to prevent the temperature of the irradiated object from rising and causing deformation.
