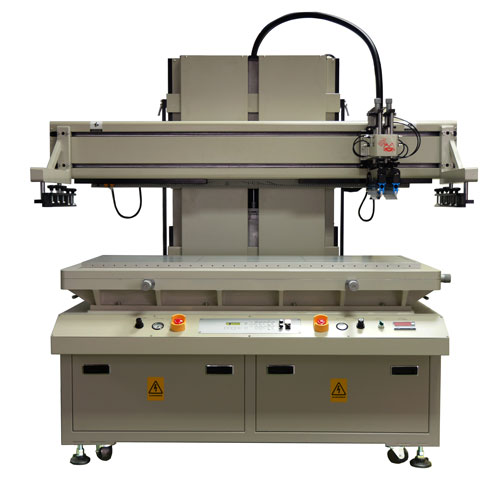

- Precision inverter motor frequency conversion lawsuit electric squeegee printing mechanism.
- Adjustable screen frame fixing seat, suitable for a variety of screen frame sizes to change quickly.
- Precision Japanese-made THK linear slide assembly.
- The combined precision universal honeycomb printing platform is suitable for single and double-sided base plate manufacturing process.
- Adopt German BOSCH and Japanese SMC pneumatic components.
- The motor is used for the left-right coating device.
- The adjustable stencil fixing unit is suitable for
- the fast change of the stencil.
- Using Japan made "THK" linear shuttle.
- Squeegee-up design for the stencil clean.
- Using Germany made "FESTO" or Japan made "SMC"
- pneumatic component
| Max Printing Area | 450*1250mm |
|---|---|
| Dimension (L x W x H) | 2130*1390*1968mm |
| Net WT | 1420kg |
