The mechanical printing method is front and rear running platform, left and right horizontal scraping motor method.
Adopt motor->left and right scraping mechanism.
Adjustable screen frame fixing seat, suitable for various screen frame sizes and quick replacement.
Precision Japanese THK linear slide assembly.
Scraping head lifting plate washing mechanism.
Adopt hydraulic lifting plate, the screen is easy to separate from the workpiece.
Adopt PLC electrical control system, simple and stable operation, not prone to failure; and built-in self-diagnosis function.
It can be freely set to repeat printing 1 to 4 times before the running platform moves back to its original position.
You can choose a suction type or non-suction type working platform.
The working platform is particularly stable and will not move after long-term use.

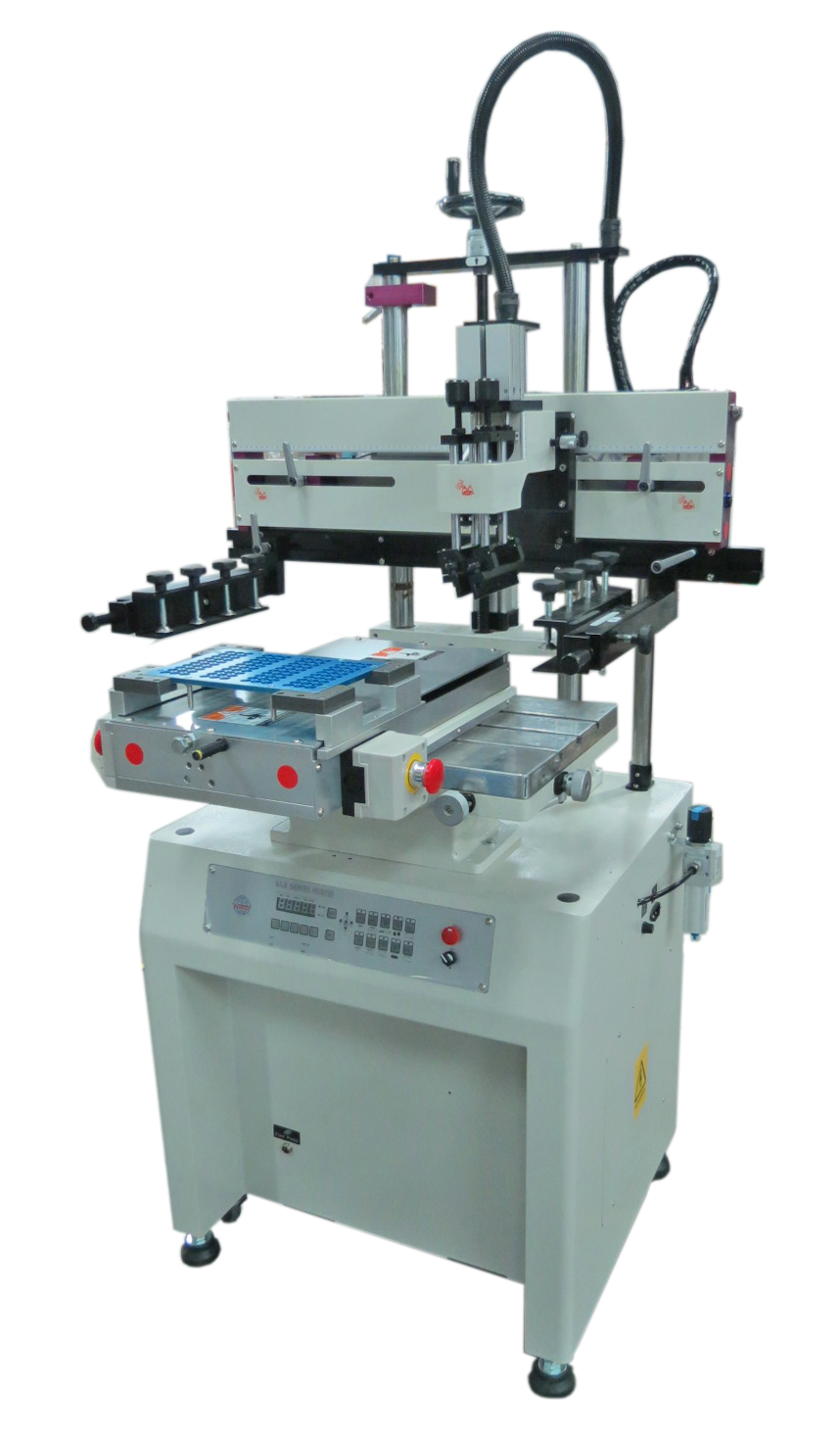

	WE-S500F2 Maximum printing area: 300 x 400 (mm) Output/hour: 600 ~ 1,800 Machine dimensions (length x width x height): 850 x 900 x 1,750 (mm) Net weight: 215 kg

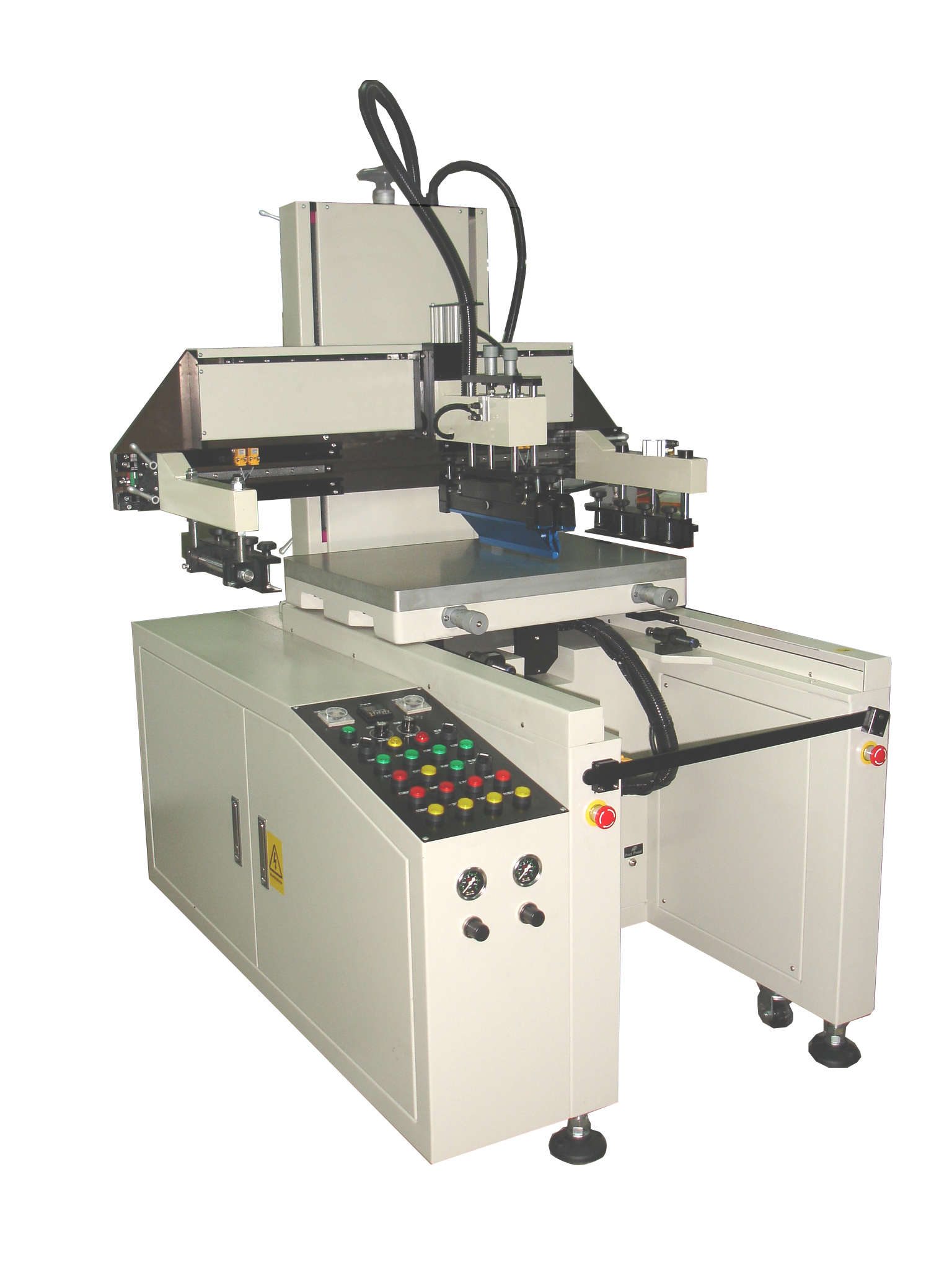

	WE-S650FM WE-S650F2M Maximum printing area 400 x 550mm 400 x 550mm Printing table area 550 x 700mm 550 x 700mm Maximum screen frame size 1,050 x 700mm 1,050 x 700mm Output / hour 500 ~ 800 500 ~ 800 Machine dimensions (length x width x height) 1,500 x 1,060 x 1,800mm 1,500 x 1,060 x 1,800mm Net weight 520 Kg 520 Kg

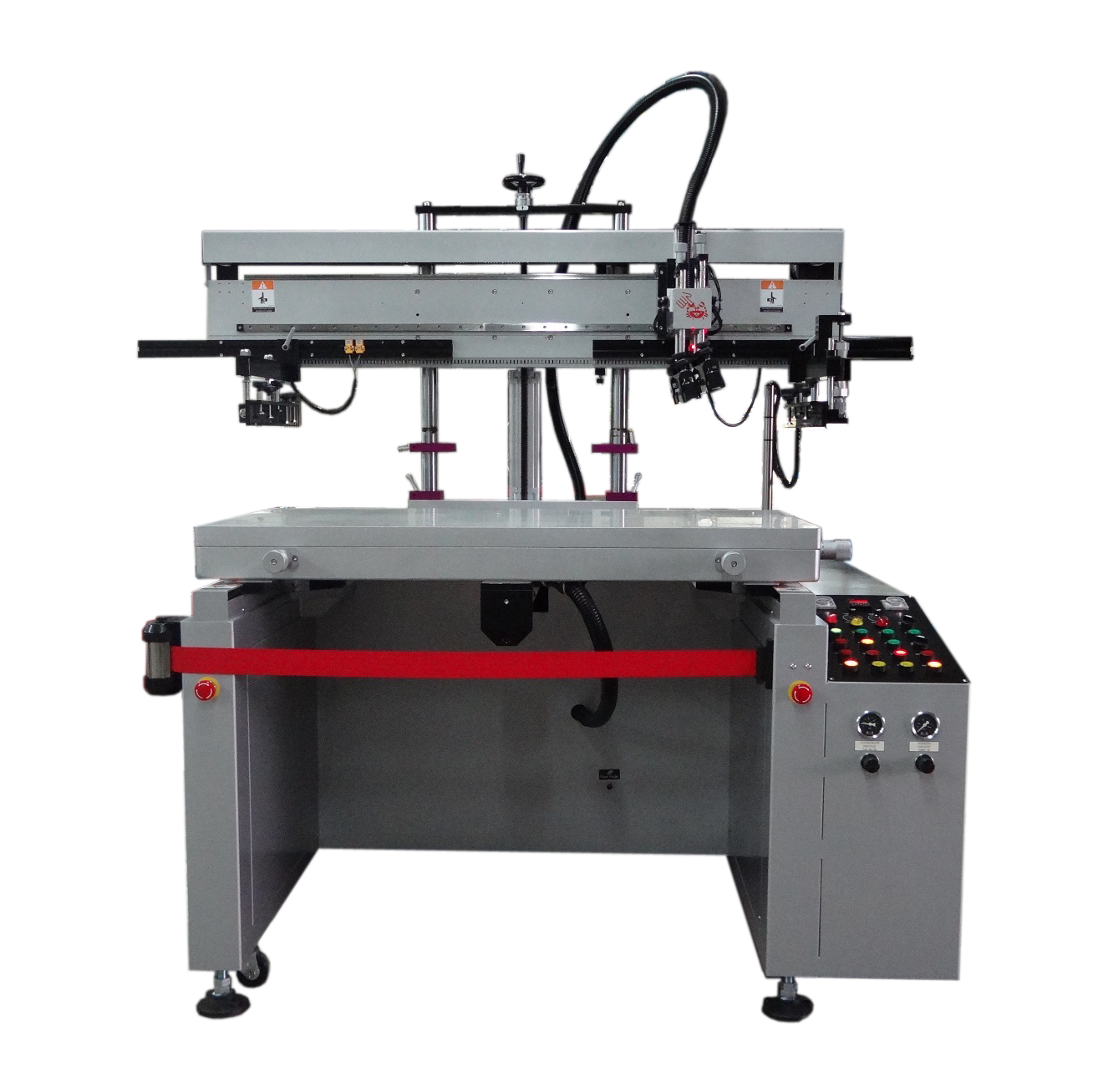

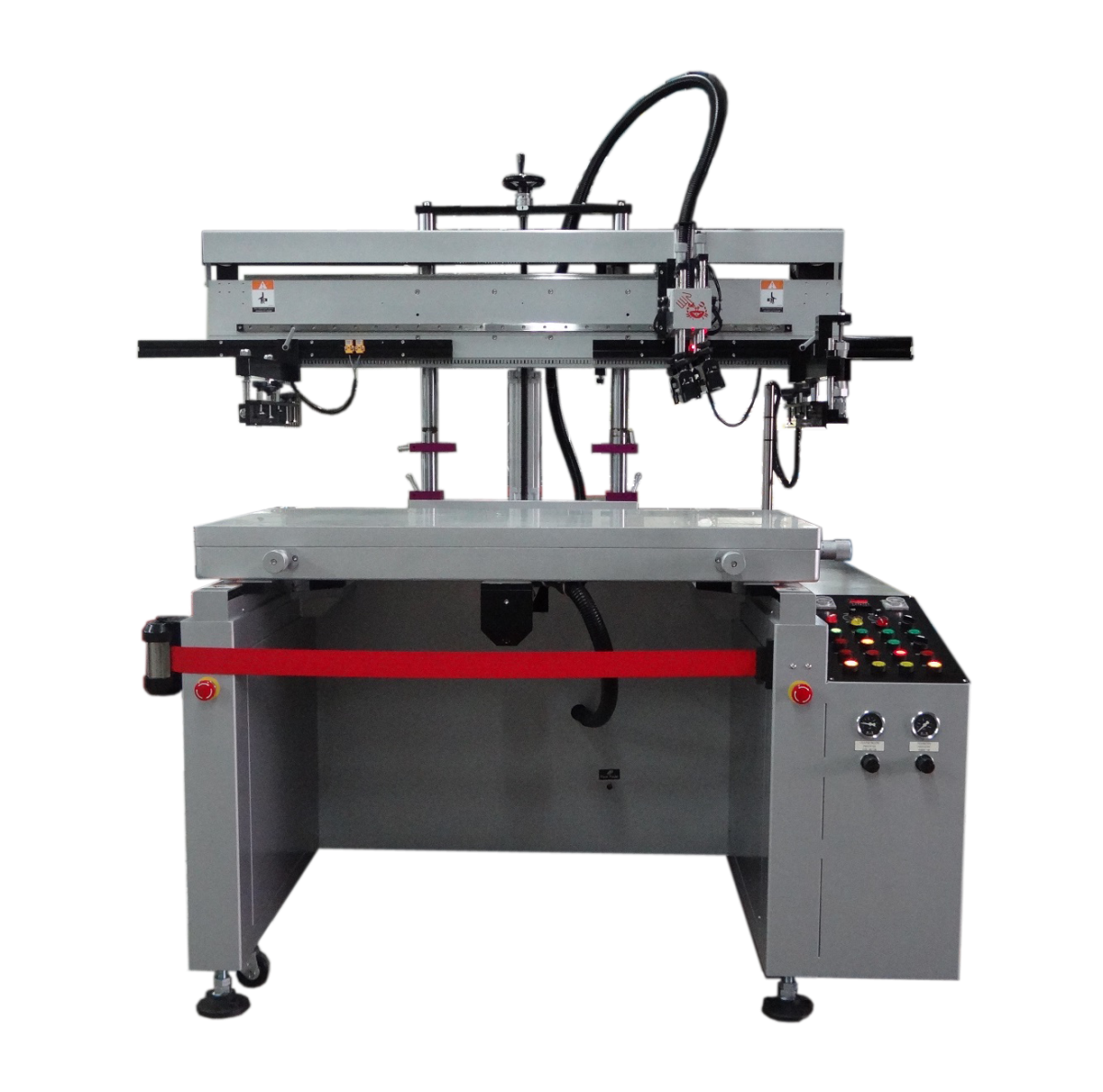

	WE-S1200FM WE-S1200F2M Maximum printing area 400 x 550mm 400 x 550mm Printing table area 550 x 700mm 550 x 700mm Maximum screen frame size 1,050 x 700mm 1,050 x 700mm Output / hour 500 ~ 800 500 ~ 800 Machine dimensions (length x width x height) 1,500 x 1,060 x 1,800mm 1,500 x 1,060 x 1,800mm Net weight 520 Kg 520 Kg Left and right stroke 1200mm Squeegee center margin 320mm Maximum printing area 400 x 1,000mm Maximum screen frame size 600 x 1,200mm Slide table dimensions 600x1200mm Slide table front and rear stroke 500mm Screen up and down stroke 150mm Output/hour 300~600 Machine size (length x width x height) 1,860 x 1,700 x 1,800mm Net weight 520kg

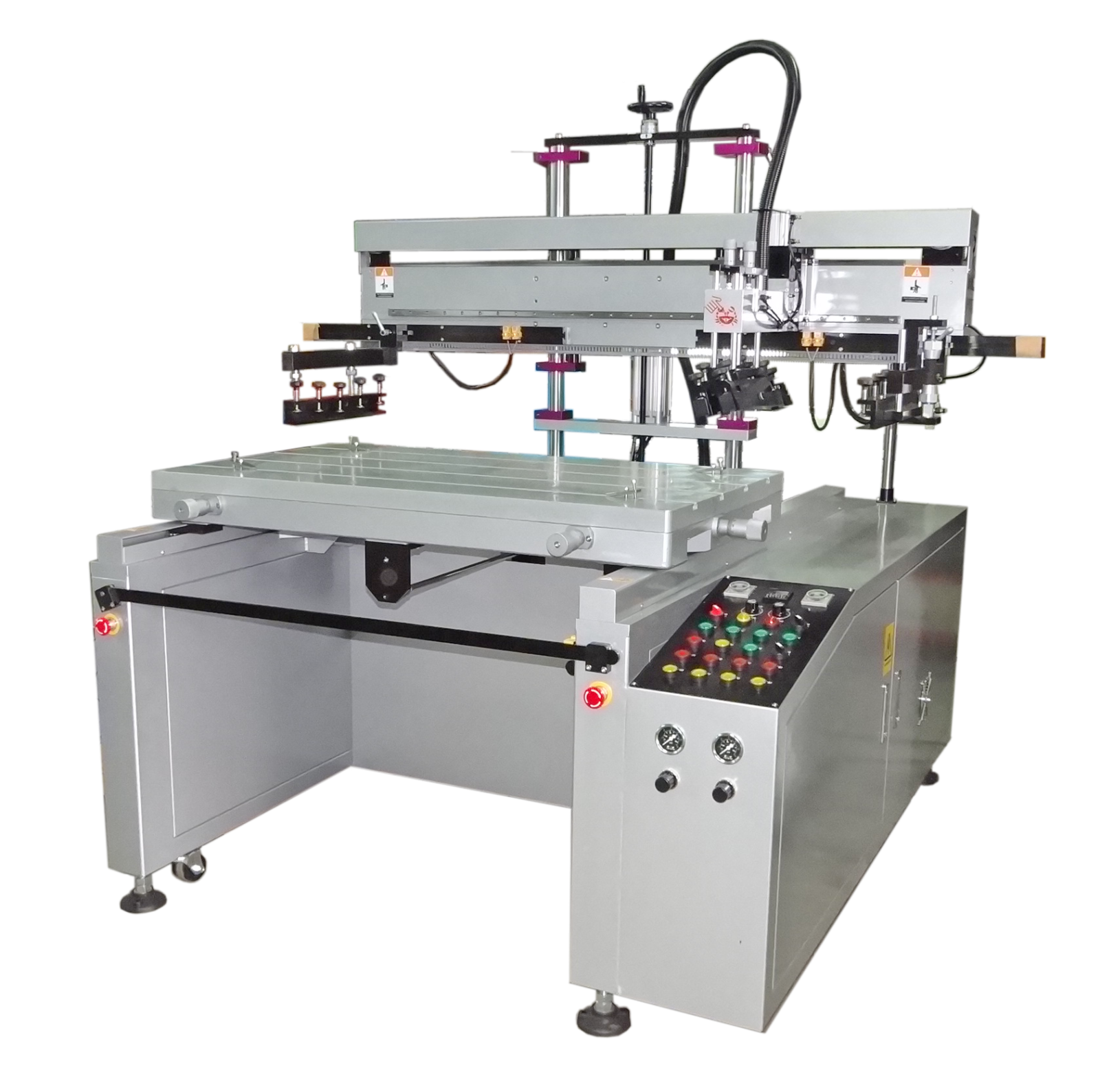

	WE-S1400FM WE-S1400F2M Maximum printing area 600 x 1,200mm 600 x 1,200mm Printing table area 700 x 1,400mm 700 x 1,400mm Maximum screen frame size 1,500 x 900mm 1,500 x 900mm Output / hour 300 ~ 600 300 ~ 600 Machine dimensions (length x width x height) 1,960 x 1,900 x 1,800mm 1,960 x 1,900 x 1,800mm Net weight 650 Kg 650 Kg
