- A durable and trouble free German or Japanese pneumatic components have been used on the machine gives the most superior performance in process of printing.
- The working table can be easily adjusted, as wish, for a precision registration purpose.
- An advantage and optional "Left to Right" printing way to lower ink consumption is designed.
- Pneumatic operated printing head lifting-up design offers a quick and convenient way of screen cleaning, assembling, adjusting as well as other replacement, if required.
- A lifting up and positioning way is designed to easy loading and unloading workpiece when in process of printing.
- Custom-made machine is available and welcome.
- HMI & PLC control system is easy for operation & maintenance.
 |

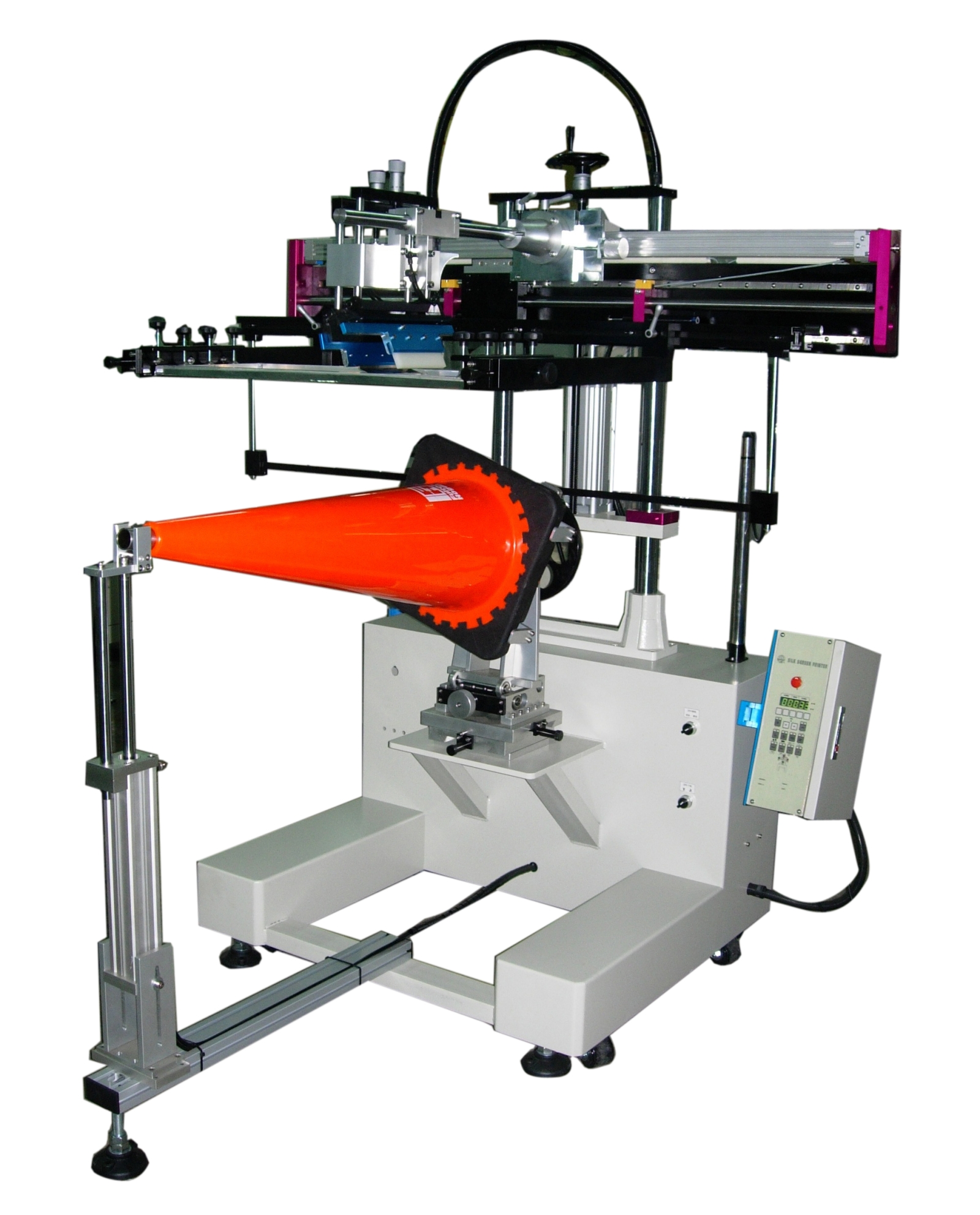

Maximum printing area: Ø300㎜ Hourly production capacity: 300~600pcs Machine size: 1700×1000×2200(㎜) Machine weight: 380㎏ Electricity: 220V 50HZ single phase |
 |

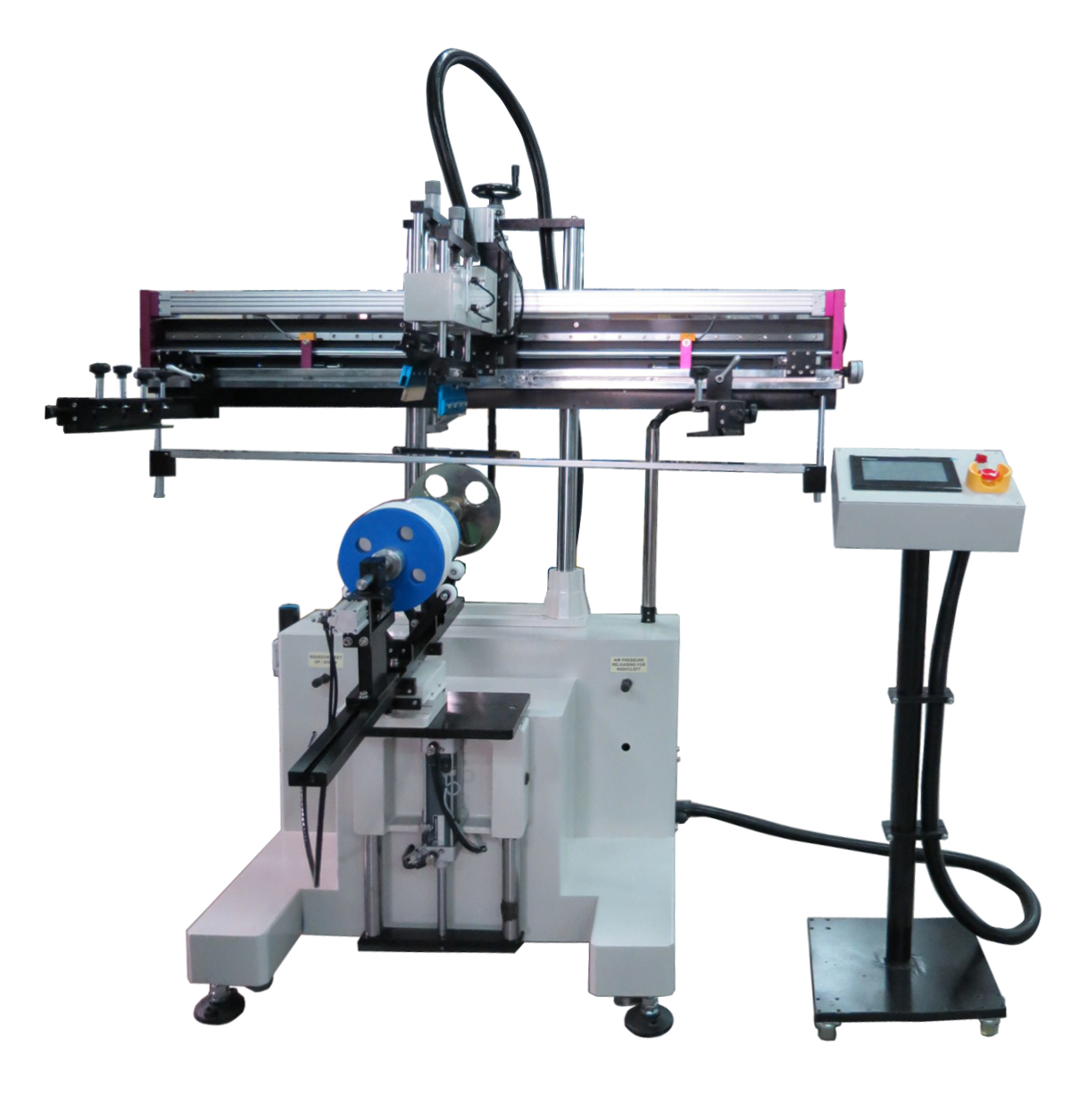

Model: WE-1400C Maximum printing area: 350 x 800 φ320 Output/hour: 300 ~600 Machine dimensions (length x width x height): 1,900 x 1,000 x 2,200 (mm) Net weight: 350 kg |
 |

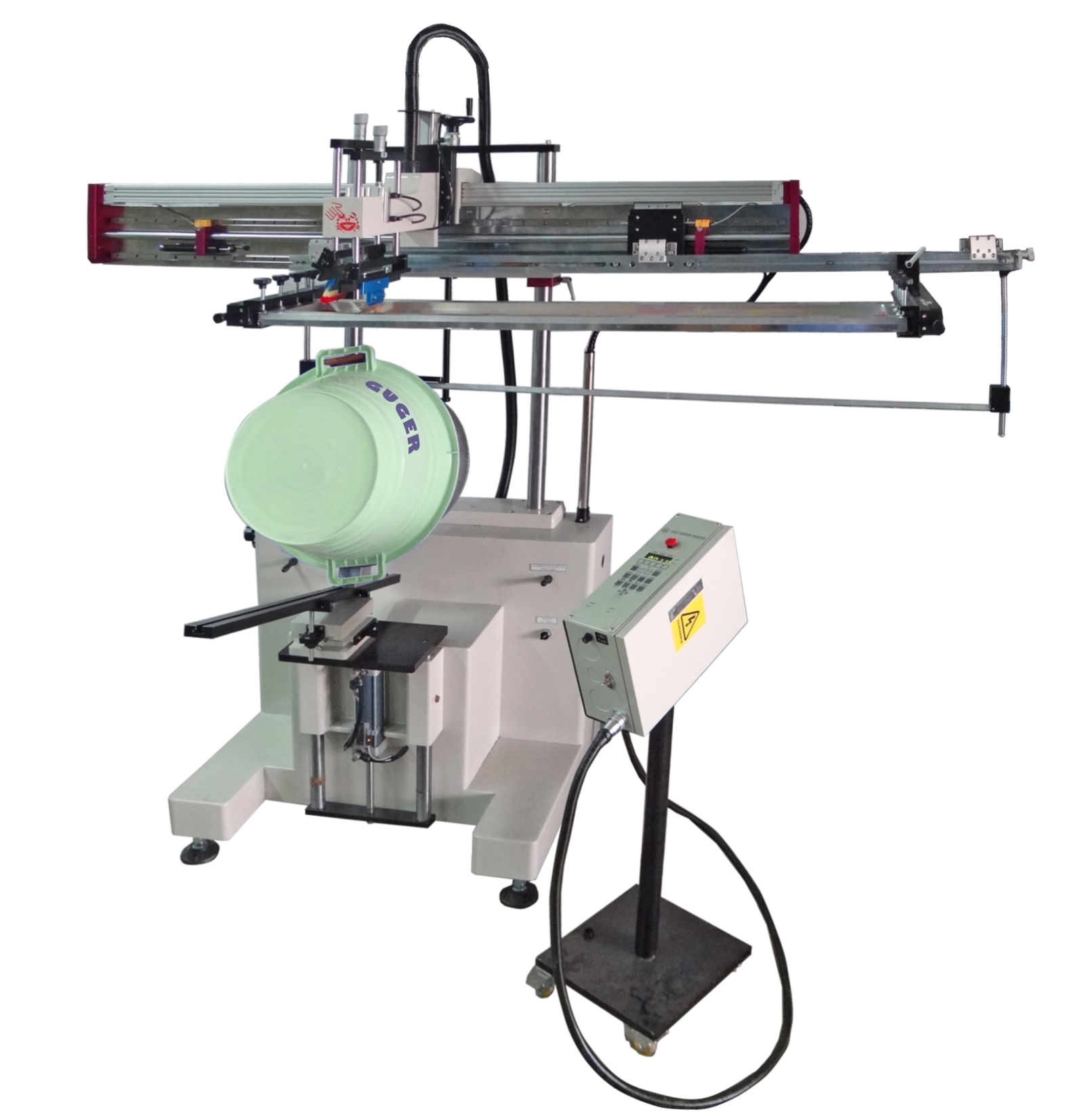

Model: WE-1700C Maximum printing area: 350 x 800 φ400 Output/hour: 300 ~600 Machine dimensions (length x width x height): 2,200 x 1,000 x 2,200 (mm) Net weight: 350 kg |
| Model | WE-1200C | WE-1400C | WE-1700C |
| Color | 1 | ||
| Control panel | membrane switch(HMI panel optional) | ||
| Max stencil | 1100*650mm | 1300*650mm | 1600*650mm |
| Max print area | 700*300mm，∮300mm | 900*350mm，∮320mm | 1100*450mm，∮350mm |
| Stencil up/down stroke | 150mm | ||
| Wroking table up/down | 150mm | ||
| Max print stroke | 900mm | 1100mm | 1400mm |
| Output/Hr | 300~600 | ||
| Dimension L*W*H (mm) | 1560*1200*2160mm | 1760*1200*2160mm | 2060*1200*2160mm |
| Net WT(kg) | 330kg | 350kg | 380kg |
| Print head width | 120mm | ||
| Print head up/down stroke | 50mm | ||
| Squeegee up/down stroke | 50mm | ||
| Rack length | 1370mm | 1570mm | 1870mm |
| print head center | 325mm | ||
| Table | 1000*750*723mm | ||
| Diameter of up/down axis of screen | 50mm | ||
| input power | 單相 AC110V或220V 5A 50~60Hz | ||
| input air | 6kg/cm2 | ||
| Height of operating panel from ground | 1020mm | ||
| Distance from the center of the unraised fixture to the ground | 1012mm | ||
