- Using Taiwan made pneumatic components and imported ink-cup, stable quality, save the cost of ink & solvent, no scent, no smell, beauty printing color, low pollution and increase the production capacity more than 20%.
- Microprocessor controlled. An advanced and unique four times "PAUSE" function for better printing quality have been designed to enable users who may stop or continue the operation in process of printing, easy to maintain.
- The extra light mounted on the machine gives clear printing.
- The ink cup is available with steel or iron plate.
- Optional CE products, with additional emergency stop button, protective sliding doors on both sides of the machine, and safety lock on the air pressure regulator, comply with European production regulations.
| WE-231 | WE-231TW with Hot air and Ink removal device |
 |  |
Option items
|
Hair dryer rack It can be fixed on both sides of the machine. Use a common household hair dryer placed on the hair dryer rack. The hair dryer can be adjusted to aim at the Pad or the printing position of the printed matter to speed up the drying of the printing ink. |
Hot air device: One blower, two sets of electric heating rods, one set of electronic temperature controller, and two sets of hot air pipes. The hot air temperature can be controlled and aimed at the pad and the printed material to speed up the ink drying. |
Ink removal device: When cleaning the pad, you can set the number of times to print and remove ink once. When removing ink, the type table will automatically move under the pad, and the pad will automatically press down to remove the residual ink or dust on the pad. |
Dust removal device: Before printing on the object, this device can be used to blow off the dust on the object. When the object approaches the dust removal device, the air jet starts automatically and stops when it moves away. |
Crosshair Laser Marker: To assist in alignment, the object's reference point is manually aligned with the cross laser line and fixed before printing. |
 |
 |
 |
 |
 |
_________________Product specification_________________

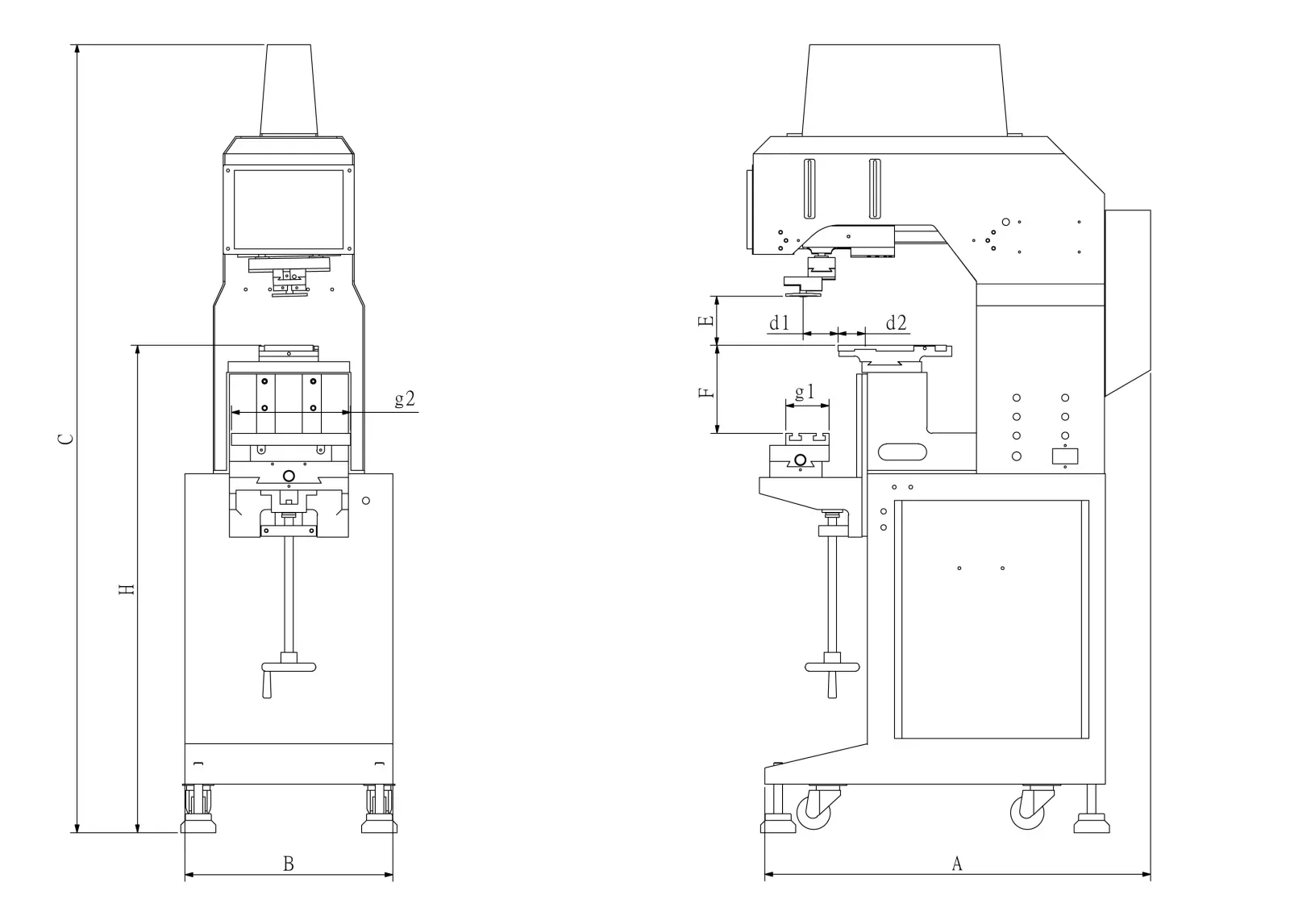

| Model | A | B | C | d1 | d2 | E | F | g1 | g2 |
| WE-241 | 630 | 383 | 1280 | 85 | 40 | 60 | 0-80 | 100 | 200 |
| WE-251 | 735 | 383 | 1430 | 85 | 40 | 80 | 0-140 | 80 | 220 |
| WE-261 | 980 | 550 | 1550 | 140 | 60 | 140 | 0-220 | 140 | 300 |
| WE-231 | 1160 | 640 | 1700 | 217.5 | 82.5 | 170 | 0-160 | 240 | 450 |
| Model | WE-231 | WE-231TW |
| Color | 1 | 1 |
| Ink supply | Ink-cup ∮90mm (sealed) | Ink-cup ∮130mm (sealed) |
| Control panel | membrane switch(HMI panel optional) | membrane switch(HMI panel optional) |
| Steel plate size(mm) | 165 *365*12 | 165 *365*12 |
| Max print area | ∮110 | ∮110 |
| Pad front-rear stroke | 300mm | 300mm |
| Pad up-down stroke | 125mm | 125mm |
| Slide table stroke | − | − |
| Positioning accuracy | (+/-0.02) | (+/-0.02) |
| Working table size (mm) | 200*360 | 200*360 |
| Working table up-down | 150mm | 150mm |
| Rotary stations | − | − |
| Hot air dryer | − | O |
| Ink removal device | − | O |
| Output/Hr | 600-900 | 600-900 |
| Power d(choose one) (5A for hot air device) | 1∮ 110V或 220V 3A 50~60Hz | 1∮ 110V或 220V 3A 50~60Hz |
| Air pressure (kg/cm2) | 6 | 6 |
| Pad pressurize kgf | 186 | 301 |
| Air consumption (L/Min) | 15 | 36 |
| Dimension L*W*H (mm) | 1,160 x 640 x 1,700 | 1,160 x 900 x 1,700 |
| Net WT(kg) | 400 | 450 |
