T-type screen printer

WE-F2 系列

T-type screen printer

T-Slot flat table, without vacuum , foot switch,

WE-F2 系列

Applicable for

"T" type slot working table screen printer suitable for the frame, key pad and key board of computer, stereo, telephone, mobile phone and other electric applicance's frame, toys, sporting goods, camera, plastics, PU foaming products and surfing board, etc.

Add to inquiry list
Inquiry Form

Product Features

The control system adopts a digital microcomputer control system, which is easy to operate and contains a fault display system for easier maintenance.
The pneumatic parts are made of standard parts in Taiwan, and the high function and low fault make the machine performance more superior.
The transmission system adopts Taiwanese bearings and shafts, which are wear-resistant and have a long service life.
The working platform can be fine-tuned in front and back, left and right, and inclination. It is easy to operate and can easily complete accurate color registration work.
The printing starting point can be selected on the left, and the ink-filling printing method is adopted to make the printing ink film thickness thinner.

  WE-250F2
Maximum printing area: 100 x 150 (mm)
Output/hour: 600 ~ 1,800
Machine dimensions (length x width x height): 650 x 500 x 1,600 (mm)
Net weight: 175 kg

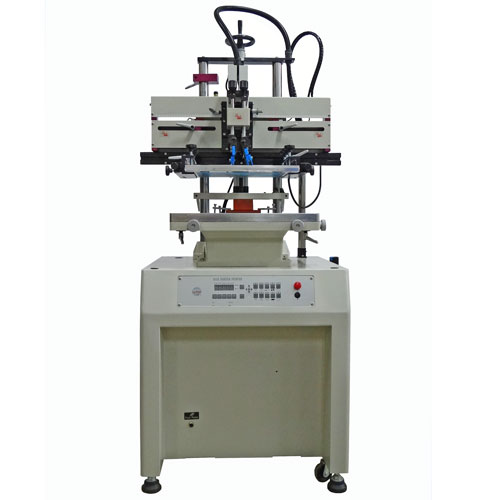

Model: WE-400F2
Maximum printing area: 250 x 300 (mm)
Output/hour: 600 ~ 1,800
Machine dimensions (length x width x height): 700 x 750 x 1,650 (mm)
Net weight: 205 kg



Model: WE-500F2
Maximum printing area: 300 x 400 (mm)
Output/hour: 600 ~ 1,800
Machine dimensions (length x width x height): 950 x 950 x 1,650 (mm)
Net weight: 215 kg
