Screen Printing Machine

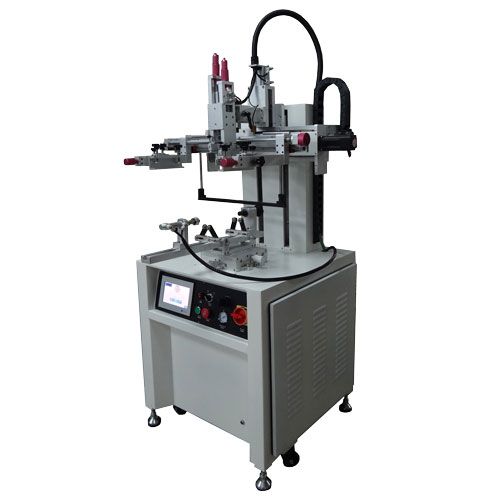

High Precision Servo Motor Silk Screen Printer

WE-400ES

Screen Printing Machine

High Precision Servo Motor Silk Screen Printer

WE-400ES

Applicable for

Suitable for any cylinderal, oval, round and cone surface objects such as, shampoo bottles, milk bottles, cosmetic bottles, drums, cups, pens, cans and other containers, etc.

Add to inquiry list

Inquiry Form

Product Features

Print Head up/down with linear slide. Squeegee print accurately.
Stencil clamper with linear slide, for easy adjusting.
With jogging, manual, auto functions , easy to change and operating.
PLC HMI control, touch panel setting ,up-down, left-right, multi-position remember. The stroke and printing height are set on the panel.
Vertical structure. L&R servo. Up-down with crank servo, Using numerous linear slides.
Design with servo motor for stable, fast, precision.
Worktable easy adjusting and stable. setting quickly.
The emergency stops control system for operator safe

Product Specification

Max Printing Area	H250×L280mm
Max object diameter: bottle	∮10mm-∮90mm
Positioning accuracy	＜0.02mm
power	220V 3 phase
Output / Hour	400~1,000pcs
Dimension (L x W x H)	750×850×1,700mm
Net WT	220kg
