Printing pads compatible with pad printing,
screen printing, heat transfer, flame treatment,
UV curing, and other printing machines.

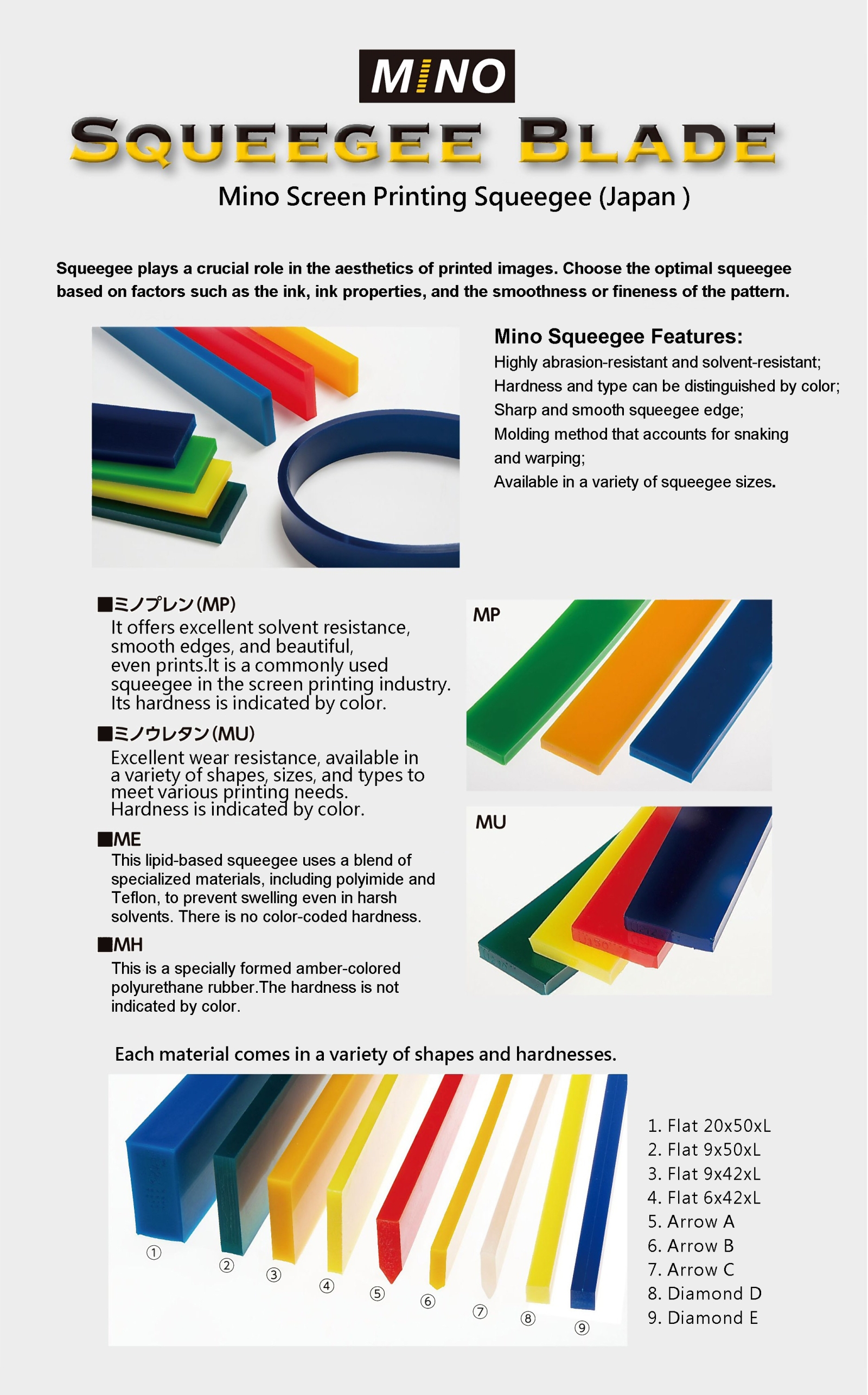

Japanese Mino scraper rubber can meet all the needs of screen printing
Japanese Mino scraper rubber can meet all the needs of screen printing
Applicable for
1. Excellent abrasion and solvent resistance.
2. Type and hardness can be easily identified by color.
3. A wide variety of types and specifications are available.
4. The squeegee edge is sharp for clear printing.
5. Designed to prevent meandering.
6. Utilizing Mino's unique squeegee rubber manufacturing method, consistent printing quality is achieved on both sides of the squeegee.

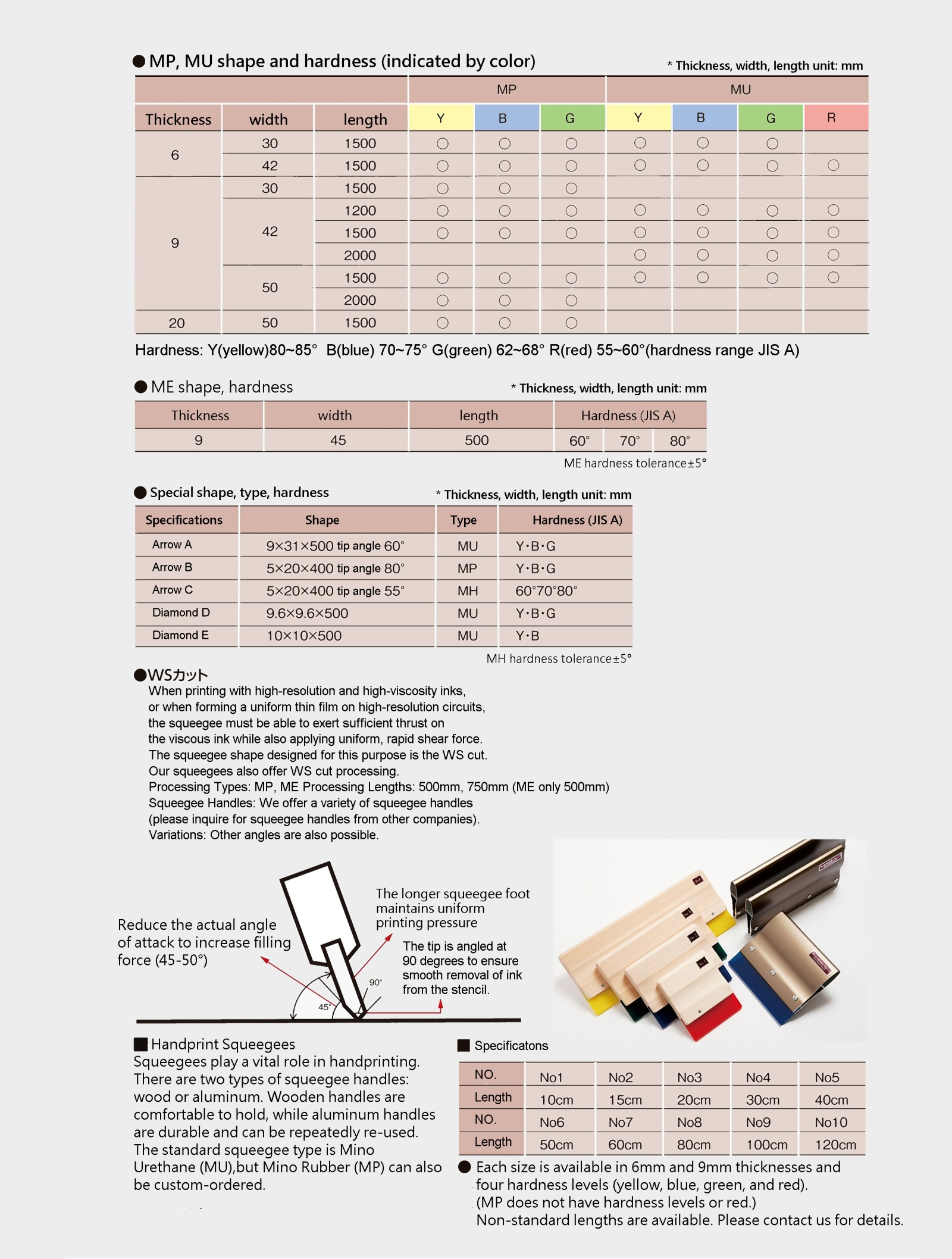

| Mino Polyurethane Squeegee | Excellent wear resistance, available in a variety of shapes and sizes |
| Mino Flat Squeegee | Excellent solvent resistance, smooth edge |
| Hardness | ■ Red (55-60°) ■ Green (62-68°) ■ Blue (70-75°) ■ Yellow (80-85°) |

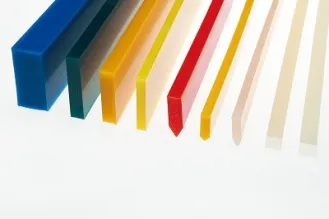

| Shapes | Flat (6, 9mm thickness; 30, 42, 50mm height) Square (9.6×9.6mm, 10×10mm) Sword (four shapes) Flat PCB via filling squeegee (20mm thickness) |
